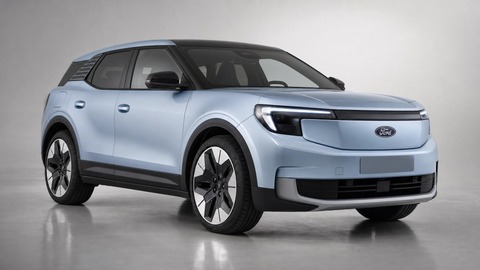

Ford Explorer EV Extended Range RWD Mk1

This is a well-documented issue across the entire MEB platform, including the Ford Explorer. The high-voltage battery sometimes stops charging the small 12V auxiliary battery that powers the car's electronics and startup systems. Symptoms include a 12V battery charge indicator illuminating on the dashboard, progressive failure of electrical functions, inability to shift into drive or reverse, and eventual motor shutdown. Ford has identified a software issue in the SOBDM (State of Charge Monitoring) module and released a customer satisfaction program with a software update as the fix. On the UK Explorer forum, multiple owners report the car draining overnight or within days of parking. One owner experienced the car being completely dead after 48 hours parked. Pre-emptive replacement of the 12V battery with a higher-quality AGM unit costs around €200-300 including coding. If the underlying software bug is not addressed, the problem will recur.

The Ford Explorer uses a VW-derived infotainment platform branded as SYNC Move, featuring a 14.6-inch sliding touchscreen. It has been prone to freezing, black screens, and unexpected reboots since launch. When the screen goes dark, the speedometer, navigation, and backup camera all temporarily disappear. Forum owners report the main screen randomly failing, sometimes preventing changes to heating settings. Ford delivers software updates over the air via Ford Power Up, and later software versions have significantly reduced the frequency of these events. A factory reset or soft reset usually resolves individual freezes. On out-of-warranty cars, a diagnostic session at the dealer may cost €100-300, but the software update itself is typically free.

The MEB platform uses an electric actuator for the charge port flap that was originally designed for fuel filler doors on ICE vehicles. Each charging session holds the flap open for extended periods, exposing the actuator to moisture. Water eventually corrodes the internal mechanism, causing it to stiffen and fail. When stuck, the car cannot be charged. Temporary fixes include pouring warm water over the flap or repeatedly locking and unlocking the car while pressing the flap. Permanent repair requires replacing the actuator assembly at a cost of €150-450. This issue affects roughly 15-25% of MEB cars over their ownership life and is more common in wet, cold climates.

The Explorer offers an optional R744 (CO2) heat pump system (standard on Premium trim, €1,050 option on lower trims). The R744 system operates at roughly ten times the pressure of conventional R1234YF refrigerant, which makes leaks and compressor failures more consequential. When the heat pump fails, the car falls back to resistive heating from the battery, and owners report range dropping by up to 100 miles in winter (one Explorer forum owner observed a 25-33% seasonal range reduction with a functioning heat pump; without it, this worsens significantly). Common failure points include the Sanden-supplied compressor, expansion valve, and connection seals. Replacement at a Ford dealer costs €1,500-2,500 depending on the component. Independent EV specialists with R744 service equipment (which itself costs around €2,000) may charge €800-1,500. Failures typically appear after 2-4 years of use.

The onboard charger and DC-DC converter are an integrated unit on MEB cars, manufactured by Robert Bosch in Hungary. In early 2025, Volkswagen recalled nearly 14,000 MEB vehicles (VW ID.4 and Audi Q4 e-tron, 2024-2025 models) after discovering that insufficient protective coating on the circuit board allowed condensation to cause electromigration, preventing the 12V battery from charging even when the main battery was full. While the recall specifically named VW and Audi models, the same Bosch-supplied component is used in the Ford Explorer. Symptoms include AC charging refusal while DC fast charging still works, or intermittent 12V system failures. Replacement of the unit costs €1,000-3,000 at a dealer. If covered by a recall, repair is at no cost.

The APP310 rear electric drive unit used across all MEB platform vehicles has a documented bearing wear pattern. EV Clinic, a European EV repair specialist, has analysed multiple APP310 units from ID.3, ID.4, and Enyaq vehicles and found consistent bearing degradation. The characteristic symptom is a milling or whining noise at low speeds. In advanced cases, coolant can intrude into the motor housing. Aftermarket repair kits (OEM-spec bearings, seals, and shims) are available from specialists like EV Clinic for around €500 plus labour. Full drive unit replacement through a Ford dealer costs €3,000-4,000. This failure is uncommon on cars under 80,000 km and is more relevant for high-mileage second or third owners.

Ford has recalled 57,920 vehicles across multiple models (including the Explorer) manufactured between August 2018 and October 2024 for a faulty telematics control unit under KBA reference 16563R. When the TCU fails, the legally required eCall emergency system stops functioning, and the FordPass app loses all remote vehicle access (lock/unlock, preconditioning, charge status). Explorer forum owners have reported TCU replacements being on back order from Germany, with wait times of several weeks. The fix involves a software update or, in some cases, physical TCU replacement. Under warranty, this is covered at no cost. Out of warranty, the TCU module and dealer labour cost €300-800.
