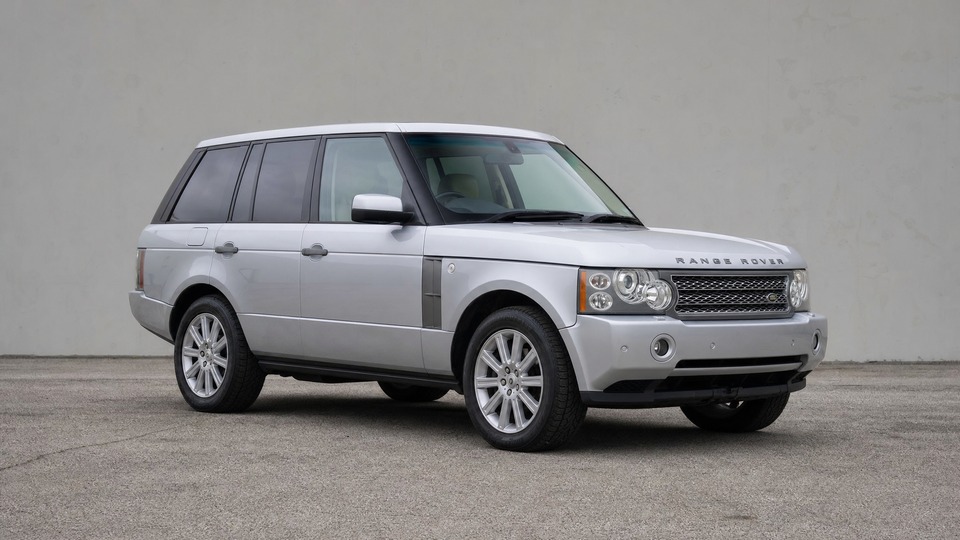

Range Rover TDV8 L322

The L322's air suspension uses electronic air springs at all four corners, a compressor, valve block, and height sensors. The compressor is the most common failure point, typically losing output after 100,000-150,000 km due to worn piston rings and dried-out seals. Symptoms include the car sitting low overnight or slow rise from park. Air springs develop cracks in the rubber bellows, particularly at fold points, causing gradual leaks. The valve block solenoids can stick, preventing proper height adjustment. Rear springs tend to fail before fronts. Aftermarket compressors (AMK type) cost €300-500, while individual air springs range from €150-450 each. Front struts with integrated springs and dampers are significantly more expensive than rear spring-only units. A complete system overhaul (compressor, four springs, valve block) at a specialist runs €2,500-3,500. Pre-2009 cars with the Hitachi-type compressor also need a software update if switching to the AMK replacement unit.

The TDV8 uses twin turbochargers mounted in the valley between the cylinder banks, making access extremely difficult. On the 3.6-litre (2006-2009), turbo actuator sticking is common due to carbon buildup, causing limp mode and loss of power. Full turbo failure typically occurs between 100,000-160,000 km, often signaled by excessive oil smoke, whistling, or boost pressure faults. When one turbo fails, both are typically replaced as the second is usually not far behind. A pair of reconditioned turbos costs €1,000-2,000 for parts, with 8+ hours of specialist labor bringing the total to €2,500-5,000. Checking the intercooler hoses for oil residue can indicate turbo wear before complete failure. The 4.4-litre (2010-2012) received improved turbochargers from Honeywell, partially addressing this concern.

The 3.6 TDV8 uses the ZF 6HP26 six-speed automatic, while the 4.4 TDV8 uses the newer ZF 8HP70 eight-speed. The 6HP26 is the more problematic of the two: its proportional pressure solenoids in the mechatronic unit are known weak points, and the valve body can develop internal wear. Symptoms include delayed gear engagement, jerky shifts, torque converter shudder around 2,000 rpm, and reluctance to shift into higher gears. Most failures occur in cars that never had a gearbox oil change (every 60,000 km is recommended despite Land Rover's 'lifetime fill' claim) or were used for heavy towing. The 8HP70 in the 4.4 is generally more reliable but can still develop mechatronic issues at high mileage. A mechatronics overhaul costs €1,500-2,500, while a full gearbox rebuild runs €3,000-4,500. Use only ZF Lifeguard fluid; conventional Dexron will cause damage.

The coolant crossover pipe runs beneath the intake manifold and uses O-ring seals that degrade over time. When these seals fail, coolant leaks onto the engine or into the valley between the cylinder banks. If undetected, the leak can cause rapid coolant loss and engine overheating, potentially leading to head gasket damage. The leak typically develops between 80,000-120,000 km. Replacement requires significant disassembly to access the pipe. An updated one-piece design pipe is available, replacing the original two-piece unit that was prone to splitting at the middle seam. Specialist repair including parts and labor runs €500-1,500 depending on whether additional cooling system components need attention. Regularly checking coolant level is essential to catch this early.

Both TDV8 variants use EGR valves that gradually clog with carbon deposits, particularly in vehicles used for short trips or urban driving. The EGR cooler, mounted in the valley of the V8, is also prone to failure. Symptoms include rough running, increased emissions, reduced power, and warning lights. EGR failure typically occurs around 120,000-160,000 km. Replacement is labor-intensive due to the engine's tight packaging. Specialist repair costs €600-1,200 depending on whether just the valve or both the valve and cooler need replacing. Regular motorway driving helps reduce carbon buildup, and some owners have EGR valves cleaned at 50,000 km intervals as preventive maintenance.

The rubber intercooler hoses running from the turbochargers to the intake manifold are prone to splitting due to heat exposure and age. This is one of the most common issues on the 3.6 TDV8 specifically. Symptoms include sudden loss of power, black smoke from the exhaust, limp mode, and an 'Engine System Fault' warning on the dashboard. Squeezing the hoses by hand can reveal cracks before they split completely. Both hoses should be replaced together as the second will typically fail soon after the first. Upgraded silicone hoses are available and recommended over standard rubber replacements. Parts and labor run €200-500, making this one of the cheaper TDV8 repairs.

The alternator is mounted between the rear of the engine and the bulkhead, where it receives poor airflow and overheats. This accelerates wear on the internal components and is a well-documented design weakness on the TDV8. Failure typically occurs between 80,000-150,000 km, with symptoms including dimming lights, battery warning messages, and eventually complete charging failure. Many experienced owners treat alternator replacement as preventive maintenance rather than waiting for failure. Replacement including parts and labor costs €400-800 at a specialist. This is a common enough issue that many L322 owners consider it a consumable item rather than an unexpected repair.

The L322's complex electrical architecture includes multiple body control modules, a rear junction box, and extensive wiring looms. Age-related corrosion in connectors, particularly around the rear light clusters and fuel sender unit, causes intermittent faults including rear lamp failures, flickering lights, fuel gauge inaccuracies, and reversing camera blackouts. The rear junction box, located behind the luggage compartment trim, is especially vulnerable to water ingress. Diagnosis can be time-consuming, and repairs range from simple connector cleaning (€100-200) to junction box replacement and wiring loom repair (€800-1,500). A good diagnostic session with a specialist should be part of any pre-purchase inspection.
