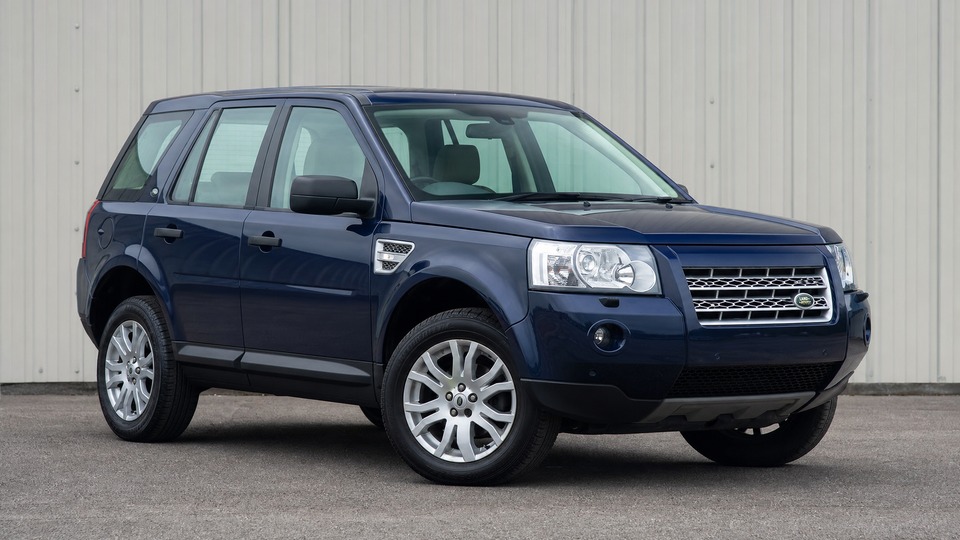

Land Rover Freelander 2.2 TD4 L359

Land Rover issued Technical Service Bulletin LTB00342 acknowledging this as a design fault. The pinion bearing was not rated for the static load it receives, and it wears prematurely, producing a humming or high-pitched whine from the rear of the vehicle. The noise is most noticeable at constant highway speed and typically develops between 50,000 and 120,000 km. Pre-2011 models are most affected; post-2009 production cars received an uprated differential with larger bearings. Specialist reconditioning with heavy-duty upgraded bearings costs around €800-1,100. A complete replacement unit runs €1,200-1,400 fitted. This is one of the most widely reported issues on the Freelander 2 and should be the first thing checked on any used example.

The EGR cooler on the 2.2 TD4 is known to be fragile and can fracture from engine vibration over time. This causes coolant loss that may be difficult to trace, and in some cases coolant mixes with exhaust gases. Symptoms include a gradually dropping coolant level without visible external leaks, white exhaust smoke, or a sweet smell from the engine bay. Land Rover released an upgraded replacement part (LR057662). Repair involves replacing both the EGR cooler and the EGR valve itself, as the labour to access the cooler is extensive. Typical cost is €700-1,100 at an independent specialist, with the majority being labour (6-8 hours). Many owners take the opportunity to replace the EGR valve at the same time for an additional €150-200 in parts.

Like most diesels of this era, the Freelander 2 TD4 is susceptible to DPF clogging when used predominantly for short urban trips. The DPF requires sustained driving at highway speeds (10-15 minutes minimum) to complete its regeneration cycle. Common fault code is P1471 (regeneration not completed). A forced regeneration at a specialist costs around €150-200 and often resolves the issue. If the filter is beyond cleaning, a professional DPF clean costs €300-500. Full replacement runs €1,000-1,500 including the pressure sensor. DPF pipe burn-through is also reported, adding €200-400 for the pipe section. Cars with complete motorway service history rarely have this problem.

The 2.2 TD4 uses a variable geometry turbocharger where the internal vanes can stick from carbon buildup, particularly in vehicles driven gently or exclusively in urban conditions. Symptoms include sudden power loss, EPC warning light, and limp mode. The turbo actuator alone can often be repaired or replaced for €400-600 at a specialist. If the turbo internals are damaged, a full turbo replacement costs €1,200-2,000 including fitting. A related issue is intercooler hose splitting, where the rubber hoses become brittle and crack, causing boost pressure loss and black smoke. This is a much cheaper fix at €100-200 for the hose but can be mistaken for turbo failure. Regular motorway driving helps keep the turbo vanes clean.

The electronic parking brake on the Freelander 2 uses motor-driven actuators at each rear caliper. Over time, corrosion and moisture ingress cause these actuators to seize or malfunction. Symptoms include the parking brake failing to engage or release, grinding noises when applying, or a parking brake warning light. Both actuators typically need replacing together, as once one fails the other usually follows shortly after. Repair requires specialist diagnostic equipment to put the system into service mode. Cost is €800-1,200 for both actuators with fitting at a specialist. This is more common on vehicles that are regularly exposed to salt or wet conditions.

The Freelander 2 uses a Haldex coupling to distribute torque to the rear wheels. The coupling requires oil and filter changes every 30,000-60,000 km, but this service is often neglected because it is not always included in standard service schedules. When the oil degrades or the filter clogs, the internal pump can fail, causing the 'Traction Reduced' warning and loss of rear-wheel drive. An oil puddle underneath the car near the rear axle often indicates a seal leak. Pump replacement costs around €400-500. A complete reconditioned Haldex unit costs around €800-1,000 fitted. Regular Haldex oil and filter changes (around €120-150 each time) are the most effective preventive measure.

Freelander 2 models with the Aisin AWF21 6-speed automatic can develop harsh shifting, jerking between gears, and hesitation when changing from drive to reverse. The valve body is the most common cause, and replacement typically resolves the issue. This tends to appear after 80,000-120,000 km, especially in vehicles where the transmission fluid has never been changed. A valve body replacement costs €800-1,200 at a specialist. More extensive transmission work, including torque converter replacement, can reach €1,500-2,000. The 2013+ models use a revised Aisin unit that requires a different oil specification. Manual gearbox models are significantly more reliable in this regard.
