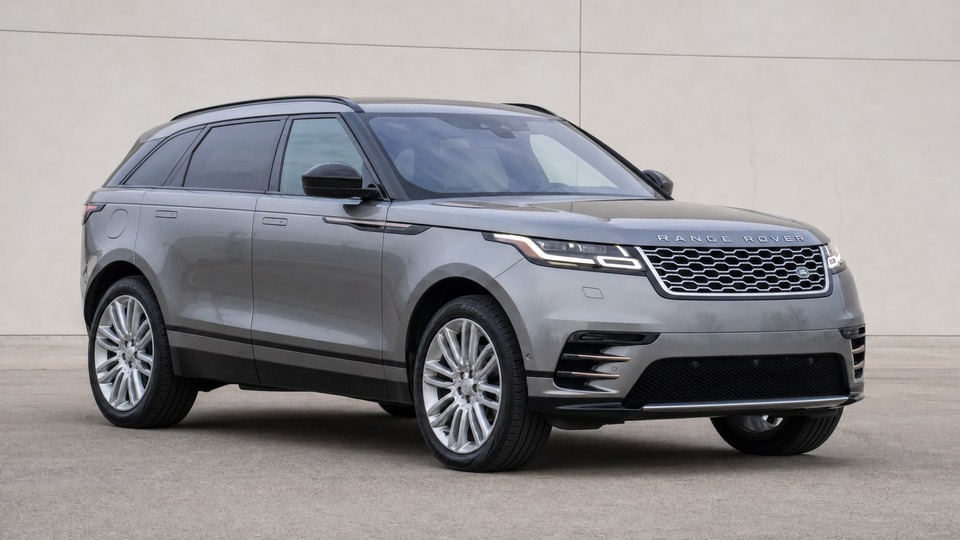

Range Rover Velar D240 L560

The 2.0 Ingenium diesel's timing chain system is a well-documented weak point across all JLR models using this engine. Chain stretch causes a distinctive rattling noise on cold start, lasting anywhere from a few seconds to over 30 seconds. The root cause is typically oil dilution from failed or incomplete DPF regeneration cycles, which thins the engine oil and accelerates wear on the chain, guides, and tensioner. Cars built before late 2019 are most affected, as JLR introduced revised chain components around that time. Typical failure window is 60,000-100,000 km, though some owners report issues as early as 40,000 km. If caught early, replacement of the chain, guides, tensioner, and sprockets costs around €2,500-3,500 at a specialist. If the chain jumps or snaps, pistons contact valves and the engine is usually destroyed, pushing costs to €5,500 or more for a replacement engine. Shortened oil change intervals (every 15,000 km or annually, instead of JLR's longer recommendation) significantly reduce the risk.

The D240's twin-turbo setup can fail due to oil starvation caused by blocked or restricted turbo oil feed pipes, fuel-diluted engine oil from incomplete DPF regenerations, or chain guide debris contaminating the oil system. Symptoms include sudden loss of power, engine management light, and blue smoke from the exhaust. When replacing a failed turbo, a full oil system flush is essential because contamination in the oil delivery system (intercoolers, feed pipes, filter screens) can destroy a new turbo shortly after installation. Specialist turbo rebuild costs start around €3,500, while full replacement with all associated work can reach €7,000. The 2024 recall (N875) addressing turbo oil feed pipe clamp orientation on 2021-2024 diesel cars confirms this is an area JLR has actively addressed.

When the DPF cannot complete its regeneration cycle (which requires sustained higher engine temperatures), unburnt diesel fuel washes into the engine oil sump. This diluted oil then accelerates wear on the timing chain, turbo bearings, and other engine internals. The D240's twin-turbo configuration generates higher exhaust temperatures than the single-turbo D180, which somewhat reduces the frequency of failed regenerations, but short urban trips remain problematic. Warning signs include rising oil level on the dipstick, fuel smell from the oil, and DPF warning lights. A forced regeneration at a workshop costs around €100-150, manual DPF cleaning around €350, and full DPF replacement can exceed €2,000. Regular longer-distance driving at highway speeds is the most effective prevention.

The Velar's signature dual-touchscreen system (Touch Pro Duo) controls most vehicle functions including climate, seat adjustment, and driving modes. Screen freezes, unresponsive touch input, and complete blackouts are widely reported, particularly on 2017-2019 cars running older software. A soft reset (holding the power button for 10-20 seconds) temporarily resolves most freezes. The 18D software update and subsequent patches addressed many of the underlying bugs, so cars with up-to-date software are less affected. If the central control module hardware has failed, replacement costs €800-1,500. Since climate controls are entirely screen-dependent, a frozen lower screen means the driver cannot adjust temperature or ventilation until the system restarts.

The Velar's flush-mounted electrically deploying door handles are a distinctive design feature but a common failure point. Handles may fail to pop out when unlocked, fail to retract when driving, or get stuck in an intermediate position. Causes include internal motor or gear wear, sensor faults, and water ingress into the handle mechanism. Cold weather can worsen the issue, and Land Rover issued a Technical Service Bulletin for handle retraction failures in cold conditions. Individual handle replacement costs €300-800 depending on whether the latch module also needs replacing. Some owners find that silicone lubricant on the hinge mechanism provides a temporary fix.

The 2.0 Ingenium diesel uses an electronically controlled solenoid to manage oil flow to the piston cooling jets. A common failure mode involves the thermostat housing gasket leaking coolant, which drips directly onto the solenoid body and connector below. Over time, this corrodes the connector and damages the solenoid internals, resulting in a P25A9-00 fault code and a 'Critically Low Oil' warning even when oil level is normal. If left unaddressed, pistons can overheat and suffer accelerated wear. Repair involves replacing both the solenoid (€200-400 for the part) and the thermostat housing gasket (€150-300 for parts and labor), with total repair costs of €400-1,000.

The diesel exhaust fluid (AdBlue) system can malfunction due to NOx sensor failure, dosing injector blockage, or crystallization of the AdBlue fluid in the lines. Short-trip driving is a common aggravating factor, as insufficient exhaust temperatures prevent the system from clearing deposits. Symptoms include a 'Diesel Exhaust Fluid Quality Poor' warning and eventually a countdown timer after which the engine will not restart. NOx sensor replacement costs around €500-700 (parts plus labor), while a full SCR system repair including the AdBlue injector and heater can reach €1,200.

The Velar's LED headlights are complex, fully integrated assemblies where the DRL elements cannot easily be replaced individually. When a DRL LED chip fails, Land Rover dealers typically quote full headlight assembly replacement at €3,000-3,500 per side. However, specialist repairers can sometimes replace just the LED circuit board for €100-200. Used headlight assemblies are available for around €800-1,200. The issue affects headlights across all model years, with failure typically occurring after 5-7 years of use.

Multiple electronic control modules in the Velar can fail to enter sleep mode properly, causing a parasitic draw that drains the 12V battery within 3-7 days of the car being parked. Common culprits include the stop-start control unit, infotainment system, and body control module. Software updates have addressed some variants of this issue, but it persists across multiple model years. A quality battery tender is recommended for cars not driven daily. Diagnosis typically costs €100-200, and the fix may be as simple as a software update (free) or require module replacement (€200-500).
