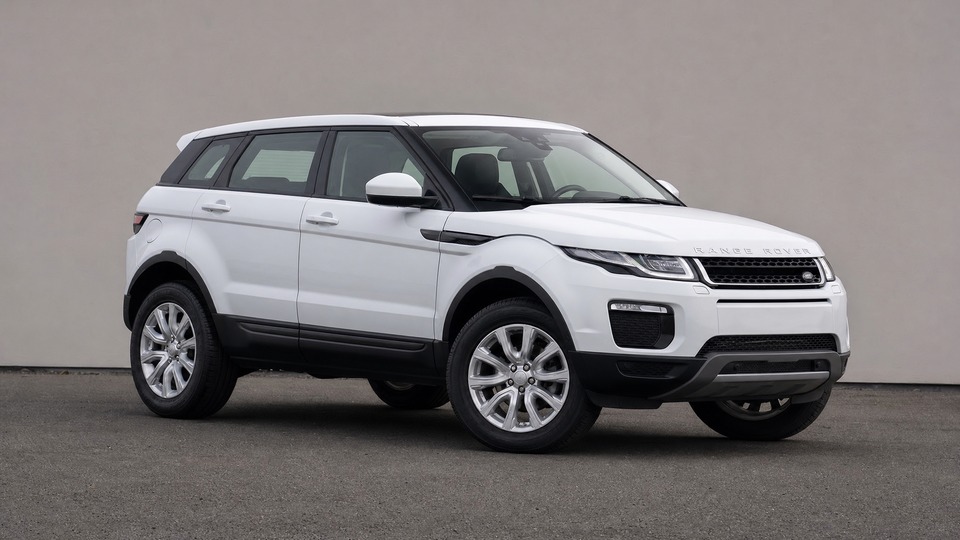

Range Rover Evoque 2.0 TD4 L538

The Ingenium 2.0 diesel timing chain is the most serious concern on 2015-2019 Evoques. Oil dilution from frequent DPF regeneration degrades lubrication quality, accelerating chain and guide wear. Symptoms begin with a distinctive rattle on cold start lasting a few seconds, progressing to longer rattle durations and eventually a Restricted Performance warning. JLR revised the timing chain kit around 2019, introducing a thicker chain and improved guides. Specialist replacement costs approximately €2,500-3,200 at an independent Land Rover specialist, but if the chain has already caused valve contact damage, engine rebuild or replacement pushes costs to €5,000-8,000 or more. Typically occurs between 80,000 and 130,000 km, earlier on cars driven primarily on short trips. Plastic chain guide debris can also block oil passages, contributing to turbo and bearing damage downstream.

The 2.0 Ingenium diesel in the Evoque has the exhaust aftertreatment hardware positioned further from the engine than in Jaguar applications, meaning the DPF stays cold longer. This forces more frequent active regeneration, which injects extra fuel post-combustion. Unburned fuel passes piston rings into the sump, diluting the engine oil. At around 6% fuel content, a Service Required warning triggers. Some owners report hitting this threshold after just 10,000-12,000 km of predominantly short-trip driving. JLR acknowledged the issue as affecting EU6b diesel models with a higher than expected number of DPF regeneration cycles. Oil dilution is the root cause of accelerated timing chain wear and can contribute to turbo and bearing damage. Independent specialists recommend oil changes every 12,000-15,000 km rather than the official 34,000 km interval. DPF replacement itself costs €1,500-3,000 if it becomes permanently blocked. Regular motorway driving of 30+ minutes significantly reduces the severity.

The Evoque was one of the earliest applications of the ZF 9HP48 9-speed automatic, and early calibrations were not fully refined. Common complaints include jerky low-speed gearchanges, hesitation when pulling away from standstill, and the gearbox hunting between 7th, 8th and 9th gears at steady motorway speeds. Causes range from low or contaminated transmission fluid, sticking solenoids in the valve body, to outdated control module software. A software update and fluid change often resolves milder symptoms for €300-600. Valve body replacement at a specialist costs €1,500-2,500. Full gearbox replacement at a dealer can reach €5,000 or more. Land Rover issued multiple software updates throughout production. Despite the claimed sealed-for-life fill, specialists strongly recommend fluid changes every 60,000 km.

The variable geometry turbocharger can fail in two ways. The VGT actuator can seize from carbon buildup, especially on gently-driven cars that rarely reach full boost, causing limp mode and an engine management light. Additionally, plastic particles from worn timing chain guides can enter the oil system and block the turbo oil feed, leading to turbo bearing failure from oil starvation. Symptoms include loss of power, excessive smoke, and whistling noises. Simply fitting a new turbo is often not enough because any contamination remaining in the oil delivery system can destroy the replacement unit. A full oil system flush is necessary alongside turbo replacement. Independent specialist cost is approximately €2,000-2,500, while a dealer replacement can reach €3,500.

The 2.0 Ingenium diesel uses an electronically controlled solenoid to direct oil to the piston cooling jets. This solenoid is positioned directly below the thermostat housing, which is prone to gasket leaks. Coolant dripping onto the solenoid body and electrical connector causes corrosion and eventual failure. Symptoms include a Critically Low Oil warning message and engine management light (fault code P25A9-00), even when oil level is actually normal. The part itself costs around €140-160, but labour is the main expense because of limited access. Total repair runs €600-1,000 at an independent specialist. If the thermostat housing gasket is not replaced at the same time, the problem will recur.

The Haldex 5 coupling transfers power to the rear wheels. Land Rover did not initially specify a regular service interval for the Haldex fluid and filter, but clutch material dissolves into the fluid over time, clogging the internal filter. This forces the pump to work harder, eventually overheating and failing. Symptoms include an AWD System Unavailable warning, juddering on tight turns, and the car becoming effectively front-wheel-drive only. Preventive fluid and filter changes every 40,000-60,000 km cost approximately €200-300. Pump replacement costs €500-900 at a specialist, while a complete coupling unit from Land Rover can reach €1,400 or more. Always verify whether the Haldex has been serviced when buying.

The 2.0 Ingenium is more prone to EGR clogging than the older 2.2 diesel due to the higher frequency of DPF regeneration cycles, which create additional soot. Symptoms include rough idle, hesitation under acceleration, poor fuel economy, and an engine management light. A professional EGR clean costs approximately €200-350 if caught early. Full replacement runs around €600-1,000 at an independent specialist. Regular longer drives help reduce carbon buildup, but on cars used predominantly for short urban trips, the EGR can clog within 40,000-60,000 km.

All 2.0 TD4 Ingenium Evoques use an AdBlue (SCR) system for EU6 emissions compliance. Common faults include NOx sensor failure (showing oxidised wires), AdBlue injector crystallisation, and faulty level or quality sensors. Symptoms range from incorrect AdBlue warnings to countdown messages threatening engine immobilisation even when the tank is full. NOx sensor replacement costs approximately €500-800 including labour. AdBlue injector cleaning or replacement is €300-500. Using only high-quality ISO 22241-certified AdBlue and not letting the tank run completely empty reduces the risk of crystallisation and sensor contamination.

The electric power steering rack uses aluminium bolts to secure the EPAS motor to the rack housing. Salt water ingress causes inter-crystalline corrosion of these bolts, which can fracture and allow the motor to detach, resulting in total loss of power steering assistance. This is a safety-critical failure. Land Rover issued recall N642 with multiple revisions (v3 through v6), providing an extended warranty covering 10 years or 240,000 km. During recall service, the corroded bolts frequently snap during removal, requiring a full new rack, track rod ends, and subframe bolts. Always verify this recall has been completed using the VIN. If outside the extended warranty period, full steering rack replacement costs €2,000-4,500.
