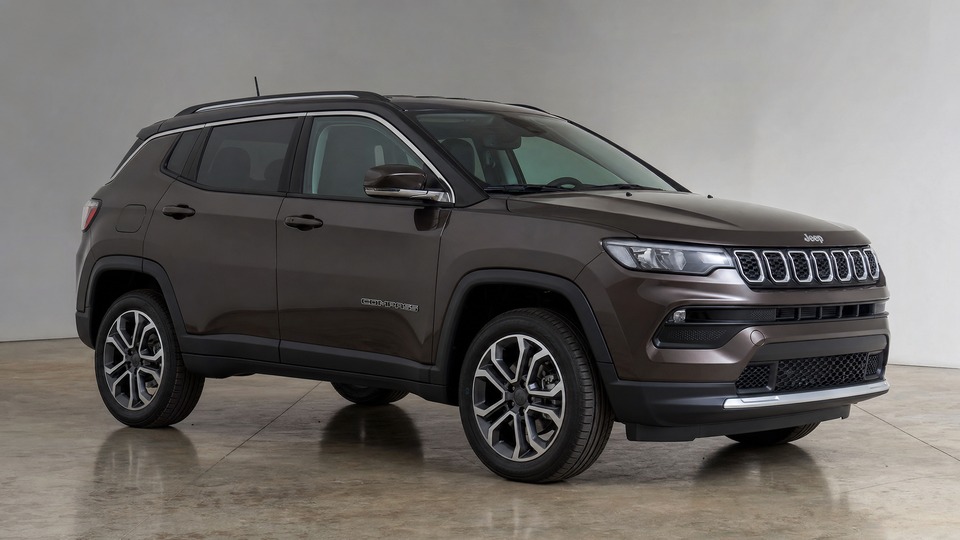

Jeep Compass 1.3 T4 MP

The Fiat-developed C635 DDCT is a dry dual-clutch transmission that operates like an automated manual. It cannot slip the clutch as smoothly as a torque converter automatic, so prolonged low-speed creeping in traffic causes accelerated wear on the clutch pack. Symptoms include jerky shifts, hesitation from standstill, shuddering during 1st-to-2nd gear changes, and eventually a burning smell or total loss of drive. Clutch failures have been reported anywhere from 40,000 km to over 100,000 km depending on driving style. City driving with frequent stop-start conditions shortens clutch life significantly. Replacement requires specialist tools for correct shimming of the dual-clutch assembly and costs approximately €1,500-2,500 at an independent specialist. Some workshops have documented factory over-shimming defects that cause premature taper roller bearing collapse, adding further cost. If the mechatronic unit also fails, repairs can reach €3,000. Avoiding prolonged creeping in traffic and having the transmission fluid changed every 60,000 km significantly extends clutch life. Manual gearbox models (130 hp) do not have this issue.

The 1.3 GSE T4 uses Fiat's MultiAir III electrohydraulic variable valve lift system, which is more complex than conventional valve trains. The PCV valve is integrated into the valve cover with no separately serviceable component. Over time, the PCV diaphragm can rupture, causing oil to be drawn into the intake, increased oil consumption, and a characteristic hissing noise from the engine bay. A valve cover with integrated PCV replacement costs €350-600 including labour. In more severe cases, particularly when oil changes have been neglected or incorrect oil viscosity has been used, the MultiAir solenoids or hydraulic system can fail, potentially requiring partial or complete cylinder head work at €1,500-2,500. Using the manufacturer-specified oil (0W-30 or 5W-40) and changing it every 15,000 km or annually is critical. The MultiAir internal oil filter should also be changed at regular intervals to prevent contaminant buildup in the hydraulic system.

The Uconnect system in the Compass is prone to screen delamination, where the factory adhesive separating the LCD panel from the touch digitiser fails over time. This causes display distortion, white stripes, ghost touches, or complete screen blackout. The issue is accelerated by heat and direct sunlight exposure. Stellantis has released multiple software updates via TSBs (08-074-20, 08-091-21, 08-092-19) to address freezing and connectivity problems, but hardware delamination requires physical replacement. Aftermarket replacement screens cost €150-300, while dealer replacement of the full head unit can reach €600-1,000. A soft reset (holding Volume + Tuner knobs simultaneously) can temporarily resolve software-related freezes. However, the root cause is often hardware degradation that affects most 2020-2023 models to some degree. Backup camera failures tied to the Uconnect system have also been reported.

The electronic wastegate solenoid that controls boost pressure on the GSE T4 turbo can stick or fail, particularly on cars driven predominantly at low engine loads in urban conditions. Symptoms include a P0033 fault code, sudden reduced engine power with an EPC warning light, limp mode activation, and sometimes a clicking or bubbling noise from the turbo area. In many cases the solenoid can be cleaned or replaced individually for €200-400. If the wastegate actuator mechanism itself is damaged, the repair involves turbo-side work costing €500-800. Stellantis has issued a software update to modify the wastegate control strategy on some production runs. Regular driving at higher engine loads helps keep the mechanism operating freely and reduces the likelihood of carbon buildup causing it to seize.

The Compass has a complex electrical architecture with multiple control modules (TIPM, telematics, Uconnect) that can fail to enter sleep mode properly. This causes parasitic draws of 200-500 mA when the car should be drawing less than 50 mA. Symptoms include a dead battery after just 2-3 days of sitting, a permanently unavailable stop-start system with a 'battery charging' message, and intermittent starting problems. The start-stop system uses its own smaller auxiliary battery alongside the main AGM battery; if this secondary battery fails, it places additional stress on the primary battery. AGM battery replacement costs €200-350, and the Intelligent Battery Sensor (IBS) can also fail, adding €100-150. TSB 18-034-20 addresses module sleep-mode failures. A battery tender is strongly recommended for cars that sit unused for more than a week.

The GSE-T4 engine uses a timing chain rather than a timing belt, which should in theory last the engine's lifetime. However, the chain has been documented to have a shorter-than-expected service life on some units, particularly when oil change intervals are stretched beyond the recommended maximum of 15,000 km or incorrect oil viscosity is used. Reports from Fiat 500X and Jeep Renegade owners with the same engine suggest chain stretch can occur around 120,000-140,000 km. Symptoms include the engine management system detecting timing deviation and triggering limp mode, along with a rattling noise from the front of the engine on cold starts. Chain, guides, and hydraulic tensioner replacement costs €1,200-2,500 depending on the workshop, as significant front-end disassembly is required. This issue is relatively rare on well-maintained engines with correct oil specification and regular changes.
