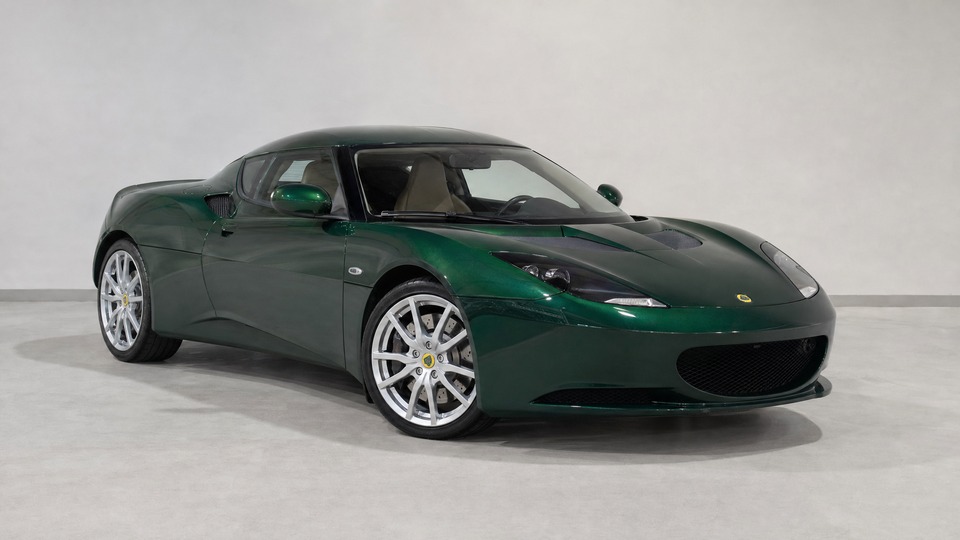

Lotus Evora 3.5 V6 Mk1

The original clutch master cylinder design allows engine heat to degrade the hydraulic fluid over time. When the fluid boils, the clutch pedal drops to the floor and gear selection becomes impossible. This affects pre-2012 cars most frequently. Lotus addressed this with an improved design used on the Evora S, which can be retrofitted. The repair itself costs €800-1,200 at a specialist, though dealers can charge up to €1,800. Many owners fit aftermarket Wilwood or Tilton master cylinders, which are considered more durable than the original Lotus part. A TSB was issued covering heat wrap installation on clutch lines and replacement of the slave cylinder.

The mid-engine layout requires long cables to connect the gearshift to the Toyota gearbox. Early cars (2009-2011) had vague shifts from cable stretch; Lotus revised the cables mid-2010, but some replacements then became overly stiff. A further redesign came with the MY12 update. Cable adjustment at both the gearbox and linkage ends can improve feel significantly. Full cable replacement is a 4-5 hour job. Lotus released an OEM shifter and cable upgrade kit. The cable itself can also snap entirely, leaving the car stuck in gear. Test the shift quality carefully through all gears during a test drive.

The rear upper suspension control arm can develop stress fractures at the casting parting line, where the material is thinnest. This is a safety-critical component: if the crack progresses to a full break, the rear wheel can separate from the car. A TSB (2011/19) was issued covering this. Symptoms include a thunk under braking or when engaging the clutch. The spherical joint in the wishbone slides forward and back as the crack worsens. Revised arms with thicker material at the stress point are available. Parts cost approximately €400-450 per arm. Labor is straightforward (0.8 hours per side according to Lotus), but some dealers quote €2,200+ for both sides. An independent shop or competent mechanic can do the work for significantly less.

The engine wiring harness, sourced from Toyota, is a known weak point on Evoras built before late 2013. Symptoms are varied and often confusing: ABS/traction control warning lights, erratic idle, hard starts, and on IPS automatic cars, the transmission randomly dropping out of gear while driving. Lotus changed the harness supplier in late 2013, so post-2013 cars should have the improved version. Replacement requires rear clamshell removal and is expensive due to the labor involved. This issue is more disruptive on automatic (IPS) models than manuals, where symptoms tend to be milder electrical gremlins.

The Evora's clutch itself typically lasts 60,000-80,000 km with normal road use, which is reasonable. However, replacement is extraordinarily expensive because the rear body clamshell must be removed (6-8 hours alone), followed by engine removal. The Lotus service manual estimates approximately 30 hours total labor. Independent specialists typically charge €4,000-6,000 including parts, while Lotus dealers can quote €8,000-10,000 or more. The clutch parts themselves are relatively inexpensive (around €400 for cover and plate). Track-driven cars may need clutch replacement much sooner.

The window regulator mechanism uses a cable that is prone to snapping, particularly on driver-side windows that see more use. When the cable breaks, the window becomes stuck. A new regulator assembly costs €500-700 from Lotus, but many owners have the broken cable repaired by a specialist for €200-300. The repair itself is fiddly but well-documented in the owner community. This is one of the most commonly reported minor issues across all Evora model years.

The leather covering on the dashboard was not pre-stretched during manufacturing. Over time, heat and UV exposure cause it to shrink, pulling the stitching apart and creating bubbles. The passenger airbag cover clips can fail, causing the panel to lift. While not a safety concern (the clips are designed to break during deployment), it looks poor and reduces resale appeal. Professional re-trimming costs €500-900. Replacement dash inserts from Lotus cost approximately €400-600 but require complete dash removal for fitting, adding significant labor. This affects the majority of cars over 8-10 years old, especially those in warmer climates.

The brake light switch has a plunger mechanism that sticks over time, confirmed by Lotus TSB SB-2015-03. When it sticks, the ABS module reads fault code C0340, illuminating the ABS and traction control warning lights, disabling Sport mode, and preventing cruise control from engaging. Brake lights may also stop working when the pedal is pressed. The switch costs €20-50 and replacement is straightforward, but proper adjustment via the ratchet mechanism is essential. This is probably the single most frequently reported Evora issue across all model years, but fortunately it is also the cheapest to fix.
