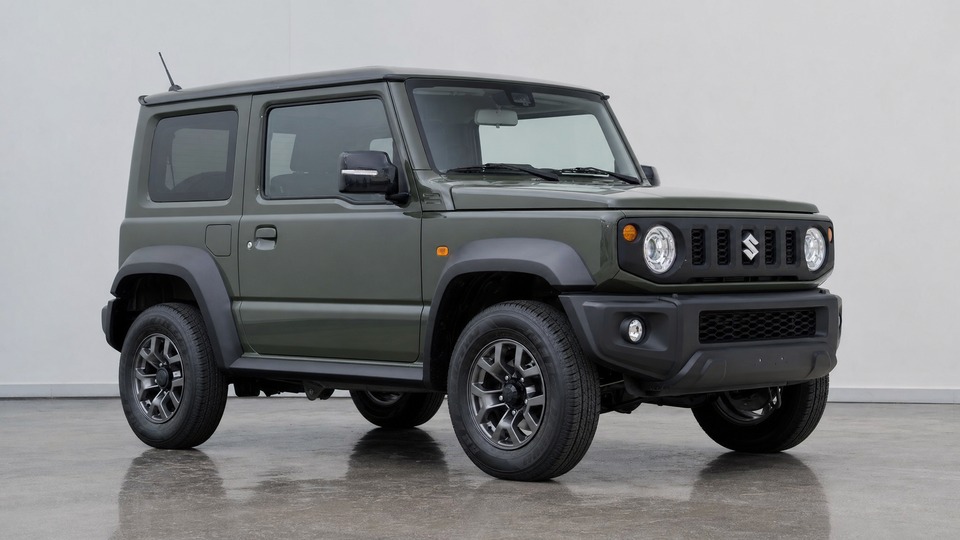

Suzuki Jimny 1.5 JB74

The Jimny's solid front axle uses kingpin bearings rather than ball joints. These wear over time, especially with off-road use, potholes, and larger aftermarket tires. Symptoms include oil seeping from the swivel housing and a violent steering oscillation at 60-90 km/h. Replacement requires removing the front hubs, halfshafts, and steering knuckles. Parts cost approximately €30-60 per side (bearings and seals), but labour is 3-4 hours per side. A shim kit (around €80) can temporarily reduce play. Most Jimnys will need this work at some point, typically between 60,000-120,000 km depending on driving conditions. Water and mud ingress into the steering knuckles accelerates wear. Forum consensus is that this is the single most important thing to check on any Jimny.

Suzuki's factory underside protection is minimal on the Jimny. Surface rust can appear within 18 months, particularly at double-skinned sections under the rear seatbelt mountings, the vertical wall under the front of the back seat, and where the exhaust passes close to the chassis. In severe cases, structural corrosion can cause MOT/TUV failure as early as 10 years. Prevention is key: applying Waxoyl, Dinitrol, or similar cavity wax annually costs €100-200 but saves thousands. Note that Suzuki has warned that some aftermarket rustproofing products may void the perforation warranty. The area above the fuel tank is particularly vulnerable. Cars used off-road in wet conditions or near coastal areas are at significantly higher risk.

Wheel bearing failures are more common on 2020+ models and correlate strongly with heavy 4WD use, mud and water crossings, and larger or heavier aftermarket tires. The rear bearings are particularly vulnerable. A genuine front wheel bearing costs approximately €120. Labour is moderate, with the total replacement coming to approximately €250-500 per bearing depending on location and whether front or rear. Cars driven exclusively on-road rarely develop this issue within the first 100,000 km.

The CV boot on the rear propshaft is known to split prematurely. If caught early, just the boot needs replacing. However, Suzuki does not sell replacement boots separately; they only supply the complete propshaft assembly, which is significantly more expensive. Aftermarket boots are available and a driveshaft specialist can repair the shaft for €150-250. If the CV joint is damaged from running without grease, a new propshaft from Suzuki costs €400-600. Regular visual inspection of the boot for cracks or grease spray is important.

The alternator sits low in the engine bay and is exposed to mud and water during off-road use. Mud can physically stop the brushes from contacting the rotor, and water ingress damages the bearings. Symptoms include no charging, belt squealing, and battery warning light. A new alternator costs €200-400 depending on OEM vs aftermarket. A compatible K12C alternator from a Suzuki Ignis is available as a cheaper replacement from breakers. This issue primarily affects cars that are regularly driven through deep mud or water. Road-only Jimnys rarely experience this.

Manual transmission Jimnys can develop a vibration or chain-slap noise from the transfer case during takeoff or at approximately 2,000 rpm. Suzuki has issued a service bulletin acknowledging this as a characteristic of the model. Warranty replacements often see the noise return. In most cases this is cosmetic rather than indicative of a mechanical problem, and the transfer case functions normally. Only in rare cases does it indicate actual chain wear requiring repair.
