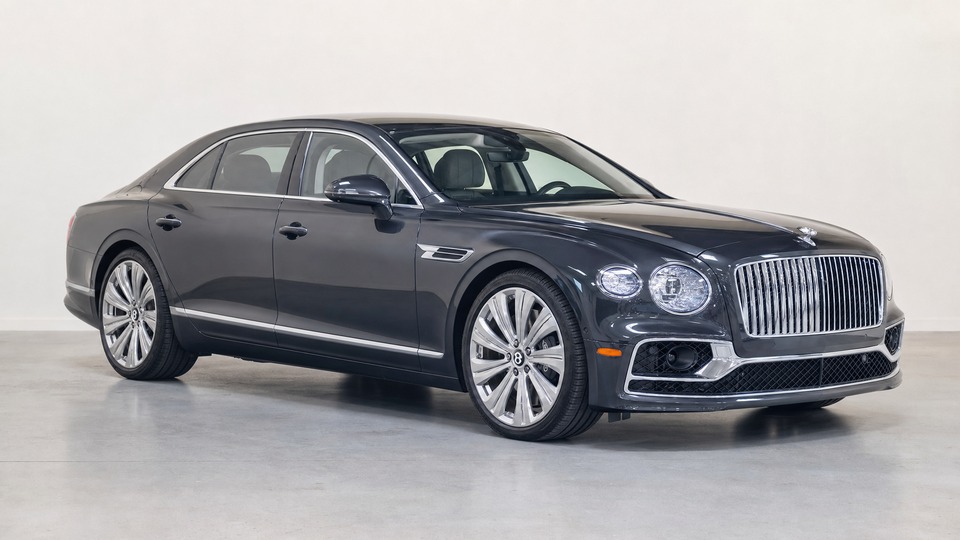

Bentley Flying Spur 4.0 V8 Mk3

The Audi-derived 4.0T V8 has a known weakness: mesh screens in the turbo oil supply lines can become blocked with sludge over time. Audi issued TSB 2044640 for this problem. When blocked, oil flow to one or both turbochargers is restricted, which can cause turbo bearing failure. On earlier 4.0T applications (Audi S6/S7/RS7, 2012-2018 Bentley models), failures were documented as early as 60,000-80,000 km. The Mk3 Flying Spur uses an updated version of this engine, and reports of catastrophic turbo failure are less common, but the underlying design persists. Cleaning the screen costs around €800 at a specialist, but if turbo damage has already occurred, replacement is €3,000-6,000 per turbo including labor. Aftermarket relocation kits exist that make the screen serviceable during regular oil changes. Using high-quality synthetic oil and changing it every 10,000 km or annually helps prevent buildup.

The Flying Spur Mk3 uses a sophisticated multi-chamber air suspension system. Air springs can develop slow leaks as rubber bladders age, typically appearing after 60,000-100,000 km or 5-7 years. Symptoms include one corner sitting lower after the car has been parked overnight, or the compressor running excessively on startup. A single OEM air strut costs €1,500-2,500 depending on front or rear position, plus €500-1,000 labor. If the compressor has been damaged from running overtime due to a leaking strut, replacing it adds €800-1,200. Aftermarket air springs are available from €500-600 per unit, significantly reducing parts cost. Prompt repair of any identified leak prevents cascading compressor damage.

Bentley uses a complex frameless window mechanism with individual ECU-controlled motors. A distinctive hissing sound when operating the window is an early warning sign of imminent failure. The motor and regulator assembly is sold as a complete unit at €600-1,000 per window, with labor adding €200-500 per window depending on the door. Since each motor has its own ECU, diagnostics and coding are required after replacement. This is a known Bentley-wide issue, not specific to the Mk3, but the complex lifting system for the frameless doors makes it more expensive than a conventional window repair. The issue can affect any window but front windows are reported more frequently.

The Mk3 Flying Spur uses a rotating three-sided dashboard display that can experience software glitches, screen freezing, and unresponsive controls. Bentley has released multiple software updates to address these issues. In most cases, a software update at the dealer resolves the problem at no cost or minimal diagnostic fee. However, if the issue persists, the head unit may need replacement, which can cost €1,500-2,500 including the display module and programming. The rotating mechanism itself can also develop issues, though this is less common. Many owners report that keeping the software up to date through regular dealer visits prevents most infotainment problems.

The 4.0T V8 can develop coolant leaks from the thermostat housing seal or auxiliary coolant pump connections. The thermostat housing seal itself is inexpensive (under €20), but accessing it requires removing significant front-end components, pushing labor to €400-800. Auxiliary coolant pumps for the turbochargers can also fail, though Bentley addressed some early pump issues via recall on 2020 Continental GT models. Symptoms include slowly dropping coolant levels, a sweet smell from the engine bay, or intermittent temperature gauge fluctuations. Regular visual inspection of coolant hoses and connections during service helps catch leaks early before they cause overheating.

The 4.0 V8 uses hydraulic active engine mounts designed to dampen vibrations. These mounts can develop internal fluid leaks, losing their vibration-damping ability. Symptoms include noticeable vibration at idle that was not present when the car was newer, and sometimes a clunking noise when shifting from Park to Drive. Replacement requires engine support fixtures and is rated as highly difficult (specialist-only work). Parts cost around €500-800 per mount, with labor adding €800-1,500 for the pair. Audi issued TSB 2036392 for this issue on the 4.0T engine family. Failed mounts should be replaced promptly as excessive engine movement can stress exhaust flex pipes, coolant hoses, and transmission linkages.

The high-level third brake light above the rear windscreen can fail on Continental-platform Bentley models, including the Mk3 Flying Spur. The OEM LED strip assembly costs approximately €500-700, but the real expense is labor: replacing it requires removing and refitting the rear windscreen, which adds significant time and cost. Some owners have found aftermarket LED workarounds for under €20, but these can trigger fault codes if the resistance does not match the original unit. While not a safety-critical failure in most jurisdictions (as the main brake lights still function), it will fail an annual inspection in countries that check all brake lights.
