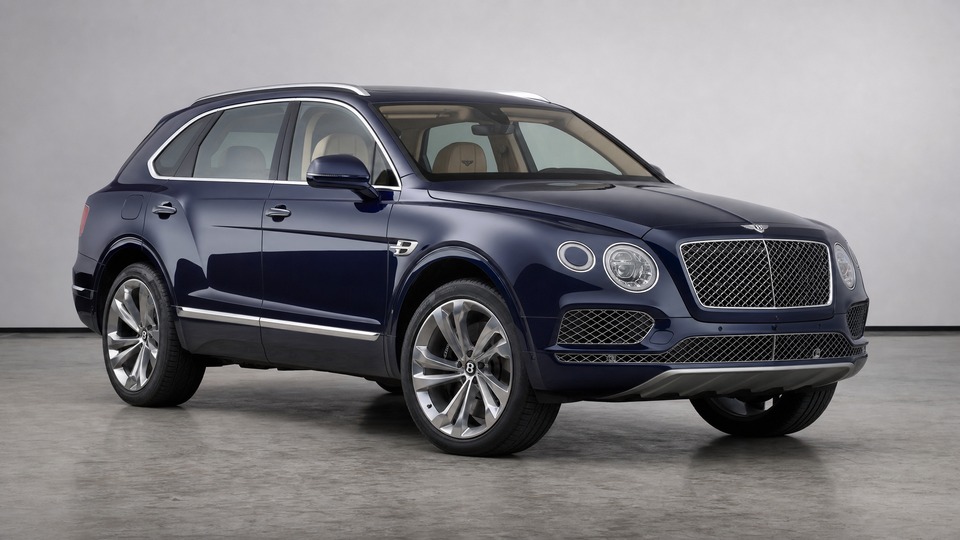

Bentley Bentayga 4.0 V8 Mk1

The Bentayga's adaptive air suspension is one of its most commonly reported failure points. Air spring bags deteriorate over time, developing leaks that cause the vehicle to drop on one corner, especially when parked overnight. Valve block malfunctions and compressor failures also occur. A single air strut replacement costs approximately €1,300-1,500 for an aftermarket unit with CDC (Continuous Damping Control) or €2,000-2,500 for an OEM strut, plus labor. If multiple struts fail in sequence (common as they age together), total costs can reach €5,000-6,000. The compressor itself costs €800-1,200 to replace. Signs of impending failure include the car sitting noticeably lower after being parked for several hours, or a humming compressor that runs longer than usual on startup.

The 4.0 TFSI twin-turbo V8 has a known weakness: the turbocharger oil feed lines contain a fine mesh screen that can clog over time, starving the turbos of lubrication. This affects the entire VW Group 4.0T family and was the subject of TSB 2052085/1 for Bentley 4.0T models from 2012-2018. If caught early, preventive screen cleaning or relocation costs around €3,000 including labor due to the screens' inaccessible location (requires removing throttle bodies, intercooler, bi-pipes, and oil separator). If a turbo actually fails from oil starvation, replacement costs €4,000-6,000 per turbocharger. Strict adherence to oil change intervals with quality synthetic oil is the best prevention. Symptoms include whistling sounds, blue exhaust smoke, and sluggish acceleration.

The Bentayga features Bentley Dynamic Ride, which uses 48V electric motors on split front and rear anti-roll bars to control body lean. The system includes a DC/DC converter and supercapacitors housed beneath the spare wheel. When components fail, the car may display handling warnings and default to passive anti-roll behavior, making the ride noticeably less controlled. The anti-roll bar motor assemblies cost approximately €1,000-1,200 each, and the 48V module with wiring runs €500-800. Diagnostics and recalibration require Bentley-specific tooling. Issues typically appear after 80,000+ km or when the car has been left standing for extended periods.

The Bentayga's electronics are widely cited as its weakest area. Owners commonly report touchscreen freezing, random reboots during driving, blank displays, Bluetooth connectivity failures, and parking sensor ghost warnings. Early production years (2018-2020) are particularly prone to these issues. Software updates resolve many problems at €200-350, but hardware failures (screen replacement, MMI module failure) cost €2,500-4,500. The reverse camera may display a blank image in some 2021-2022 models, which was addressed by recall. Driver assistance systems, including the emergency stop system, have been reported to activate unexpectedly on clear roads.

The cooling system has several documented weak points on both V8 and W12 Bentaygas. The N90316801 O-ring is specifically noted as failure-prone, and thermostat housing issues are common on 2018-2020 models. Water pump seal failures can cause visible coolant drips beneath the engine. Expansion tank cracks are also reported. If coolant loss goes unnoticed, it can lead to overheating and more serious engine damage. Early detection is straightforward: check for colored puddles (green, orange, or pink) under the car, monitor the coolant level, and look for a sweet odor in the engine bay. Repair costs vary from €800 for an O-ring or hose replacement to €3,500 if the water pump and thermostat housing need full replacement with labor.

The 4.0 TFSI engine's PCV (Positive Crankcase Ventilation) valve sits directly under the turbochargers, where heat accelerates wear on the rubber diaphragm inside the oil separator. When it fails, the crankcase pressure becomes unregulated. Too much vacuum pulls seals inward, causing oil consumption; too much pressure pushes oil past gaskets. Symptoms include a whistling noise from the engine bay, rough idle, check engine light with lean mixture codes, and visible oil seepage from various engine seals. The part itself costs approximately €150-300, but labor is substantial due to the component's location between the turbochargers. Total repair typically runs €600-1,800 depending on whether secondary seal replacements are needed.

Modern Bentleys have extensive always-on electronics systems that create significant parasitic drain on the 12V battery. If the Bentayga is left parked for more than a week without driving or a trickle charger, the battery will frequently go flat. This is a known characteristic rather than a defect, but it leads to additional problems: dead batteries can trigger module faults and software glitches when jump-started. The AGM battery itself costs €300-500, and Bentley recommends replacement every 3-4 years. A quality battery tender (€50-100) is considered essential equipment for any Bentayga owner who does not drive daily. Repeated deep discharges degrade the battery faster and can cause cascading electronic issues.
