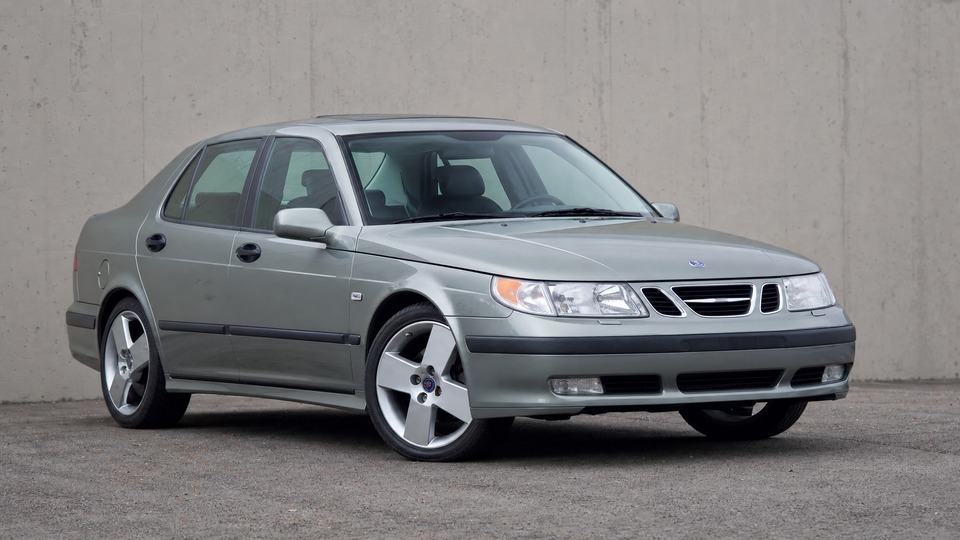

Saab 9-5 Aero Mk1

The most serious 9-5 issue. On 1999-2003 models, a combination of inadequate crankcase ventilation, the catalytic converter positioned below the oil sump (cooking the oil), and Saab's original recommendation to use semi-synthetic oil with 16,000 km intervals caused sludge buildup. The sludge blocks the oil pickup screen in the sump, leading to oil starvation, bearing damage, and eventually complete engine failure. GM/Saab recalled up to 400,000 cars worldwide and offered an 8-year extended engine warranty for affected models serviced to specification. From 2004, Saab redesigned the PCV system and engine block, largely solving the problem. For pre-2004 cars, verify the PCV update kit (TSB 210-2561, part 55 561 200) has been fitted. Drop the sump or remove the valve cover to physically inspect for sludge before purchase. With proper maintenance (synthetic oil, 8,000 km intervals), the risk drops dramatically. If sludge damage has already started, cleaning costs €500-800, but if the engine has suffered bearing damage, a rebuild or replacement can reach €3,000-4,000.

The Saab direct ignition cassette is a single unit containing all four ignition coils. It sits directly on top of the engine and is exposed to significant heat, causing the housing to crack over time. Symptoms include misfires, rough idle, hesitation under load, and eventually a check engine light. This is one of the most common Saab 9-5 issues and affects virtually all cars at some point. Typical failure occurs between 80,000-120,000 km, and many owners treat the DI cassette as a consumable item. Quality aftermarket units (Bosch, Hella) cost €80-150, while OEM Saab units were €200-300. Labor is minimal as it sits on top of the engine. Total cost with fitting is €200-500. Always replace the spark plugs at the same time.

The electronic throttle body can fail internally, with the throttle position sensor or control motor malfunctioning. Symptoms include an illuminated engine management light, surging or hunting at idle, and the car entering limp mode with almost no throttle response. Common fault codes include P1230 (throttle position sensor out of range) and P1251 (throttle motor stuck). A replacement throttle body costs €150-350 for the unit, plus €100-200 for fitting and recalibration via Saab diagnostic software. Some units can be repaired by specialist electronic companies for €100-150. This issue appears more frequently on pre-2006 models and typically between 100,000-180,000 km.

The crankshaft position sensor is mounted in a difficult-to-access location low on the engine block and is exposed to significant heat. As it degrades, it fails intermittently when hot, causing the engine to stall or refuse to restart when warm. The frustrating aspect is that it often produces no fault codes and no warning light, making diagnosis difficult. The car starts fine when cold but stalls after driving 10-20 minutes. Resistance between pins should read 770-950 ohms; deviation indicates failure. The sensor itself costs only €30-60, but labor is €120-200 due to poor accessibility. Experienced Saab owners carry a spare CPS in the glovebox as preventive measure.

The B235 timing chain can stretch prematurely, particularly on cars that have suffered from oil sludge or extended oil change intervals. The hydraulic tensioner relies on oil pressure to maintain chain tension, and if the oil gallery feeding it is partially blocked by sludge, the tensioner cannot maintain pressure overnight. This causes the distinctive cold-start rattle in the first few seconds after starting. If the rattle lasts more than a few seconds and worsens over months, chain replacement is needed before it skips a tooth and causes valve damage. Parts (chain, tensioner, guides, sprockets) cost €300-500; labor is €500-1,500 depending on the workshop. On cars with clean oil systems, the timing chain typically lasts 200,000+ km without issues.

The boost pressure control (BPC) solenoid controls how much boost pressure reaches the wastegate actuator. Carbon buildup from gentle driving or short trips causes the solenoid to stick, leading to erratic boost delivery, power loss, or in some cases overboosting followed by a fuel pump cutoff. The solenoid resistance should measure approximately 3 ohms across its coils. Replacement costs €50-100 for the part and is a straightforward 30-minute job. However, if the wastegate mechanism itself has seized due to prolonged solenoid failure, additional work may be needed. Regular spirited driving helps prevent carbon buildup.

The HVAC system uses plastic blend door actuators and linkages that become brittle with age and break. The most common failure is the driver's side blend door arm shaft (ACC error code 08), followed by the passenger side (error code 11). When the shaft breaks, the affected zone is stuck on either full heat or no heat. OEM replacement required removing the entire heater box, a labor-intensive job that could exceed €800 at a dealer. However, aftermarket billet aluminum replacement arms are now available for approximately €30-50 and can be fitted without removing the dashboard in most cases, reducing total repair cost to €200-400 including labor. Check ACC fault codes by pressing AUTO and OFF simultaneously; any code other than 0 indicates a fault.

The Saab Information Display (SID) above the audio unit suffers from a well-known pixel failure caused by the ribbon cable connecting the LCD to the circuit board becoming brittle and losing its silver traces over time. Single pixels or entire lines disappear, making the display increasingly unreadable. This affects nearly all 1998-2005 models to some degree. DIY repair kits with replacement ribbon cables are available for €15-30 and require no soldering. Professional repair services charge approximately €80-150 with a warranty. The 2006+ facelift models use a different display that is less prone to this issue. While not a mechanical problem, it significantly affects usability and resale value.
