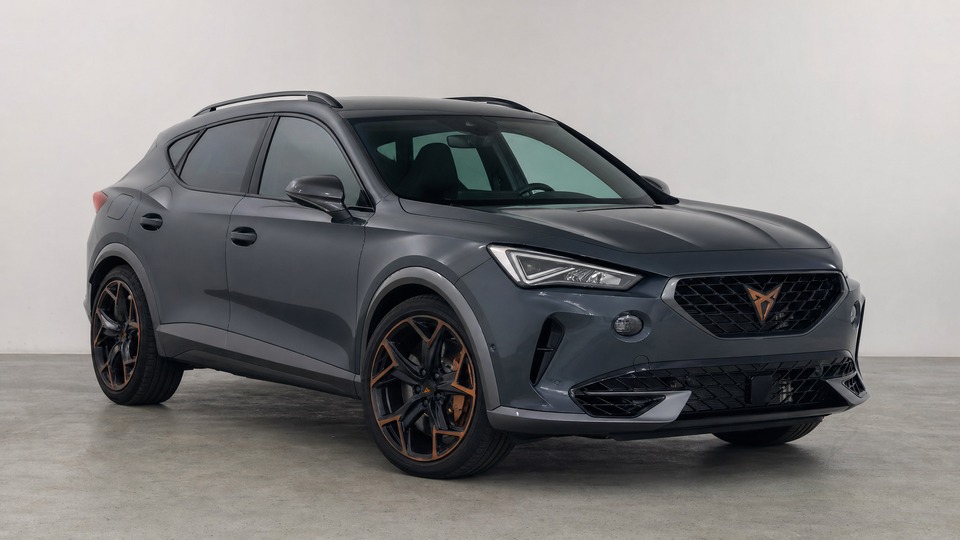

Cupra Formentor VZ5 2.5 TSI Mk1

The Haldex-based 4Drive system uses a pump that circulates oil to engage the rear axle clutch pack. Over time, metallic dust from the clutch plates contaminates the oil and clogs the pump strainer. Critically, Cupra does not clean the strainer as part of standard servicing. If neglected, the pump typically fails around 60,000-80,000 km. Symptoms include delayed rear axle engagement, understeer in conditions where AWD should help, and error messages. A pump replacement costs approximately €800-1,200 at an independent specialist. If the entire Haldex unit needs replacing, costs can reach €2,000-2,200. Preventive measure: change Haldex oil and clean the strainer every 30,000 km. This is the most important maintenance item on the VZ5 beyond regular engine oil changes.

A widespread issue across the Formentor range equipped with DCC (Dynamic Chassis Control). The electric solenoid valves inside the Monroe shock absorbers produce an audible clunk when restricting oil flow over speed bumps. The VZ5's 20-inch wheels and stiffer calibration may exacerbate the issue. Disconnecting the DCC plug or pulling the fuse instantly eliminates the noise, confirming the dampers as the source. Cupra dealers have replaced front shocks under warranty (part 3Q0413032), but replacement Monroe units can develop the same noise. Monroe reportedly removed these DCC dampers from their parts catalog after the issue was identified. Replacement cost per shock is approximately €350-400 including labor, with both fronts typically done together.

This is flagged as the most critical risk on the EA855 Evo engine platform. When an injector sticks open, fuel continuously sprays into the combustion chamber, creating extreme heat that can melt the piston and destroy the cylinder bore. The EA855 Evo uses plasma-sprayed cylinder walls rather than traditional liners, so piston damage usually means a complete engine replacement. On stock-tune VZ5 cars this failure is rare, but it is well documented in tuned RS3 and TT RS applications. Specialist tuners recommend preventive injector testing or replacement every 60,000 km as a precaution. A full set of five OEM injectors costs approximately €600-800. If an injector failure leads to piston damage, engine replacement can exceed €8,000. Staying on stock tune and using quality fuel significantly reduces the risk.

The DQ500 7-speed wet-clutch DSG handles the 480 Nm torque from the five-cylinder well, but mechatronic issues have been reported. Common symptoms include hesitation when pulling away, jerky low-speed shifts, and in severe cases limp mode. Gear selector solenoid faults have also been documented, with the replacement part alone costing over €1,000. A specialist rebuild of the mechatronic unit runs €1,200-1,800, while a complete replacement at a dealer reaches €3,000-3,500 including labor and coding. The DQ500 is more robust than the DQ381 used in the 2.0 TSI variants, but it is not maintenance-free. Changing DSG oil every 40,000 km is strongly recommended despite the manufacturer's lifetime-fill claim.

A known characteristic of the EA855 Evo engine. The wastegate flapper develops play in the actuator rod over time, producing a metallic rattle that is most audible between 1,250 and 3,000 RPM during deceleration. While cosmetically annoying, it does not typically affect performance or boost control in the short term. A wastegate repair kit costs around €100-300 and can resolve the noise. However, if the turbo internals are worn, a full turbocharger replacement runs €1,500-2,000. Some tuning companies offer software-based solutions that adjust wastegate control to eliminate the rattle.

The DNWB engine in the VZ5 uses direct injection only, without the secondary port injection found on some other EA855 Evo variants. Without fuel washing over the intake valves, carbon deposits gradually build up. Symptoms include rough idle, hesitation, slight power loss, and increased fuel consumption. This typically becomes noticeable after 60,000-80,000 km, depending on driving patterns. Short trips and consistently low-RPM driving accelerate the buildup. Walnut blasting to clean the valves costs €400-700 at a specialist for a five-cylinder engine, given the extra cylinder and tighter packaging compared to four-cylinder engines. Regular spirited driving helps slow the process.

The MIB3 infotainment unit used across VW Group vehicles from 2020 onward is prone to software instability. Symptoms range from slow startup to complete screen blackouts and reboot loops. Climate controls, reversing camera, and navigation all become temporarily unavailable during a reboot. Software updates have progressively improved stability, with version 1940/1941 resolving the worst reboot loop problems. A dealer software update is typically free under warranty. A full MIB3 unit replacement costs around €300-350 if out of warranty. While not dangerous, this is the most frequently reported owner frustration across the Formentor range.

Many owners of the 2.5 TFSI report higher-than-expected oil consumption, with some needing to add 0.5-1.0 litre between services. This is partly by design given the high-performance nature of the engine, but excessive consumption can indicate a faulty PCV (crankcase ventilation) valve. A failing PCV valve leads to increased crankcase pressure, oil blow-by, and accelerated piston ring wear. A PCV valve replacement costs approximately €200-300 including labor. Checking oil level every 2,000-3,000 km is recommended. Audi considers up to 0.5 litres per 1,000 km within tolerance for high-performance variants, but consistent consumption above 0.3 litres per 1,000 km warrants investigation.
