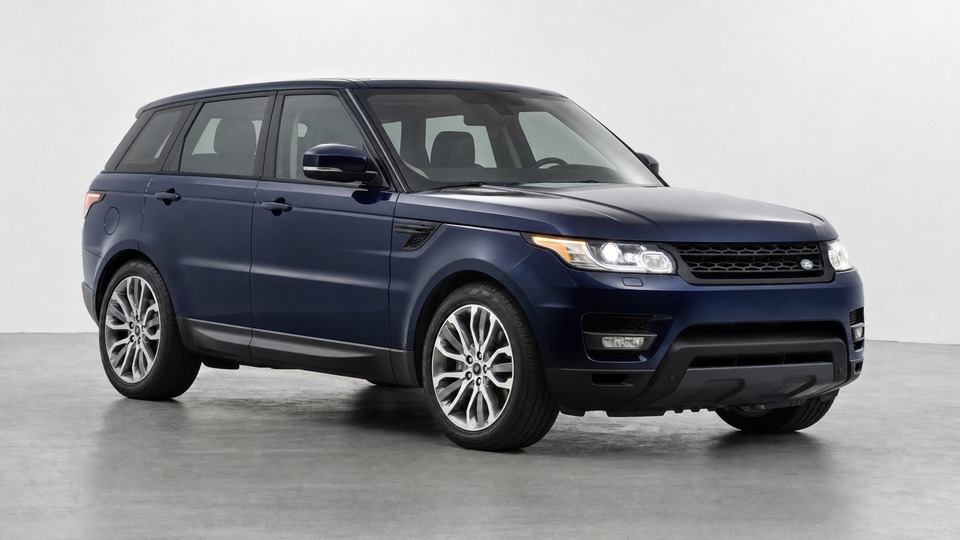

Range Rover Sport 3.0 SDV6 L494

The Electronic Air Suspension (EAS) is standard on most L494 variants and is the most common high-cost failure. The compressor (Hitachi unit) runs frequently to maintain ride height and works harder as air springs develop small leaks. Compressor replacement costs approximately €1,200-1,800 at a specialist, or €2,000-2,800 at a Land Rover dealer. Individual air springs typically cost €500-800 per corner for a quality aftermarket unit and €800-1,200 for OEM. Height sensors can also fail, at €200-400 each. Symptoms include the car sitting unevenly, slow rise on startup, or a suspension fault warning. The compressor typically shows wear between 80,000 and 140,000 km. Air springs tend to crack at the fold points after 6-8 years, especially in climates with temperature extremes. Cars that are frequently loaded heavily or used off-road accelerate wear.

The crankshaft damper on the 3.0 V6 diesel uses a bonded rubber element that degrades over time. Once the rubber separates, the outer ring wobbles, causing the auxiliary belt to track incorrectly. Symptoms include a visible wobble on the damper pulley, a rattling or knocking noise from the front of the engine, and eventually the auxiliary belt being thrown. If the belt wraps around moving parts, secondary damage can occur. Replacement at an independent specialist costs approximately €800-1,200 including the part and labour. A Land Rover dealer may charge €1,200-1,500. This issue typically appears between 80,000 and 150,000 km. It is a well-known weakness of the 3.0 TDV6/SDV6 engine family across Land Rover, Range Rover, and Jaguar applications. Preventive replacement is recommended at around 100,000 km.

The Borg-Warner two-speed transfer case distributes torque between front and rear axles. Over time, bearings wear and the internal chain can stretch, producing a whining noise that increases with speed. Early symptoms are a quiet whine at highway speeds, which worsens progressively. A full transfer case rebuild at a specialist costs approximately €2,000-3,000, including bearings, seals, and a new chain. A complete replacement unit from Land Rover can exceed €4,000. Fluid changes every 60,000 km help extend life, but many owners neglect this because Land Rover did not specify a change interval in early production years. The issue is more common on higher-mileage examples above 120,000 km and on cars that tow regularly.

JLR's InControl Touch Pro infotainment system in the L494 has been widely criticized for freezing, slow response, and Bluetooth/navigation malfunctions. Software updates have improved stability, but hardware failures (head unit, screen, module) still occur, costing €800-2,500 for replacement at a dealer. Beyond the infotainment, the L494 has a large number of electronic control modules (over 100 in some specifications), and any failure can produce confusing warning messages. Common electrical faults include parking sensor failures (€200-500), reversing camera issues (€300-600), keyless entry problems, electric seat motor failures, and battery drain from modules not entering sleep mode. A quality battery management system or trickle charger is recommended if the car is not driven daily. Diagnostic investigation alone typically costs €80-150 per visit.

The 3.0 SDV6 recirculates exhaust gas for emissions compliance, and carbon deposits gradually restrict the EGR valve and coat the inlet manifold. Symptoms include rough idle, reduced power, increased fuel consumption, and eventually a check engine light. Cars driven predominantly in urban traffic or on short trips accumulate deposits faster. EGR valve replacement costs approximately €600-900 at a specialist. An inlet manifold clean-and-replacement can reach €1,200-1,500 if the manifold needs to be removed and thoroughly cleaned or swapped. Regular motorway driving at higher RPM helps burn off deposits. Some specialists offer EGR valve cleaning for €200-350 if caught early.

Post-2016 L494 models with the EU6-compliant SDV6 use an AdBlue (SCR) system. Common faults include NOx sensor failure, AdBlue injector crystallization (especially in cold weather), and faulty level or quality sensors. Symptoms range from incorrect AdBlue fill warnings to countdown messages threatening engine lockout in a certain number of miles, even when the tank is full. NOx sensor replacement costs approximately €500-800 including labour. AdBlue injector cleaning or replacement is €300-500. Using only high-quality ISO 22241-certified AdBlue and keeping the tank above a quarter full reduces the risk of crystallization. Pre-2016 EU5 models do not have AdBlue and are not affected.

The DPF on the 3.0 SDV6 can clog if the car is used predominantly for short urban trips where the exhaust never reaches the temperature needed for passive regeneration. Symptoms include a DPF warning light, reduced power, and increased fuel consumption from failed active regeneration attempts. A forced dealer regeneration costs €200-400. If the DPF is permanently blocked, replacement costs €1,500-3,000 including the catalyst. The 3.0 V6 generates enough heat for passive regeneration during normal motorway driving, so this is primarily a problem for urban-only use. Regular 30+ minute drives at sustained speed help prevent clogging.

A recall affecting 2014-2016 production L494 models addressed defective keyless entry door latches that could appear locked but not fully engage. In severe cases, a door could open while driving. Land Rover recalled over 65,000 vehicles globally for this issue. The recall repair involved software updates and latch mechanism replacement at no cost to the owner. When buying used, verify this recall has been completed using the VIN. If the recall was missed and the latch needs independent replacement, the cost is approximately €300-500 per door for the mechanism and labour. Aftermarket replacement latches are available but OEM parts are recommended for a safety-critical component.
