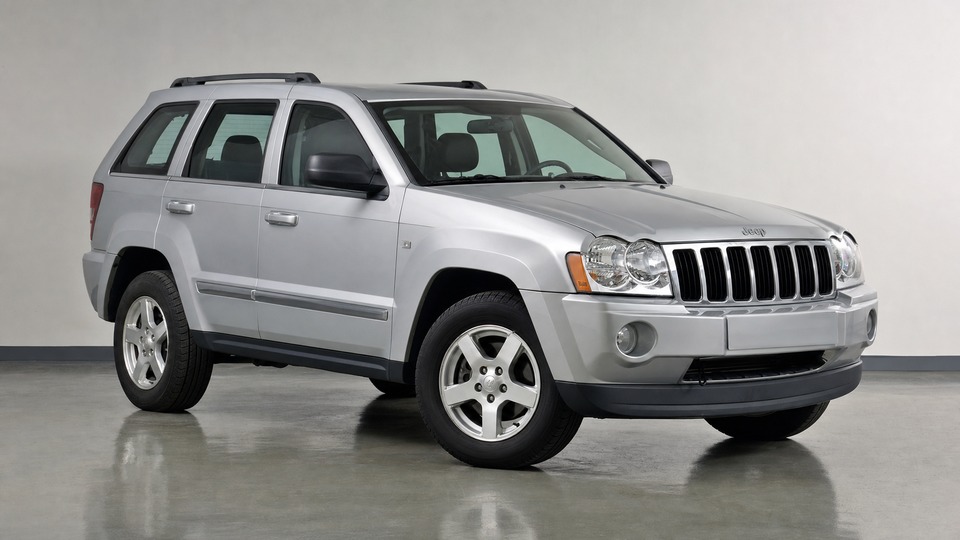

The WK was the third-generation Grand Cherokee, sold in Europe from 2005 until production ended in 2010, and the first to use independent front suspension. The 3.0 CRD was the volume European version and its drivetrain comes straight from the DaimlerChrysler years: the Mercedes-Benz OM642 V6 with the Mercedes five-speed automatic Chrysler badged NAG1, listed as the W5A580 on Jeep's 2005 European specification and as the W5J400 on the technical specification current in September 2009, so mechanically it has more in common with a same-age ML than with any other Jeep. It pairs 510 Nm and full-time four-wheel drive with prices that now sit well below €10,000, and most engine parts are shared with a very large Mercedes fleet.· more· less
Mercedes OM642 V6 and 5-speed autoSteel springs, no air suspension
Oil cooler seals weep in the valleyOil-fouled intake kills swirl motors
Buy if: You want a cheap, strong-pulling diesel SUV and can budget for the OM642's oil cooler and intake work early in your ownership.
Avoid if: You need predictable running costs, drive mainly short urban trips, or have no access to a workshop with Mercedes-level diagnostic equipment.
Valley-mounted oil cooler seals harden with heat and weep oil, usually after 130,000 km · more· less
The OM642's oil cooler sits in the valley between the cylinder banks and is sealed with O-rings that harden from constant heat cycling. Cars of this age use the original seal material, which fails noticeably sooner than the later Viton item Mercedes introduced. The first sign is oil weeping from the drain hole at the back of the block near the bellhousing, which owners often mistake for a rear main seal; oil then pools in the valley and can drip onto the starter, alternator and gearbox. The parts are cheap, under €100 for a complete seal kit, but access requires removing the turbocharger, both intake manifolds and the EGR plumbing, which is 8 to 10 hours of labour. Expect €1,000 to €1,600 at an independent diesel specialist and up to €2,200 at a franchised dealer. Because labour dominates the bill, most specialists replace the EGR cooler seals, turbo gaskets and swirl flap components at the same time. Left long enough the leak drops the oil level and starves the bottom end, which is the route to the bearing failure listed further down.
Swirl flap motor failure and oil-fouled intake
€350 - 1,2002 of 13
Oil from the turbo inlet hose seal runs into the swirl motor connector, giving fault code P2015 · more· less
This is the single most reported fault on the 3.0 CRD. The charge pipe between the intercooler and the turbo inlet, known to owners as the elephant hose, uses a red or orange seal that hardens and lets oily crankcase vapour escape. The oil runs down onto the electric swirl flap motor mounted directly below and works into its connector, killing the motor. The result is fault code P2015, rough idle, a check engine light and reduced power. Chrysler released an updated hose with a black seal (part 53013672AE); fitting the old specification again simply repeats the failure. A swirl motor is roughly €150 to €250, the updated hose €100 to €150, and the job takes two to three hours, so €350 to €700 is typical. If the intake manifolds are also heavily coked with EGR soot and oil mist, add a walnut-blast clean or manifold replacement and the bill reaches €1,200. A resistor bypass that clears the code without repairing the leak is common on used examples and is not a fix; look for a workshop invoice instead.
EGR valve and cooler carbon fouling
€400 - 1,4003 of 13
Soot and oil mist clog the EGR valve, causing stalling at low throttle openings · more· less
Pre-2010 OM642 engines run high EGR rates without SCR, so the valve and cooler foul heavily. The classic symptom on this engine is a stall or near-stall when lifting off and re-applying light throttle at low speed, often with no stored fault code at first; later come P0401, P0402 or P049D and a check engine light. Owners generally reach this point between 110,000 and 180,000 km, sooner on short-trip cars. Cleaning the valve is €250 to €400 if the workshop is already inside the intake for other work. A replacement valve fitted is €400 to €700. A cracked or blocked EGR cooler is the expensive version at €900 to €1,400, and a cracked cooler also shows as unexplained coolant loss and white exhaust smoke. Because the EGR plumbing has to come off for the oil cooler job anyway, combining the two saves several hours of labour.
Variable geometry turbo actuator sticking
€500 - 2,2004 of 13
Carbon binds the VNT vanes, producing P0234 or P0299 and limp mode · more· less
The variable geometry turbocharger's vane mechanism sticks as carbon builds on the vanes and linkage, particularly on cars used gently or on short trips. Symptoms are a sudden drop into limp mode with codes P0234 for overboost or P0299 for underboost, sometimes with a whistle under load. The actuator is a common misdiagnosis point: a specialist who can test it bidirectionally can often free and recalibrate the mechanism for €250 to €400, or fit a replacement actuator for €500 to €800. A genuine turbo failure, which usually follows a period of running with oil starvation from an unaddressed oil cooler leak, means a replacement cartridge or complete turbo at €1,400 to €2,200 fitted. Reconditioned units are widely available and reasonably priced because this turbo is shared with the Mercedes ML, E-Class and Sprinter.
Front control arm ball joint wear
€400 - 1,2005 of 13
The upper and lower front ball joints wear on a 2.1 tonne SUV, and most workshops quote the repair as a complete arm · more· less
The WK's independent front suspension wears out its upper and lower front ball joints. Separate upper and lower joints are catalogued for the 2005-2010 WH/WK with OE cross-references, so a worn joint does not have to mean a whole arm, but most workshops still quote and fit a complete control arm because pressing a new joint into an aged, corroded arm costs as much labour as the arm is worth. The tell-tale is a clunk or pop from the front end over bumps and at low-speed direction changes, plus play when the wheel is rocked at 12 and 6 o'clock. On a 2.1 tonne SUV this is a wear item rather than a defect, and most cars need at least the upper arms by around 150,000 km. Aftermarket arms are €70 to €130 each and the job is straightforward, so a pair of upper arms fitted is €400 to €600. Doing uppers and lowers together with an alignment afterwards takes it to €900 to €1,200. In salted-road markets the lower arm bolts frequently seize, which adds labour and occasionally means cutting the bolt out.
Corrosion of underbody, subframe and body seams
€300 - 2,0006 of 13
These cars are 16 to 21 years old and corrosion is common in salted markets · more· less
The WK was built to mid-2000s corrosion standards and every surviving example is now old enough for rust to be a real ownership cost. Owners most often report corroded control arms, seized suspension and subframe fasteners, and surface rust on brake and fuel lines. On the body, check the rear wheel arch lips, the lower tailgate, the sill seams and around the roof rail mounts. Light underbody treatment plus a few localised repairs runs €300 to €600. Welding for a periodic inspection, plus replacing components that snap or seize during unrelated repairs, can reach €2,000. In Northern European markets this is often what decides whether an otherwise sound car is worth keeping, so inspect it on a lift before agreeing a price.
Injector copper seal leak and injector wear
€250 - 1,8007 of 13
Copper washers under the injectors fail, letting combustion gases form hard black carbon · more· less
The copper crush washers that seal each injector into the head lose their seal over time, letting combustion gases past the injector to form the hard black carbon deposit Mercedes diesel owners call Black Death. Caught early, the washers cost a few euro each and a specialist can clean and reseal a leaking injector for €250 to €400. Left alone, the carbon seizes the injector in its bore and extraction can damage the cylinder head. Separately, the piezo injectors themselves drift out of tolerance at high mileage, giving a rough idle, hard hot starting and smoke; a workshop reads this as an injector correction value deviation on a diagnostic scan. Individual injectors are €250 to €350 and a full set of six replaced and coded is €1,500 to €1,800. Ask whether the injector wells have ever been inspected, because it takes minutes with the engine cover off.
Diesel particulate filter clogging
€400 - 1,8008 of 13
Cars built from late 2006 carry a DPF that ashes up quickly on short-trip use · more· less
European Grand Cherokees built from late 2006 carry a diesel particulate filter, and those cars are usually rated at 155 kW rather than 160 kW. The filter needs sustained motorway running to regenerate, so a car used for school runs and town driving builds soot faster than it can burn it, giving warning messages, rising fuel consumption and eventually limp mode. Off-car cleaning is €400 to €650 in Germany and usually restores a filter that has not been abused. A replacement filter is €900 to €1,800 depending on whether an OEM or a type-approved aftermarket unit is fitted. Using the correct MB 229.51 low-ash oil matters here: the cheaper wrong specification accelerates ash loading and shortens filter life measurably. Removing the filter is illegal for road use in EU markets and will fail a periodic inspection.
Glow plugs seizing in the cylinder head
€250 - 1,2009 of 13
Plugs corrode into the head and can snap on removal; the glow plug module fails separately · more· less
The OM642's glow plugs typically need replacing between 130,000 and 190,000 km, and by then they have often corroded into the aluminium head. A routine six-plug change is around an hour of labour plus €20 to €30 per plug, so €250 to €400. If a plug snaps and the tip has to be extracted from the head, cost climbs steeply and in the worst cases the head has to come off, which is why some workshops decline the job on very high mileage engines. The glow plug control module is a separate failure, showing as code P1648 and hard cold starting even with good plugs; the part is roughly €150 to €200 and replacement is easy. Symptoms of either are long cranking and white smoke on a cold morning, so always view the car with a genuinely cold engine.
Electrical faults from control modules and oil contamination
€200 - 1,00010 of 13
A tired battery, the front control module and an oil-soaked alternator produce scattered symptoms · more· less
Scattered electrical symptoms are common on this generation: windows behaving oddly, wipers or lights acting on their own, seat heaters failing, and stored fault codes across several modules. The most frequent underlying cause is simply a tired battery or corroded terminals, and a good battery clears a surprising number of complaints, so budget €150 to €250 there before assuming a module has failed. The front control module and the integrated power module behind the fuse panel do fail, at €300 to €700 for a used or rebuilt unit plus coding. A Jeep-specific quirk is the oil filler cap seal: if the cap is refitted with bent prongs it weeps oil directly onto the alternator, which then fails early at €400 to €700. Also check for chafed wiring under the battery tray, which caused intermittent no-start complaints on 2007 cars and was covered by a workshop bulletin.
NAG1 gearbox conductor plate and valve body wear
€500 - 2,00011 of 13
The Mercedes NAG1 five-speed's 13-pin connector leaks fluid and the plate fails into second-gear limp mode · more· less
The 3.0 CRD uses the Mercedes five-speed automatic that Chrysler badged NAG1. Jeep's 2005 European specification names it the W5A580, while the technical specification current in September 2009 lists the diesel gearbox as the W5J400 and reserves the W5A580 for the 3.7-litre petrol, so confirm the designation for the model year in front of you. Its known weak point is the conductor plate, the internal circuit pack carrying the speed sensors: the 13-pin connector on the side of the case leaks fluid into the harness, producing harsh cold shifts, codes P0717 or P0720, and limp mode locked in second gear. Contaminated fluid also scores the solenoid bores in the valve body, giving harsh 2-3 upshifts and flare on the 3-4 change. Chrysler marketed the fill as lifetime; Mercedes specifies a 40,000 to 60,000 km drain and fill with MB 236.14 fluid, and the gearboxes that survive best belong to owners who followed the Mercedes interval. A conductor plate and connector replaced with a fluid service is €500 to €900. A valve body overhaul is €1,200 to €2,000. Fluid weeping around the connector on the side of the case is the early warning.
Transfer case and electronic differential wear
€600 - 2,50012 of 13
Quadra-Drive II clutch packs and the transfer case rear output seal wear at high mileage · more· less
Quadra-Trac II and Quadra-Drive II use the NV245 transfer case with an electronically controlled clutch pack, and Quadra-Drive II adds electronic limited-slip differentials. Two patterns show up at high mileage. The rear output seal and yoke wear as the mainshaft develops end float, giving a fluid leak and eventually damage to both parts, at €600 to €1,200 to put right. The clutch pack itself glazes and slips, which shows as a Service 4WD message, a whine under light throttle, or driveline bind on tight turns; a rebuilt or good used transfer case fitted is €1,500 to €2,500. Mismatched tyre sizes, or one badly worn tyre on an axle, accelerate this because the control module reacts to the permanent speed difference. Fresh transfer case fluid every 60,000 km is cheap insurance and is skipped on most cars.
Crankshaft and rod bearing wear
€4,000 - 9,00013 of 13
Early OM642 bottom ends can wear their bearings, almost always after oil loss or contamination · more· less
The OM642 variants fitted to this car are early builds, and their main and rod bearings are the recognised weak point of the bottom end; Mercedes revised the design around 2010. In practice this is rarely a spontaneous failure. It follows oil starvation or dilution, most often from an oil cooler leak that was topped up rather than repaired, or from long-overdue oil changes on the wrong oil specification. The warning signs are a metallic tick at warm idle, a deeper knock from low in the block under load, and low oil pressure. There is usually no fault code, so it is diagnosed by ear, by oil analysis and by reading oil pressure on a scan tool. A bottom-end rebuild is €4,000 to €6,000 and a good used or reconditioned engine fitted is €6,000 to €9,000, which on a car worth €6,000 to €9,000 normally ends its life. Examples with a documented oil cooler repair and consistent oil changes are far less exposed.
Durable Mercedes engine, but the oil leaks are close to universal
The OM642 V6 is the same engine Mercedes used in the ML and E-Class of the period, and it regularly passes 300,000 km. What defines ownership here is oil: the oil cooler seals in the engine valley harden and weep, and the turbo inlet hose seal drips oil into the swirl motor and intake. Both are labour-heavy rather than technically difficult, and an example where they have already been done properly is worth paying more for. Almost everything else is age rather than design: corrosion, front control arm ball joints, glow plugs and the ageing NAG1 gearbox electronics. Plan for one significant engine-bay job within the first two years of ownership.
Service history
Complete records matter more than mileage here. Look for evidence the engine was serviced by a workshop that knows the OM642, and check which oil specification was used.
Tires
Check tread depth, date codes and that all four tyres are the same size and make. Mismatched tyres wear the transfer case clutch pack.
Cold start
The engine must be genuinely cold. Listen for long cranking, a metallic tick at idle, and watch for white smoke that does not clear.
Test drive
At least 30 minutes including motorway speeds so the gearbox, turbo and particulate filter all reach normal operating temperature.
Specific for this vehicle
Inspect the engine valley and bellhousing drain for oil
Look for oil weeping from the drain hole at the back of the block and pooling between the cylinder banks. This is the oil cooler seal and it is the most expensive routine job on the car.
Check the swirl motor connector and turbo inlet hose
Unplug the swirl flap motor under the charge pipe. Oil inside the connector means the hose seal is leaking and the motor is on borrowed time. Ask whether the updated black-seal hose was fitted.
Scan with Mercedes-capable diagnostic equipment
A Jeep-only scan tool will not read the OM642 engine, particulate filter or emissions modules. Check for P2015, P0234, P0299, P0401, P1648, P0717 and P0720, and read the injector correction values.
+ 6 more checksShow less
Confirm the transfer case neutral-shift recall was carried out
Campaign N23 covers the whole 2005-2010 production run and was carried out in Germany from June 2013. Ask a dealer to check the VIN in the European campaign record.
Read particulate filter soot and ash load on cars built from late 2006
Read the values on a scan tool rather than trusting the dashboard. Ask how the car has been used; a short-trip history usually means a filter near the end of its life.
Rock each front wheel and drive over broken surfaces
Play at 12 and 6 o'clock, or a clunk over bumps, means control arm ball joints. Separate upper and lower joints are available for this generation, but most workshops price the repair as a complete arm.
Inspect the car on a lift for corrosion
Check the subframe, control arms, sill seams, rear wheel arch lips and the lower tailgate. Seized suspension fasteners add hours to every later repair.
Look for fluid weeping at the gearbox 13-pin connector
Fluid around the connector on the side of the gearbox case is the early warning for conductor plate failure. Also ask when the gearbox fluid was last changed; lifetime fill is not a good answer.
Check the alternator and oil filler cap area for oil
A badly seated oil filler cap drips oil onto the alternator and kills it early. Also look for chafed wiring under the battery tray on 2007 cars.
Recalls and Technical Service Bulletins
Transfer case can shift unintentionally into neutral, campaign N23 (2005-2010 Grand Cherokee)Critical - verify completed
Front brake caliper material defect, campaign G35 / DVSA R/2007/159 (built May to July 2007)Verify completed
Ignition switch campaign P41 (US-built 2005-2007 Grand Cherokee and Commander; published by the Polish UOKiK for cars sold in Poland and by the Greek regulator for 662 vehicles, so coverage follows the market of first sale and the VIN)Critical - verify completed
Wireless ignition node module can stick between start and run, campaign P57 (Italian campaign notice: vehicles built January 2007 to May 2008)Verify if applicable
Contact a Jeep dealer with the VIN to verify all recalls have been completed. The transfer case neutral-shift campaign is the one to check first: it covers the whole 2005-2010 production run and ran in Germany from June 2013 across 12,236 vehicles, with the KBA handling owner notification. The P41 ignition switch campaign was published market by market rather than Europe-wide, by the Polish UOKiK for cars sold in Poland and by the Greek regulator for 662 vehicles, so whether a particular car is covered depends on where it was first sold and on the VIN. Many published Grand Cherokee campaign numbers online are North American and never ran as European campaigns, so ask the dealer for the European campaign record rather than relying on a US recall lookup.
Warranty Status
Factory warranty (2 years)Expired on every WK Grand Cherokee
Rust perforation warrantyTerm was country-specific and has expired on this generation
Third-party used-car warrantyAvailable in Germany, Austria and the Netherlands; check the exclusion list
WK production ended in March 2010, so Jeep's standard two-year European factory warranty has long expired on every example, as has the separate rust perforation cover, whose term was set country by country rather than Europe-wide. Third-party used-car policies are widely sold in Germany, Austria and the Netherlands, but they commonly exclude oil leaks, turbochargers, particulate filters and wear items, which is most of what this engine actually costs money on. Read the exclusion list before paying for cover.
Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.
This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
