Jeep Cherokee 2.8 CRD KJ

2002-2007Last updated: August 2026 · How this report is builtAugust 2026

2002-2007 · 2.8 CRD VM Motori R428 (150-163 hp) 4-cylinder turbodiesel

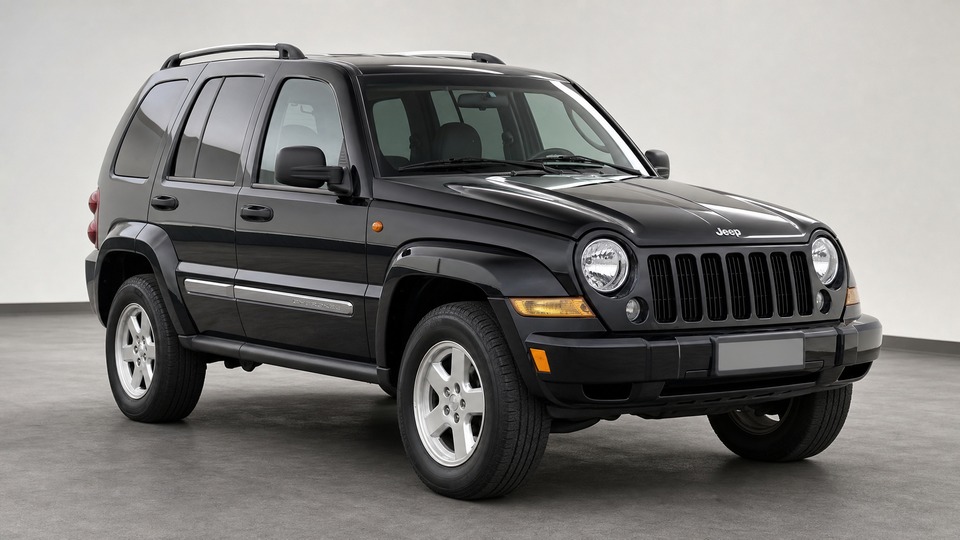

Jeep Cherokee 2.8 CRD KJ — Render © Car Checker

The Cherokee KJ was Jeep's mid-size SUV sold in Europe from 2001 to 2007, positioned below the Grand Cherokee. The Italian-built VM Motori 2.8 CRD, available in Europe from late 2002, was the most popular engine in European markets, offered with 150 hp before the 2005 facelift and 163 hp after it. Available with a 5-speed automatic or 6-speed manual gearbox and either Command-Trac part-time or Selec-Trac full-time four-wheel drive, it remains valued by off-road enthusiasts for its compact dimensions and capable chassis.· more· less

Genuine off-road capability Strong enthusiast parts support

Thin dealer network in Europe VM Motori diesel needs monitoring

Buy if: You want an affordable diesel 4x4 with real off-road ability and are prepared to maintain a car with several documented weak points.

Avoid if: You need a low-maintenance daily driver or lack access to a specialist who knows the VM Motori 2.8 CRD and 545RFE automatic.

Maintenance costs

€900 – €1,750/year

at 15,000 km/year

Fixed costsservice, tyres, brakes €500 – €900 /yr

Risk bufferunplanned repairs €400 – €850 /yr

Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.

Maintenance costs

€900 – €1,750 per year

€500 – €900

service, tyres, brakes

€400 – €850

repair buffer

Buying a used Jeep Cherokee? Check its history.

carVertical scans 1,000+ databases for damage, mileage rollbacks, theft records and ownership changes. Save 20% with code CARCHECKER.

Affiliate link. Discount code CARCHECKER applied automatically.

Buying a used Jeep Cherokee? Check its history.

carVertical scans 1,000+ databases for damage, mileage rollbacks, theft records and ownership changes. Save 20% with code CARCHECKER.

Affiliate link. Discount code CARCHECKER applied automatically.

Common Problems

545RFE automatic transmission valve body wear

€1,500 - 3,5001 of 8

ATF degradation wears aluminium solenoid bores, causing harsh shifts and limp mode · more· less

The 545RFE 5-speed automatic handles 400 Nm of diesel torque and is sensitive to ATF condition. Degraded or overheated fluid wears the aluminium solenoid bores in the valve body, dropping line pressure and causing harsh gear engagement, flare on upshifts, or full limp mode. Stop-start traffic and towing without an auxiliary cooler accelerate the problem significantly. A separate cold engagement delay of 1-3 seconds when shifting into Drive or Reverse from cold is caused by ATF draining from the torque converter overnight through the OEM cooler return filter (addressed on 2002-2006 cars by TSB 21-015-05 with an upgraded filter). A valve body rebuild costs approximately €1,500-2,000. A full transmission rebuild including torque converter and cooler lines runs €3,000-3,500 fitted. The 6-speed NSG370 manual gearbox, where fitted, is significantly more reliable and avoids this entire risk category.

Injector seal leak (Black Death)

€400 - 2,0002 of 8

Copper seals fail and combustion gases build up a hard carbon crust around the injectors · more· less

The copper crush seals below each injector degrade over time, allowing combustion gases to escape and creating a tar-like carbon buildup known as 'Black Death' in the Jeep community. If caught early, replacing all four copper seals costs approximately €400-600 at a diesel specialist. If ignored, the carbon can seize an injector into the cylinder head, requiring injector extraction tools and potentially new injectors at €300-500 each. When inspecting under the rocker cover, look for black crusty carbon deposits around the injector wells. Preventive replacement of all seals every 100,000-150,000 km is widely recommended.

Turbocharger VGT vane sticking (163 hp facelift)

€500 - 2,0003 of 8

On the 163 hp facelift engine, carbon locks the Garrett VGT vanes, causing underboost, black smoke, or limp mode · more· less

The variable-geometry turbocharger arrived with the 163 hp facelift engine, so this failure mode applies to facelift cars; the pre-facelift 150 hp version does not have VGT vanes. The Garrett variable-geometry turbocharger uses vacuum-actuated vanes that sit in the hottest, sootiest part of the exhaust stream. Carbon deposits gradually lock the vanes, producing a P0299 underboost fault, poor throttle response, black smoke, or limp mode. A vane clean at a turbo specialist costs €500-800. If the internals are damaged, a reconditioned turbo runs €1,000-1,500 and a new OE Garrett unit €1,800-2,000 fitted. Short-trip city driving and infrequent motorway use accelerate the problem. A dirty MAF sensor can trigger a false P0299 code, so proper diagnosis before committing to turbo work is essential.

EGR valve and intake manifold carbon buildup

€300 - 8004 of 8

Intake manifold clogs with soot from the EGR system, restricting airflow and causing power loss · more· less

The EGR valve recirculates exhaust gas into the intake, depositing soot on the intake manifold walls and swirl flaps. The buildup can reach several millimetres thick, severely restricting airflow. Symptoms include rough idle, poor throttle response, increased fuel consumption, and eventually limp mode. Cleaning the intake manifold and EGR valve costs €300-600 at a diesel specialist. The swirl flap actuator rods are plastic and can wear or seize over time. City-only driving dramatically accelerates this issue. The MAP sensor above the manifold also accumulates oil mist and should be cleaned during any EGR service.

Body and subframe corrosion

€500 - 2,5005 of 8

Door bottoms, wheel arches, subframe welds, and rear hinge area corrode, especially in Northern Europe · more· less

As 19-24 year old vehicles, KJ Cherokees in Northern Europe are now at the age where structural corrosion becomes a significant concern. The most common areas are the lower edges of doors, front and rear wheel arches, rocker panels, subframe welds, and the area around the rear tailgate hinges where salt and moisture accumulate. Foam sound-deadening material stuffed into the rear quarter panels can trap moisture and accelerate hidden corrosion from the inside. Surface rust treatment costs €500-1,000, while structural repairs to subframe sections or floor panels can reach €2,000-2,500. Cars from Southern European or dry climates are significantly less affected.

Viscous fan clutch failure

€250 - 5006 of 8

The engine has a belt-driven viscous fan alongside an electric radiator fan; a worn clutch leads to overheating at idle · more· less

The 2.8 CRD is cooled by a belt-driven viscous fan clutch working alongside an electric radiator fan. The viscous clutch should engage firmly when the engine is hot. When the silicone fluid inside the clutch degrades with age, the fan spins freely regardless of engine temperature, causing overheating at idle and in slow traffic, particularly with the air conditioning on. An aftermarket viscous clutch costs €120-200 and an OEM unit €250-350, plus approximately €100-150 labor. Testing is straightforward: with a hot engine turned off, the fan blade should be very stiff to turn by hand. If it spins freely when hot, the clutch has failed.

Glow plug control module failure

€400 - 8007 of 8

Original ceramic glow plugs fail prematurely, requiring a full system upgrade to metallic plugs · more· less

The original 7-volt ceramic glow plugs are a documented weak point and can fail well before their expected service life, causing hard cold starts and rough running until the engine warms up. Chrysler discontinued the original ceramic plugs, and TSB 08-005-11 (2005-2006 2.8 CRD) sets out the replacement procedure: all four metallic 5-volt glow plugs, a new glow plug control module, and an ECM reflash to match the new plug characteristics. Parts cost approximately €250-400 for the complete set, plus €150-400 labor. Many KJs have already had this update performed by previous owners, so checking service records for evidence of this work is important. If the car starts well from cold without extended cranking, the update has likely been completed.

Fuel system air ingress

€100 - 4008 of 8

No lift pump means air leaks in the fuel lines cause extended cranking and hard starting · more· less

The 2.8 CRD fuel system relies on the high-pressure pump to draw fuel directly from the tank without a dedicated lift pump, making the system vulnerable to air leaks at any connection point. The most common leak source is the fuel filter heater connector, which cracks with age and allows air into the system. Symptoms include extended cranking times of 10-30 seconds, particularly after the car has sat overnight. The repair is usually straightforward once the leak source is identified: a new filter connector costs €30-80 and a complete fuel filter housing €100-250, plus €50-150 labor. All fuel line connections and O-rings should be inspected systematically during diagnosis.

Demanding ownership but a robust engine when maintained by a specialist

The VM Motori 2.8 CRD engine block is fundamentally strong and many examples exceed 250,000 km. However, the emissions system (EGR, swirl flaps), turbocharger, fuel system, and particularly the 545RFE automatic transmission all require proactive attention and timely servicing. European-market KJs have a very thin manufacturer dealer network, making independent Jeep specialists essential for cost-effective ownership. The 6-speed manual gearbox eliminates the single largest risk item. Budget for higher-than-average maintenance and ensure access to a workshop experienced with this engine and drivetrain combination.

Pre-Purchase Inspection Checklist

Viewing checklist for the Jeep Cherokee 2.8 CRD KJ

A printable one-page A4 checklist for this model.

General checks

Service history
Complete records are essential, especially evidence of timing belt replacement and ATF changes. Verify oil grade (must be full synthetic).
Tires
Check tread depth, age (date codes), and uneven wear patterns. Uneven wear may indicate suspension or alignment issues from off-road use.
Cold start
Must start the engine completely cold. Listen for glow plug operation, cranking duration, and any roughness in the first 30 seconds.
Test drive
Minimum 30 minutes including urban stop-start, motorway, and hill driving to bring the engine and gearbox fully up to temperature.

Specific for this vehicle

Inspect under rocker cover for Black Death carbon
Ask the seller to remove the rocker cover or at minimum inspect around the injector wells. Black crusty carbon deposits indicate leaking injector seals.
Test automatic gearbox engagement and shift quality
From cold, shift into Drive and Reverse. Any delay over 2 seconds suggests the cooler return filter or valve body needs attention. Drive through all gears and feel for harsh shifts or flare.
Check all body panels and subframe for corrosion
Inspect door bottoms, wheel arches, rocker panels, subframe welds, and the area around the rear tailgate hinges. Use a torch to check inside the rear quarter panels.

+ 6 more checksShow less

Verify timing belt replacement history
The 2.8 CRD is an interference engine with a 100,000 km timing belt interval. A snapped belt destroys the engine. Demand documented proof of replacement.
Test turbo operation under load
On the motorway or an uphill stretch, check for hesitation, black smoke, or limp mode under full throttle. The turbo should deliver smooth, progressive boost.
Check viscous fan with hot engine
After the test drive with a hot engine, turn off and try to spin the fan by hand. It should be very stiff. If it spins freely, the viscous clutch has failed.
Identify 4WD system and test operation
Determine whether the car has Command-Trac (part-time, NV231) or Selec-Trac (full-time, NV242). Test all modes on appropriate surfaces. Command-Trac must not be used in 4WD on dry pavement.
Check coolant condition and type
The 2.8 CRD requires HOAT coolant. Wrong coolant type causes gelling that blocks the radiator. Check for discolouration, jelly-like consistency, or contamination.
Listen for extended cranking on cold start
Cranking longer than 5 seconds suggests fuel system air ingress (cracked filter heater connector) or failed glow plugs. Both are fixable but indicate deferred maintenance.

Recalls and Technical Service Bulletins

Rear lower control arm structural integrity (UK recall R/2018/202, approximately 56 vehicles built 29 April 2003 to 29 June 2007) Verify completed

Blower motor can overheat and cause a fire (UK recall R/2007/088/G03, 2,207 vehicles built 1 January 2006 to 1 June 2007) Verify completed

Glow plug system upgrade: ceramic to metallic plugs with new control module and ECM reflash (TSB 08-005-11, 2005-2006 2.8 CRD, a service bulletin rather than a recall) TSB

Transmission cooler return filter upgrade (TSB 21-015-05, cold engagement delay, 2002-2006 KJ with 45RFE or 545RFE) TSB

Contact a Chrysler/Jeep dealer or specialist with the VIN to check whether the two safety recalls above apply to your car's build date and have been completed. The glow plug and transmission filter entries are technical service bulletins rather than safety recalls, so on a car of this age they are paid work. The Jeep dealer network for KJ-era vehicles is very limited in most European countries. Independent Jeep specialists and the jeepkj.com community can often help verify recall status.

Warranty Status

Factory warranty (2 years) Expired on all KJ Cherokee models

Extended warranty availability Not available through Jeep for vehicles of this age

Rust perforation warranty Long expired

All KJ Cherokee models are 19-24 years old and well beyond any factory or extended warranty coverage. Budget all repair costs as owner-funded. Third-party warranty providers rarely cover vehicles of this age and complexity.

↔ Also consider

Jeep Grand Cherokee 3.0 CRD WK2 2011-2020

Larger, more refined Jeep with the related VM Motori 3.0 V6 CRD. Shares similar EGR concerns but adds oil cooler and crankshaft bearing risks.

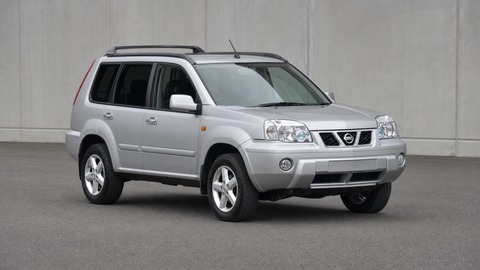

Nissan X-Trail 2.2 dCi T30 2001-2007

Same era diesel SUV. YD22 engine is generally more robust. Watch for turbocharger failures and ECU water ingress on early models.

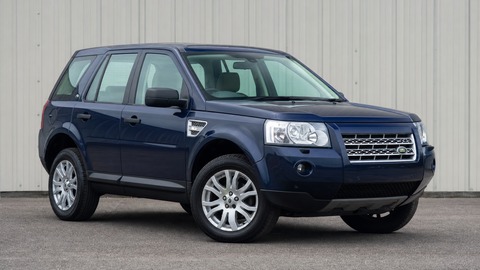

Land Rover Freelander 2.2 TD4 L359 2006-2014

More refined on-road. Known for rear differential bearing and EGR cooler failures. Higher parts costs but wider dealer network in Europe.

Toyota RAV4 2.2 D-4D XA30 2006-2012

Significantly more reliable overall. Head gasket failures on pre-2010 models are the main concern. Much cheaper to maintain long term.

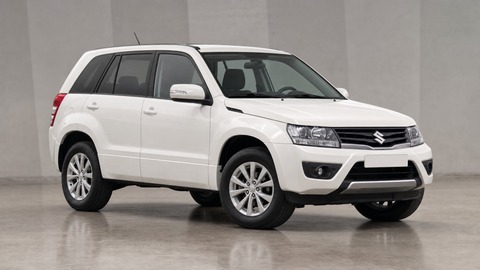

Suzuki Grand Vitara 1.9 DDiS JT 2005-2015

Simpler, more reliable platform with the proven Renault F9Q diesel. Less powerful but fewer expensive surprises.

This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
