Jaguar XK8 4.0 V8 X100

1996-2002Last updated: August 2026 · How this report is builtAugust 2026

1996-2002 · 4.0L AJ26/AJ27 V8 (280 hp) naturally aspirated petrol

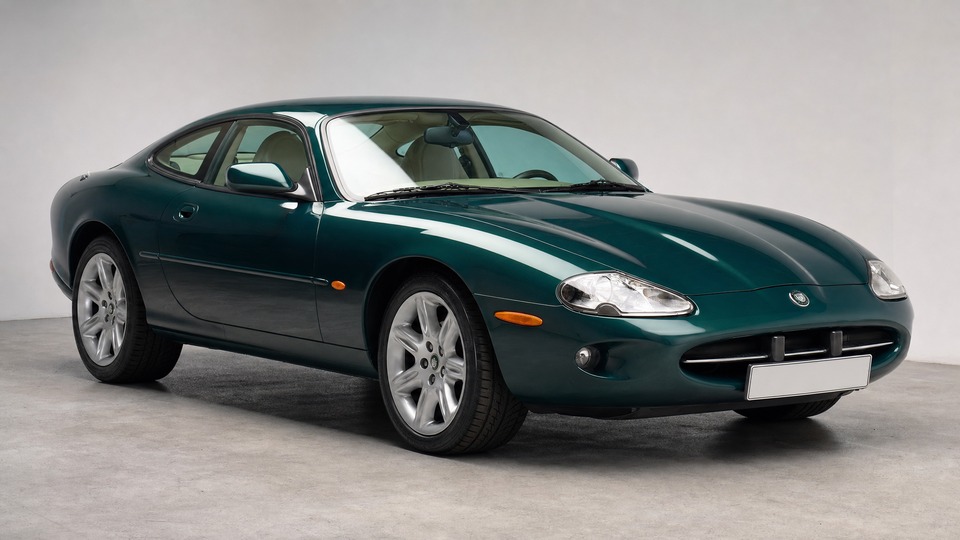

Jaguar XK8 4.0 V8 X100 — Render © Car Checker

The XK8 replaced the legendary XJS in 1996 and was Jaguar's flagship grand tourer for a decade. The 4.0-litre AJ-V8 was an all-new engine for Jaguar and produces 280 hp in the naturally aspirated XK8 covered here. With production ending over twenty years ago, this is now a classic-adjacent purchase where the condition of the individual car matters far more than model-year generalizations. Beautiful, comfortable, and surprisingly capable, but only rewarding if the previous ownership and maintenance history were diligent.· more· less

Striking design, strong GT character AJ-V8 is robust when maintained

Catastrophic tensioner/Nikasil risks Corrosion can be terminal and hidden

Buy if: You find a post-1999 car with metal secondary timing chain tensioners proven by engine number or a documented retrofit, complete specialist service history, and verified structural integrity.

Avoid if: You want low-cost GT ownership or cannot budget for thorough pre-purchase inspection and ongoing specialist maintenance.

Maintenance costs

€1,400 – €2,800/year

at 15,000 km/year

Fixed costsservice, tyres, brakes €800 – €1,400 /yr

Risk bufferunplanned repairs €600 – €1,400 /yr

Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.

Maintenance costs

€1,400 – €2,800 per year

€800 – €1,400

service, tyres, brakes

€600 – €1,400

repair buffer

Buying a used Jaguar XK? Check its history.

carVertical scans 1,000+ databases for damage, mileage rollbacks, theft records and ownership changes. Save 20% with code CARCHECKER.

Affiliate link. Discount code CARCHECKER applied automatically.

Buying a used Jaguar XK? Check its history.

carVertical scans 1,000+ databases for damage, mileage rollbacks, theft records and ownership changes. Save 20% with code CARCHECKER.

Affiliate link. Discount code CARCHECKER applied automatically.

Common Problems

Timing chain tensioner failure (plastic secondary tensioners)

€1,500 - 8,0001 of 8

Plastic tensioners crack and disintegrate, allowing chains to jump teeth and potentially destroy the engine · more· less

Most 4.0-litre AJ-V8 engines were fitted with plastic-bodied secondary timing chain tensioners, but not all of them: engines from serial number 0108130000 onwards left the factory with the metal-bodied generation, so applicability is an engine-number and component check rather than a model-year rule. These tensioners degrade over time, crack, and can disintegrate. When a tensioner fails, the secondary chain goes slack, can jump teeth, and cause the exhaust cam to stop turning. If this happens while driving, exhaust valves collide with pistons and the engine is destroyed. Symptoms include a rattle on cold start lasting 1-30 seconds as oil pressure rebuilds and takes up chain slack. The revised metal-backed tensioners from the later 4.2-litre engine can be retrofitted. If only the tensioners need replacing and no chain damage has occurred, the job costs around €1,500-2,500 at a specialist (roughly 10-16 hours labour). If the chain has already damaged valves, engine rebuild or replacement becomes necessary at €5,000-8,000. This is the single most important check on any 4.0 XK8. Cars with a late engine number or a documented metal tensioner upgrade in their service history carry substantially less risk.

Nikasil bore liner degradation (pre-2001 engines)

€5,000 - 8,0002 of 8

Sulphuric acid from high-sulphur fuel corrodes the Nikasil cylinder lining, causing compression loss · more· less

All AJ-V8 engines built before approximately mid-2000 used Nikasil-coated aluminium cylinder bores. High-sulphur fuel, particularly in the US and UK, caused sulphuric acid to form and eat through the Nikasil coating. Affected engines lose compression progressively, showing difficulty starting (especially hot restart), rough idle, and power loss. Jaguar switched to conventional steel liners around model year 2001. In 2026, most severely affected engines have already failed and been replaced or re-sleeved, so survivors are either unaffected or have already been remedied. However, a compression test remains essential on any pre-2001 car. If an engine does need re-sleeving, the block must be removed and machined for steel liners at €5,000-8,000 including labour. European low-sulphur fuel standards since 2005 mean the remaining Nikasil engines are no longer actively degrading, but the damage is cumulative and irreversible.

Water pump impeller disintegration

€400 - 9003 of 8

Plastic impeller blades break apart, causing sudden overheating · more· less

The original water pump on the 4.0 AJ-V8 uses a plastic impeller that becomes brittle with age and heat cycling. When blades break off, coolant circulation drops immediately and the engine overheats rapidly. On a 25+ year old car, the original pump should have been replaced long ago, but many have not. The improved replacement pump with a more durable impeller is widely available. Parts cost around €100-150, and labour is approximately 2.5 hours including thermostat replacement. Total cost at a specialist is €400-900 depending on whether additional cooling components are replaced at the same time. On any pre-purchase inspection, confirm whether the water pump has been replaced. If the car still has its original pump, budget for immediate replacement.

Structural corrosion (chassis legs and sills)

€1,200 - 4,0004 of 8

Hidden rot in front chassis legs and sills can make the car structurally unsound and uneconomical to repair · more· less

The XK8's most common rust areas are the front chassis legs behind the subframe mounting turrets, the sills (especially at each end where dirt accumulates), the rear chassis rails, and floor sections. The front chassis legs are the most critical because they are structural and hidden: you must turn the steering to full lock and inspect from inside the front wheelarch with a torch. Significant corrosion here requires removing the front subframe and welding in repair panels. A specialist estimate for welding both chassis legs, replacing the V-mount brackets and front bushes, rust-proofing, and resetting suspension geometry is approximately €1,200-1,500. If the corrosion extends to rear rails or floor panels, costs escalate to €2,500-4,000 or more. On a car now 20-30 years old, structural corrosion is the most common reason an otherwise running XK8 becomes uneconomical. Any car that has spent its life in a coastal or heavily salted region needs extremely careful inspection.

ZF 5HP24 automatic transmission deterioration

€2,000 - 5,0005 of 8

Clutch drum A failure and valve body issues cause gear engagement problems · more· less

The 4.0 XK8 uses the ZF 5HP24 five-speed automatic. The ZF unit shares known weaknesses across all its applications in BMW, Audi, and Land Rover. The most common failure is damage to clutch drum A caused by sudden hydraulic pressure increases, resulting in hesitation at take-off or failure to engage forward gears. Valve body wear causes harsh or delayed shifting. The transmission was marketed as sealed-for-life, but specialists recommend fluid and filter changes every 50,000-60,000 km. On a car now 20+ years old, a transmission that has never had its fluid changed is a significant risk. A valve body rebuild costs €1,500-2,500, while a full transmission rebuild runs €3,500-5,000. Ask for evidence of at least one fluid and filter service before committing.

Ignition coil pack failure

€300 - 8006 of 8

Coil-on-plug units fail causing misfires, rough running, and catalytic converter damage · more· less

The AJ-V8 uses eight individual coil-on-plug ignition coils. These are a known wear item on the 4.0 engine and frequently fail after 80,000-120,000 km, causing misfires on one or more cylinders. Symptoms include rough idle, engine management warning light, and in severe cases a flashing check engine light indicating catalyst-damaging misfires. Individual coils cost €25-40 each, and most specialists recommend replacing all eight at once along with new spark plugs when one fails. A complete set of eight coils plus plugs and labour runs €300-800 depending on parts quality.

Convertible roof hydraulic system failure

€1,000 - 2,5007 of 8

Hydraulic fluid gels and congeals over time, destroying seals and blocking lines · more· less

Convertible XK8s use a complex hydraulic system for the power-operated soft top. The original Univis hydraulic fluid degrades over time, especially in cars that sit unused for extended periods. The fluid evaporates and gels, forming hard deposits that lodge in seals and act as temporary plugs. When the fluid is eventually flushed, these deposits wash away and reveal hidden seal damage, often causing leaks in the ram seals and hydraulic lines. Jaguar recommends hydraulic fluid replacement every five to six years, but many cars have never had this done. A full hydraulic system rebuild including new lines, rebuilt rams, latch mechanism, and pump overhaul costs €1,500-2,500 at a specialist. If buying a convertible, test the roof operation multiple times during the viewing and budget for a hydraulic refresh if there is no record of recent fluid service. This issue does not apply to the coupe.

Electrical system gremlins

€200 - 1,5008 of 8

Window regulators, central locking, instrument cluster, and climate control modules fail with age · more· less

The X100 was an advanced car for its era, and its electrical systems have not aged gracefully. Common failures include window regulator motors (especially driver's side), central locking actuators, instrument cluster pixel dropout, climate control module failure, and intermittent warning lights. Individual repairs are relatively inexpensive at €100-300 each, but on a neglected car multiple systems can fail simultaneously. The coolant level sensor in the expansion tank is a notorious false-alarm trigger, showing LOW coolant when the tank is actually full. While rarely dangerous, accumulated electrical faults significantly reduce the car's usability and value.

Condition-dependent: a good one is rewarding, a bad one is a money pit

The Jaguar XK8 4.0 is a car where individual condition dominates statistical reliability. A well-maintained post-1999 car with metal secondary tensioners proven by engine number or a documented retrofit, steel-sleeved or late-build engine, complete specialist service history, and no structural corrosion can be a genuinely enjoyable grand tourer. But a cheap, poorly documented car with unknown tensioner status and hidden rust can quickly consume its own purchase price in repairs. On a car now 25-30 years old, there are no shortcuts: a thorough specialist pre-purchase inspection is essential, and previous owner quality matters more than anything else.

Pre-Purchase Inspection Checklist

Viewing checklist for the Jaguar XK8 4.0 V8 X100

A printable one-page A4 checklist for this model.

General checks

Service history
Complete Jaguar specialist records are essential. Gaps suggest neglected maintenance on a car that cannot tolerate it.
Tires
Check tread depth, age (date codes), and uneven wear. Original size is 245/50 R17 or 255/45 R18.
Cold start
Engine must be started completely cold. Listen carefully for any rattling in the first 30 seconds. This is the most important single test.
Test drive
Minimum 30 minutes including varied speeds. Monitor temperature gauge carefully for any movement above normal.

Specific for this vehicle

Listen for timing chain rattle on cold start
Start the engine stone cold. Any rattle, clatter, or metallic noise in the first 30 seconds indicates worn or failing tensioners. Walk away unless the price reflects a full engine job.
Verify timing chain tensioner status
Check the engine number first: engines from 0108130000 onwards already left the factory with metal-bodied secondary tensioners. On an earlier engine, ask for documentation that the plastic secondary tensioners have been replaced with the metal-backed upgrade from the later 4.2 engine. If no record exists, assume they are original and budget accordingly.
Compression test (pre-2001 cars)
On any pre-2001 car with a Nikasil-lined engine, a compression test is mandatory. All eight cylinders should read within 10% of each other. Low or uneven compression indicates bore liner failure.

+ 5 more checksShow less

Inspect front chassis legs for corrosion
Turn steering to full lock and examine the rear of the front wheelarch with a torch. Look for rust, bubbling paint, or previous welding on the chassis legs behind the subframe turrets.
Check sills at both ends
The rear of each sill is visible, but the front is hidden under a cover and mudflap. Remove the cover and check for rust. Bubbling or soft metal means structural rot.
Test coolant system thoroughly
Check coolant level and colour (should be clean, not brown or milky). Run the engine to operating temperature and watch for leaks around thermostat housing, hoses, and water pump. Verify the coolant LOW warning is not triggered falsely.
Test transmission in all gears
The ZF 5HP24 should shift smoothly through all five gears. Feel for hesitation on takeoff, harsh shifts, or slipping. Check transmission fluid colour if possible: the specified ZF LifeguardFluid 5 (Jaguar JLM 20238) is tan, not red, so judge it on darkening and burnt smell rather than on colour alone.
Test convertible roof operation (convertible only)
Operate the roof at least three full cycles open-close. Watch for slow operation, hesitation, or jerky movement. Check under the tonneau for hydraulic fluid leaks. Ask when the hydraulic fluid was last replaced.

Recalls and Technical Service Bulletins

Final drive output shaft retaining ring (VIN 001531-006306, 1997) Verify completed

Throttle cable bracket detachment (1998 models) Verify completed

Automatic gearbox could lock below 15 mph (UK recall R/1999/044, 30 June 1999; limited VIN range, remedy was gearbox replacement) Verify with VIN

Contact Jaguar with the VIN to verify all recalls and service actions have been completed. The rear suspension fulcrum bolt item (Jaguar Service Action S468, bulletin 204-10, VIN 025588-026519, 1998) is a service action rather than a safety recall, so ask separately whether it was carried out. On a car this age, recall compliance is difficult to verify independently. Cars with complete dealer service history will have records of any recall work performed.

Warranty Status

Factory warranty (3 years / unlimited km) Expired on all XK8 4.0 models

Rust perforation warranty (6 years) Expired on all XK8 4.0 models

Extended warranty availability Limited options for 25+ year old cars; specialist policies may be available

All XK8 4.0 models are well outside any factory or statutory warranty. Extended warranty products for cars of this age are rare and typically exclude pre-existing conditions, making a thorough pre-purchase inspection the only real protection.

↔ Also consider

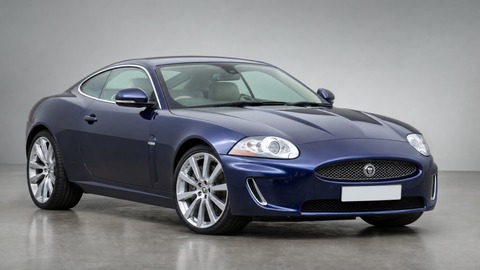

Jaguar XK 4.2 V8 X150 2006-2009

Successor with metal tensioners and improved cooling from factory. ZF 6HP26 mechatronic unit and supercharger coupler are the main concerns. Generally more dependable than the 4.0.

Porsche 911 Carrera 996 1997-2004

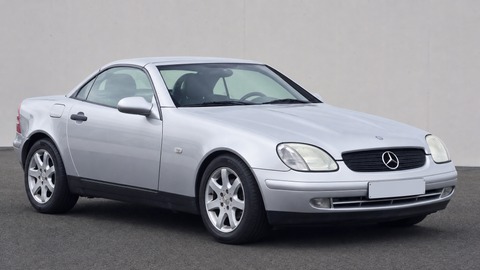

Mercedes-Benz SLK 200 R170 1996-2000

Same era, much simpler engine. Vario roof hydraulics and K40 relay are the main issues. Significantly cheaper to maintain.

Jaguar XK 5.0 V8 X150 2009-2014

Later X150 with the AJ133 V8. Timing chain tensioner concerns persist but the engine is more refined. Higher purchase price but lower risk of catastrophic failure.

Audi TT 1.8T 8N 1998-2006

Same era sporting car with a simpler, proven engine. Ignition coils and cooling plastics are the main concerns. Much cheaper to own and maintain.
