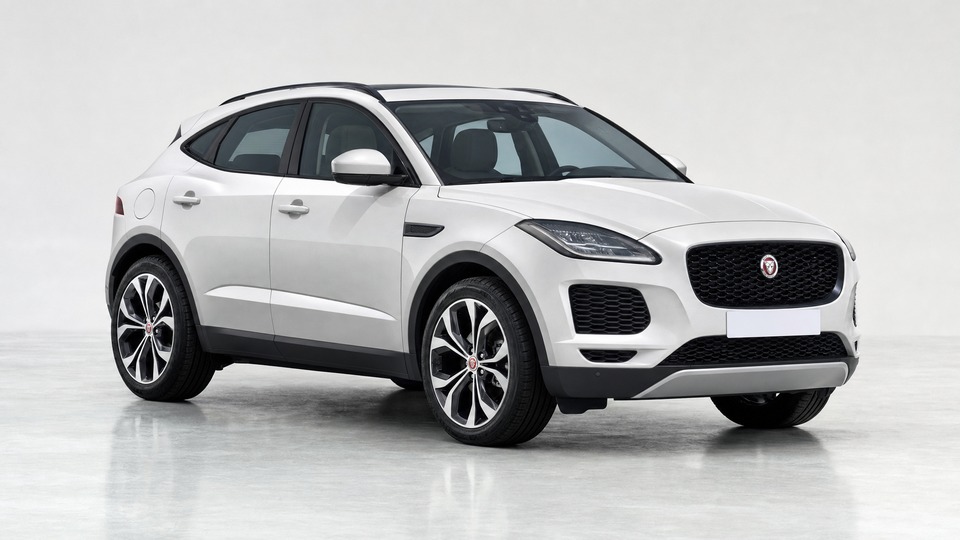

Jaguar E-Pace D180 X540

The 2.0 Ingenium diesel uses a timing chain located at the rear of the engine (flywheel side), requiring gearbox removal for replacement. The chain, guides, and tensioners are prone to premature wear, particularly on pre-2019 production engines. Initial symptoms include a metallic rattle on cold start lasting a few seconds to half a minute. If ignored, the chain can jump timing or snap, causing piston-to-valve contact and catastrophic engine damage. Oil dilution from incomplete DPF regeneration cycles (a particular problem on the E-Pace due to its exhaust routing) accelerates chain wear significantly. Specialist timing chain replacement including both chains, guides, tensioners, idlers, and seals costs approximately €2,000-3,000. If the engine has suffered damage, a reconditioned engine fitted typically costs €4,500-9,000. Post-November 2019 production engines received updated chain components and recalibrated software, reducing but not eliminating the risk. There is no official recall for this issue.

When Jaguar fitted the Ingenium diesel into the E-Pace, the transverse engine layout forced compromises in exhaust routing. The DPF is positioned further from the engine than on the longitudinally-mounted F-Pace or XE, causing greater heat loss in the exhaust system. This makes it significantly harder for the DPF to reach the 600+ degree temperature needed for regeneration. Short trips, urban driving, and cold weather compound the problem. Failed regeneration cycles dump unburnt diesel into the engine oil, diluting it and accelerating timing chain and turbo wear. Forum owners describe the E-Pace as needing regular 30+ minute motorway runs to maintain DPF health. Forced regeneration at a workshop costs €200-400, professional DPF cleaning €400-600, and full DPF replacement €1,500-2,000. Monitor oil level closely: if it rises above the maximum mark, the oil is likely diluted with fuel and needs immediate changing.

Turbocharger failures on the 2.0 Ingenium diesel typically manifest between 60,000-130,000 km as power loss, a high-pitched whistling noise, blue or black smoke from the exhaust, or the car entering restricted performance mode. Root causes include oil starvation from blocked or restricted turbo oil feed pipes, fuel dilution degrading oil quality from incomplete DPF regenerations, and carbon buildup from short-trip driving patterns. If the turbo disintegrates, debris can enter the engine and cause secondary damage. When replacing the turbo, specialists recommend also replacing the intercooler if oil contamination is found, as flushing is rarely effective and residual oil can damage a new turbo immediately. Turbo replacement at a specialist costs approximately €1,500-2,500 for parts and labour. If engine damage has occurred, costs escalate to €5,000-9,000 for a reconditioned engine.

The E-Pace uses the ZF 9HP48 9-speed automatic transmission, which has documented integration issues across the JLR range. Symptoms include jerky gear changes (particularly between 1st and 2nd gear), delayed kickdown response, refusal to select certain gears, and in advanced cases, the transmission remaining in limp mode limiting speed to 50-60 km/h. Problems typically become apparent between 50,000-100,000 km. The torque converter lock-up clutch can develop shudder under light load. Software updates have improved shift quality on later models, but hardware issues with the torque converter and valve body still occur. Transmission fluid should be changed every 60,000 km using ZF LifeGuard 8 oil and a new filter, despite some sources describing the fluid as a lifetime fill. Software update costs €100-300, torque converter replacement €1,200-2,000, and valve body repair €800-1,500.

The Ingenium diesel's high-pressure EGR cooler can develop internal cracks, allowing coolant to leak into the intake manifold. Symptoms include white smoke from the exhaust, gradual coolant loss without visible external leaks, and elevated hydrocarbon readings causing emissions test failures. If left unaddressed, coolant contamination can damage engine internals. Some specialists install upgraded EGR coolers with reinforced welds and recalibrate ECU parameters to reduce recurrence. EGR cooler replacement costs approximately €500-900 at a specialist. If coolant has contaminated the intake system, additional cleaning adds €200-400.

The 2.0 Ingenium diesel uses an electronically controlled solenoid to manage oil flow to the piston cooling jets. The most common failure cause is a coolant leak from the thermostat housing gasket, which drips directly onto the solenoid's electrical connector and damages it over time. This triggers fault code P25A9 and a persistent 'Critically Low Oil' warning message, even when oil level is normal. While the engine does not typically enter limp mode, the constant false warning makes it impossible to detect a genuine low oil situation. Long-term, insufficient piston cooling under load increases internal wear. Replacement including the thermostat housing gasket, new solenoid, fresh coolant, and labour costs approximately €300-700 at a specialist.

All E-Pace diesel models use an SCR (Selective Catalytic Reduction) system with AdBlue (urea) injection to meet EU6 emissions standards. Common failures include NOx sensor malfunction (often from overfilling the AdBlue tank), AdBlue injector crystallization from using non-compliant fluid or extended periods without driving, and AdBlue quality sensor faults. Symptoms include 'Incorrect Diesel Exhaust Fluid Quality' warnings and a countdown timer limiting engine restarts. If the system runs out of AdBlue, the car will not restart until topped up. NOx sensor replacement costs approximately €400-700. AdBlue injector cleaning or replacement costs €200-400. Using only ISO 22241-1 compliant AdBlue and avoiding overfilling helps prevent issues.

E-Pace owners commonly report infotainment screen issues including complete blackouts, frozen displays, unresponsive touch input, and Bluetooth connectivity failures. The InControl Touch Pro system can sometimes be resolved by locking the car, walking away to reset the radar sensors, and restarting. However, persistent issues typically require a dealer software update. In some cases, a faulty SIM card or underpowered battery has been traced as the root cause. Software updates are typically free under warranty but cost €100-200 at a dealer out of warranty. If the display module itself fails, replacement costs €500-800.
