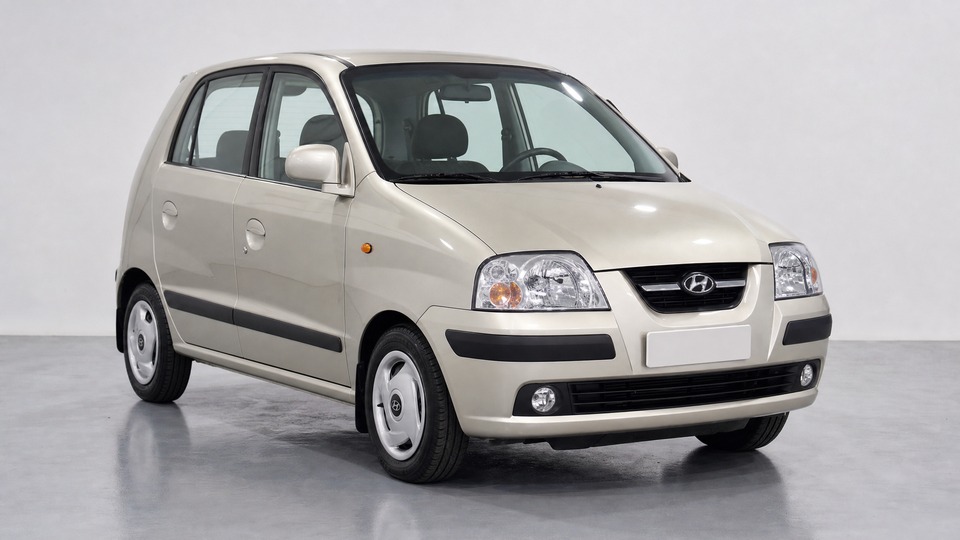

The Hyundai Atos is a budget city car that was among the cheapest new cars available in Europe during its production run. The 1.1 petrol came in two closely related four-cylinder versions: the 43 kW (59 hp) G4HD, fitted from September 2003 to September 2005, and the 46 kW (63 hp) G4HG, fitted from September 2005 until production ended in February 2008. Both are simple units also used in the Kia Picanto SA, the Hyundai Getz and the later i10, paired with a 5-speed manual or optional 4-speed automatic. Parts are extremely cheap and widely available, making it one of the most affordable cars to keep running.· more· less
Crankshaft sprocket wear and position sensor damage
€200 - 8001 of 6
Timing gear keyway wears on the crankshaft, causing the sprocket to wobble and damage the crank sensor · more· less
The cam belt gear on the crankshaft can wear at the key slot, allowing the sprocket to wobble slightly. This wobble causes the timing gear to touch and damage the crankshaft position sensor, resulting in stalling, no-start conditions, and a check engine light (P0335). Replacing just the sensor is cheap (€30-60 for the part), but if the crankshaft keyway is worn beyond tolerance, the crankshaft and gear assembly need replacing, which pushes costs toward €600-800 at an independent shop. This issue typically develops above 100,000 km and is more common on cars that have had infrequent oil changes. A diagnostic scan and visual inspection of the sensor gap can identify the problem before it causes a breakdown.
Water pump failure
€150 - 4002 of 6
Water pump develops leaks, can lead to overheating and secondary engine damage if ignored · more· less
The water pump on both 1.1 versions is a known weak point. Failure typically shows as a coolant leak from the pump housing, a whining noise from the front of the engine, or rising temperature gauge readings. Replacing the water pump alone costs around €150-250 at an independent shop. If the overheating goes unnoticed and the cylinder head warps or the head gasket fails, costs escalate to €400-700. Many owners replace the water pump preventively during timing belt service, which is the most cost-effective approach.
Ignition coil pack failure
€80 - 2003 of 6
Coil pack degrades with age, causing misfires and rough running · more· less
The ignition coil pack on the Atos 1.1 is a common failure item. Symptoms include engine misfiring, rough idle, loss of power, and the check engine light illuminating. The part itself costs €40-80 for an aftermarket unit and is straightforward to replace (accessible on top of the engine). Total repair cost at an independent shop is typically €80-150. On cars over 15 years old, replacing the coil pack along with fresh spark plugs is a sensible preventive measure.
Clutch cable and firewall mounting fatigue
€100 - 3504 of 6
Firewall mounting point for the clutch cable is weakly designed and deforms over time · more· less
A well-documented weakness on the Atos is the firewall mounting point where the clutch cable passes through. The sheet metal deforms under repeated pedal pressure, causing the clutch pedal to become progressively stiffer and eventually difficult to operate. The cable itself may also stretch or fray. Replacing the cable alone costs around €100-150. If the firewall mounting has deformed, a reinforcement plate needs welding in, adding another €100-200. This issue is most common on post-2006 models and cars used in stop-and-go urban traffic.
Front suspension component wear
€150 - 4005 of 6
Ball joints and control arm bushings wear, causing clunking and imprecise steering · more· less
The front suspension on the Atos uses conventional lower control arms with ball joints and bushings that wear with age and mileage. Symptoms include clunking over bumps, play in the steering, and uneven tire wear. Parts are very cheap: a complete lower control arm with ball joint costs €25-50 per side. Total repair for both sides including alignment is typically €150-300 at an independent shop. On any Atos over 100,000 km, checking for play in the ball joints during a pre-purchase inspection is essential.
Valve stem seal oil consumption
€250 - 6006 of 6
Hardened valve stem seals allow oil into the combustion chamber, causing blue smoke on startup · more· less
On high-mileage G4HD and G4HG engines, the rubber valve stem seals can harden and lose their sealing ability. This allows small amounts of oil to seep past the valve guides into the combustion chamber, visible as a puff of blue smoke on cold startup. The oil consumption itself is usually modest (0.5-1 litre per 5,000 km) and many owners simply top up the oil between services. If a full seal replacement is needed, expect €250-600 depending on whether the cylinder head needs to come off. This is primarily an issue on engines above 150,000 km.
Simple and cheap to repair, with few surprises
The 1.1 G4HD and G4HG engines are proven units used across several Hyundai and Kia models. Neither has complex technology to fail: no turbo, no variable valve timing, no direct injection, and no electronics beyond basic engine management. The main ownership concerns are age-related wear on the crankshaft sprocket, water pump, and clutch cable mounting. Individual parts rarely exceed €100, keeping repair bills manageable even when multiple items need attention.
Service history
Complete records from any garage are valuable. Verify oil change frequency, as both 1.1 versions are sensitive to neglected oil.
Tires
Check tread depth and age (date codes on sidewall). Small tires are cheap but old rubber hardens and loses grip.
Cold start
Start the engine completely cold. Listen for any rattle, knocking, or hesitation in the first 30 seconds.
Test drive
Drive for at least 20 minutes. Include speed bumps and varied speeds to check suspension and engine behavior under load.
Specific for this vehicle
Check for stalling or crank sensor codes
Ask whether the car has ever stalled unexpectedly or failed to start. A diagnostic scan for P0335 (crankshaft position sensor) is recommended.
Inspect coolant level and water pump area
Check the coolant reservoir level and look for dried coolant residue around the water pump housing. Low coolant or visible leaks indicate pump failure.
Test clutch pedal feel
Press the clutch repeatedly. It should be smooth and consistent. A stiff, spongy, or progressively harder pedal points to cable or firewall mounting issues.
+ 2 more checksShow less
Check front suspension for play
Rock each front wheel by hand at 12 and 6 o'clock. Any clicking or visible play in the ball joints means replacement is needed.
Watch for blue exhaust smoke on startup
After the engine has sat cold for several hours, watch the exhaust on first start. A puff of blue smoke suggests worn valve stem seals.
Recalls and Technical Service Bulletins
No specific European safety recalls have been documented for the Hyundai Atos 1.1 in available databases. Contact a Hyundai dealer with the VIN to verify whether any service campaign applies to the specific vehicle.
Warranty Status
Factory warranty (3 to 5 years, depending on the market)Expired on all Atos models
The original factory term depended on the country of sale. The 5 year, unlimited mileage cover often quoted for this car was a UK term introduced in September 2002 for the equivalent Hyundai Amica, while the Dutch-market Atos was delivered with 3 years and unlimited mileage; Hyundai Netherlands applies its five-year warranty only to cars sold from 2011. Whichever term applied, all Hyundai Atos 1.1 models are now well outside their original factory warranty. No extended warranty programmes are available for vehicles of this age. Focus on a thorough pre-purchase inspection instead.
Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.
This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
