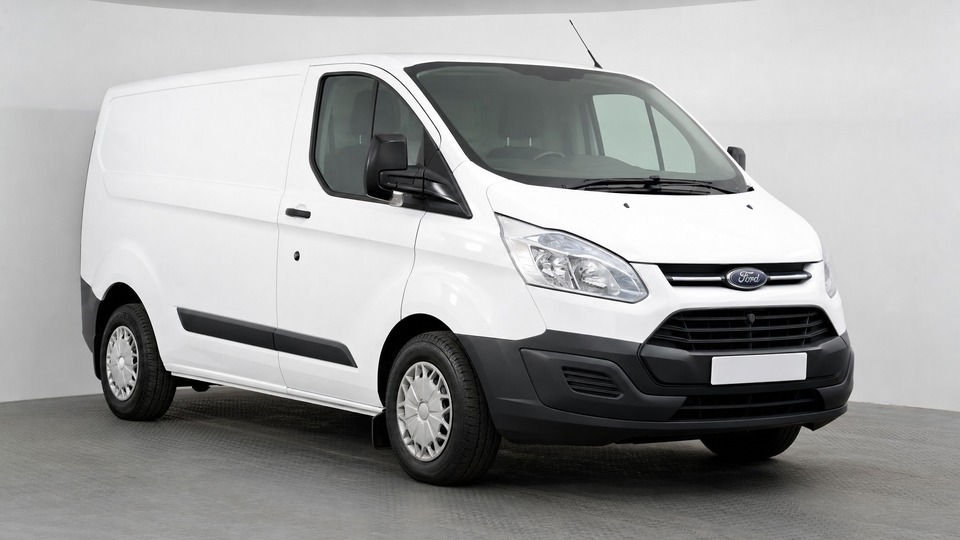

Ford's mid-size panel van was Europe's best-selling commercial vehicle for most of its production run. Available in L1 (short) and L2 (long) body lengths with gross vehicle weights from 2,600 to 3,400 kg, it suits everything from courier work to tradesman use. The 2.2 TDCi Duratorq diesel was offered from 2012 to 2016 in 100, 125, and 155 PS outputs before the 2.0 EcoBlue took over.· more· less
Huge parts supply, proven engineRegularly exceeds 300,000 km
Turbo actuator is a known weak pointDPF needs regular highway driving
Buy if: You need a reliable workhorse for mixed or long-distance use and can verify the turbo actuator, injectors, and service history.
Avoid if: Your routes are predominantly short urban trips, which accelerate DPF clogging and EGR carbon buildup on this engine.
Price & maintenance
Used price
€9,300
median asking price, typically 185,000 km
Typical range€6,900 – €12,000
Kilometres drivenAll
Maintenance cost
€800 – €1,550/year
at 15,000 km/year
Fixed costsservice, tyres, brakes€500 – €850 /yr
Risk bufferunplanned repairs€300 – €700 /yr
Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Ownership costs
Maintenance assumes 15,000 km a year. Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Electronic actuator seizes from carbon buildup or electrical failure, causing limp mode · more· less
The Hella electronic turbo actuator, part number 6NW009550 and also listed as G59, is widely regarded as the most commonly failed component on the 2.2 TDCi Transit/Transit Custom range. Do not confuse it with the G41 unit, part number 6NW009206, which belongs to earlier Transit applications. It controls the variable-geometry turbo vanes and fails due to carbon buildup on the vanes or internal electrical faults. Symptoms include a flashing glow plug warning light, limp mode with severely reduced power, intermittent power loss that initially clears after a restart, and fault codes P132A/P132B. Ford does not sell the actuator separately, so a dealer will quote for a complete turbocharger replacement at €1,500-2,500. However, specialist remanufacturers can repair just the actuator unit for €150-250, often with a lifetime warranty. If the turbo internals are also damaged from prolonged running with a seized actuator, full turbo replacement becomes necessary. Most affected between 80,000 and 150,000 km. Delivery vans driven hard under load are more susceptible because the turbo operates at higher duty cycles.
DPF clogging and fuel vaporizer failure
€300 - 1,5002 of 7
Short-trip driving prevents regeneration, and the DPF fuel vaporizer often fails first · more· less
The 2.2 TDCi's DPF relies on a fuel vaporizer (sometimes called the DPF burner) to inject diesel into the exhaust stream, raising temperatures to 600-650 degrees for soot burn-off. This vaporizer is a common failure point: when it fails, the DPF cannot regenerate and fills with soot. Symptoms include frequent DPF warning lights, aborted regeneration cycles, and eventually limp mode. The vaporizer itself costs €200-400 to replace. If the DPF is allowed to become completely blocked, the filter may need professional cleaning (€300-500) or replacement (€800-1,500). Vehicles used predominantly for short urban deliveries are most affected because the exhaust never reaches regeneration temperature. Transit Customs used as city couriers are particularly vulnerable. Regular motorway driving of 20+ minutes significantly reduces this risk.
Fuel injector failure
€400 - 1,5003 of 7
Injectors develop leaks, clog, or fail electronically, typically after 100,000 km · more· less
Injector failure is a well-documented issue on the 2.2 TDCi, particularly on higher-mileage examples. Both Continental/VDO and Delphi injectors were fitted across the production run. Symptoms include rough idling, knocking on cold start, excessive black or white smoke, poor fuel economy, and diesel smell in the cabin. A single injector costs €175-300 for the part, but labor is significant because each replacement injector must be coded to the ECU using Ford IDS/FDRS diagnostic software. When one injector fails, others often follow within 20,000-30,000 km, so some specialists recommend replacing all four at once (€1,000-1,500 including labor). In the worst cases, injectors can seize in the cylinder head, requiring specialist extraction tools and increasing the repair cost. Clean fuel and regular fuel filter changes help extend injector life.
EGR valve carbon buildup
€200 - 5004 of 7
Exhaust gas recirculation valve clogs with carbon, causing rough running and hesitation · more· less
The EGR valve on the 2.2 TDCi accumulates carbon deposits over time, restricting gas flow and causing rough idling, hesitation under acceleration, and increased emissions. Short-trip urban driving accelerates buildup because the engine rarely reaches sustained high temperatures. Cleaning the EGR valve costs around €100-200 and provides temporary relief, but the problem typically recurs within 20,000-30,000 km. Replacement with a new valve costs €250-500 including labor. If carbon loading progresses to the turbo vanes or DPF, combined repair costs can be significantly higher. Regular extended highway driving and using quality diesel fuel help reduce carbon accumulation.
Gearbox synchromesh wear (1st/2nd gear)
€300 - 1,5005 of 7
Synchroniser wear causes the gearbox to pop out of 1st or 2nd gear under load · more· less
Every 2.2 TDCi Transit Custom left the factory with the 6-speed manual gearbox, so this affects the whole engine range. Ford's SelectShift automatic only arrived later, with the 130 and 170 PS 2.0 EcoBlue engines. The known fault is the transmission dropping out of first or second gear into neutral, particularly under load or when decelerating. The cause lies with the synchroniser rings on these gears. Ford supplies an output shaft synchroniser repair kit (part number 1852724) that allows the gearbox to be repaired rather than replaced. However, the gearbox still has to be removed and refitted, so the job costs around €300-500 for the synchroniser repair. If the damage is more extensive, a second-hand gearbox can be sourced for €200-400 plus €400-600 in fitting labor. Vehicles used heavily in stop-start traffic, especially loaded delivery vans in urban areas, are most susceptible.
Dual mass flywheel and clutch wear
€700 - 1,2006 of 7
Premature DMF and clutch wear from frequent stop-start driving with heavy loads · more· less
The dual mass flywheel and clutch assembly wears faster than average on Transit Customs used for urban delivery or courier work, where frequent stop-start driving under load puts heavy demand on the drivetrain. Symptoms include vibration at idle, clutch judder, rattling from the bellhousing area, and eventually clutch slippage. A complete DMF and clutch kit replacement typically costs €700-1,200 depending on whether OEM or aftermarket parts are used. Some owners opt for a solid flywheel conversion, which eliminates the DMF failure mode but may increase drivetrain vibration. Typically occurs between 120,000 and 200,000 km depending on driving pattern and how heavily the van was loaded.
Timing chain stretch
€800 - 1,5007 of 7
Chain stretches at very high mileage, causing rattle on cold start and rough running · more· less
The 2.2 TDCi Duratorq uses a timing chain rather than a belt, designed to last the engine's lifetime. However, chains can stretch over time, particularly if oil changes are neglected or low-quality oil is used. Symptoms include a metallic rattle on cold start that fades after a few seconds, rough idle, and in advanced cases, misfiring. If a chain jumps, the result is bent valves and major engine damage, so investigate any cold-start rattle rather than ignoring it. Chain, guides, tensioner, and sprocket replacement costs €800-1,500. This issue is uncommon before 200,000 km with proper oil maintenance and is primarily a concern for very high-mileage examples.
Durable commercial platform with known turbo and emissions weak points
The 2.2 TDCi Duratorq is fundamentally robust and many examples exceed 300,000 km in commercial service. The electronic turbo actuator is the most commonly reported weak point, and the DPF system needs regular highway driving to stay healthy. Injector and EGR issues are typical of any high-mileage diesel. The manual gearbox synchromesh on 1st and 2nd gear can wear on heavily used examples. Most issues are well-understood, parts are widely available, and specialist knowledge is plentiful. Avoid vans that have been used exclusively for short urban trips, and verify service history carefully.
Service history
Complete Ford dealer or specialist records are essential. Ford's Transit Custom 2.2 TDCi service interval varies by market (typically 2 years or 50,000 km, but shorter in some countries). Verify oil changes against the schedule for this vehicle's country of first registration.
Tires
Check tread depth, age (date codes), and ensure commercial C-rated tires are fitted. Uneven wear may indicate suspension problems or overloading history.
Cold start
Start the engine completely cold. Listen for timing chain rattle in the first 10-30 seconds and turbo whine.
Test drive
Drive for at least 30 minutes including highway speeds to allow full engine warm-up and potential DPF regeneration.
Specific for this vehicle
Watch for turbo actuator symptoms during test drive
Drive firmly and watch for flashing glow plug light, sudden power loss, or limp mode. Try several hard accelerations from low speed under load.
Check DPF warning light and regeneration behavior
Ask the owner about DPF warning light frequency. Vans that only do short urban trips are high risk. Check for the DPF light during the test drive.
Test 1st and 2nd gear engagement under load
Accelerate in 1st gear, then lift the throttle and check if the gear pops out to neutral. Repeat in 2nd gear, especially on inclines or with a loaded cargo area.
+ 7 more checksShow less
Listen for injector knock on cold start
On first cold start, listen for uneven knocking or rattling that persists beyond 30 seconds. Rough cold idle suggests injector problems.
Inspect load area floor, ply lining, and bulkhead
Check the cargo floor for holes, dents, and rust-through. Inspect ply lining for damage. Verify the bulkhead is intact and securely mounted, with no signs of impact from shifting loads.
Check sliding door operation and track condition
Open and close the sliding door several times. Listen for grinding, check the roller mechanism and track for wear. A stiff or misaligned door often indicates heavy commercial use.
Ask about fleet or courier history
Ex-fleet and ex-courier vans may have been driven hard with minimal maintenance. Multiple drivers, frequent idling, and constant stop-start accelerate wear on the clutch, gearbox, and DPF.
Inspect underbody and sills for corrosion
Check floor panels, sills, and rear wheel arches. Commercial vehicles accumulate road salt damage faster, especially those used in northern Europe during winter.
Verify brake pedal clip recall if early build
Campaign R/2013/028 covers Kocaeli-built Transit Customs produced between 8 October 2012 and 6 February 2013. Contact Ford with the VIN to confirm whether this vehicle is affected and whether the work was done.
Verify the injector recall on 2014-2015 builds
Campaign A12/0277/15, listed in the UK as R/2015/025, covers Kocaeli-built 2.2 TDCi Transit Customs produced between 13 September 2014 and 23 January 2015, where an incorrectly assembled injector could reduce fuel pressure and stop the engine. Ask Ford with the VIN whether the work was carried out.
Recalls and Technical Service Bulletins
Brake pedal retaining clip failure (R/2013/028, Kocaeli-built vehicles produced 8 October 2012 to 6 February 2013, VIN-specific)Critical - verify completed
Incorrectly assembled fuel injector can reduce fuel pressure and stop the engine (A12/0277/15, listed in the UK as R/2015/025, Kocaeli-built 2.2 TDCi vehicles produced 13 September 2014 to 23 January 2015)Critical - verify completed
Two confirmed recalls apply to European Transit Custom 2.2 TDCi models. Campaign R/2013/028 covers the brake pedal retaining clip on Kocaeli-built vehicles produced between 8 October 2012 and 6 February 2013; the clip securing the brake pedal to its pivot pin could fail, causing the pedal to separate. The 28 September 2012 start date seen in some recall listings belongs to Southampton-built full-size Transits, which are a different vehicle. Campaign A12/0277/15, listed in the UK as R/2015/025, covers Kocaeli-built 2.2 TDCi Transit Customs produced between 13 September 2014 and 23 January 2015: an incorrectly assembled injector could reduce fuel pressure and stop the engine. Additionally, Ford issued a service campaign for 2.2 TDCi engines assembled at Kocaeli between October 2011 and October 2013, covering oil pump replacement on vehicles with high-mileage or specific drive-cycle conditions. Contact a Ford dealer with the VIN to verify whether any of these actions applies to a specific vehicle.
Warranty Status
Factory warranty (2 years in most European markets, 3 years/100,000 miles in the UK)Expired on all 2.2 TDCi models
Extended warrantyAvailable through Ford and third-party providers
All Transit Custom 2.2 TDCi models (2012-2016) are well outside their original factory warranty, which ran for two years in most European markets and for three years or 100,000 miles on UK-market vans. Extended warranties from third-party providers may still be available for lower-mileage examples but are uncommon for vehicles of this age and commercial use profile.
