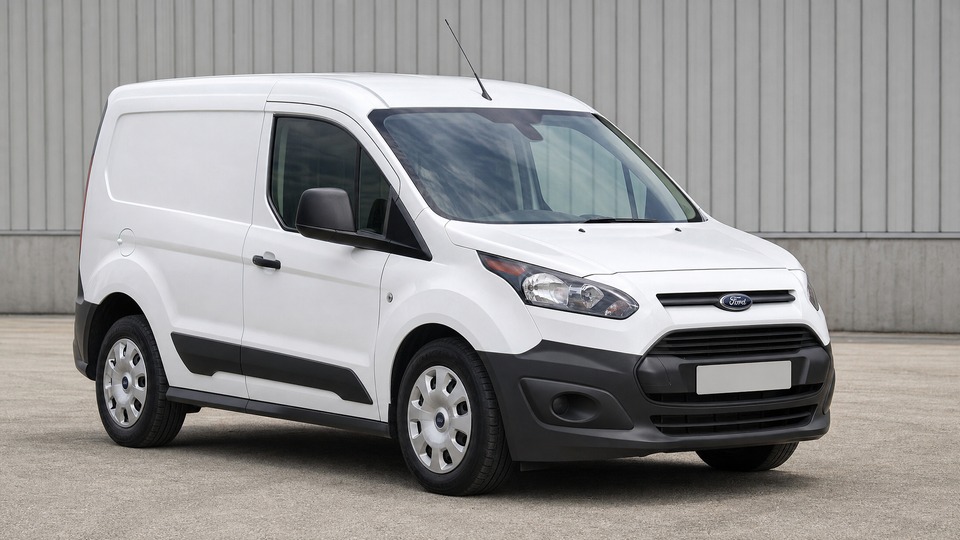

Ford's compact panel van, built on Ford's Global C platform and widely used across Europe by couriers, tradespeople, and fleet operators. Available in short-wheelbase L1 and long-wheelbase L2 configurations, it combines car-like handling with genuine commercial capability. The 1.5 TDCi Duratorq DLD-415 replaced the earlier 1.6 TDCi from mid-2015 and ran until the mid-2018 facelift, which replaced it with the all-new 1.5 EcoBlue; those facelift vans have a different engine and fall outside this report. In-scope vans carry engine codes XUGA (75 PS), XVGA/XVGB/XVGC (100 PS), and XWGA/XWGB (120 PS). The 75 and 100 PS versions use a five-speed manual gearbox. The passenger-carrying Tourneo Connect is a separate model family.· more· less
Car-like driving and handlingWidely available parts and service
DPF struggles with urban duty cyclesHead gasket is a known weak point
Buy if: You need a compact diesel van for mixed driving that includes regular highway runs, and can verify full service history and DPF health.
Avoid if: The van will serve exclusively short urban deliveries without regular motorway runs, or shows any sign of coolant loss or head gasket distress.
Maintenance costs
€850 – €1,500/year
at 15,000 km/year
Fixed costsservice, tyres, brakes€550 – €850 /yr
Risk bufferunplanned repairs€300 – €650 /yr
Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Maintenance costs
Maintenance assumes 15,000 km a year. Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Diesel particulate filter blocks when regeneration cycles cannot complete during short delivery runs · more· less
This is the single most common issue on commercial Transit Connects. The DPF requires sustained driving at motorway speeds for 15-20 minutes to reach the temperatures needed for passive regeneration. Vans used exclusively for urban deliveries and short stop-start runs rarely achieve this, causing soot to accumulate until the filter blocks. Each incomplete active regeneration attempt dumps unburned diesel into the engine oil, raising the oil level and diluting lubrication. Symptoms include the DPF warning light, loss of power, and limp mode. A forced regeneration at a garage costs €100-200. Professional DPF cleaning costs €300-500. A new aftermarket DPF costs €800-1,500 fitted. Check the oil level before purchase: if it sits significantly above the maximum mark, it indicates diesel contamination from failed regeneration cycles. Vans with documented regular motorway use are substantially lower risk.
EGR valve carbon buildup
€250 - 7002 of 7
Carbon deposits clog the EGR valve, causing rough running and engine management light · more· less
The electronically controlled EGR valve accumulates carbon deposits from recirculated exhaust gases. Urban driving and short trips accelerate the problem, making this a common complaint on delivery vans. Symptoms include rough idle, hesitation on acceleration, increased smoke, and fault codes related to EGR position or intake airflow. Cleaning the EGR valve costs €150-250 at a garage. A new valve with programming costs €400-700 at an independent specialist. On the 1.5 TDCi, the EGR valve and its cooler are supplied as separate service parts, so the valve can be replaced on its own without renewing the whole intake assembly. Regular motorway driving at higher RPM helps keep the valve cleaner. Ford released a software update that periodically cycles the valve to reduce buildup, so verify whether this update has been applied.
Head gasket failure
€1,200 - 2,5003 of 7
Aluminium cylinder head warps from heat, allowing coolant to mix with oil or enter combustion chambers · more· less
Head gasket failure is a documented weak point of the 1.5 TDCi engine. The aluminium cylinder head is sensitive to overheating, and even brief temperature spikes from a stuck thermostat, low coolant, or a failed water pump can cause warping. Symptoms include unexplained coolant loss without visible external leaks, creamy sludge under the oil filler cap, small bubbles entering the coolant expansion tank when the engine is running, and white smoke from the exhaust. Repair involves skimming the head and replacing the gasket, costing €1,200-1,800 at an independent garage and up to €2,500 at a Ford dealer. Vans with a complete coolant maintenance history and no overheating events are lower risk. Always check for these symptoms during a cold-engine inspection.
Turbocharger actuator sticking
€500 - 2,0004 of 7
Variable-geometry vane actuator sticks from carbon deposits, causing boost faults and limp mode · more· less
The 1.5 TDCi uses a Honeywell variable-geometry turbocharger. The vane actuator can stick from carbon deposits, particularly on gently driven vans that rarely reach higher RPM, causing boost pressure faults and limp mode. Small cracks can also develop in the vacuum tubing, preventing proper actuator operation. Always check vacuum lines before condemning the turbo. If only the actuator is faulty, repair at a specialist costs €500-600. Full turbo bearing failure is less common and usually caused by oil starvation from neglected service intervals. A replacement turbo fitted at an independent specialist costs €1,200-1,800, rising to €2,000 at a Ford dealer.
Dual mass flywheel premature wear (manual)
€800 - 1,6005 of 7
Commercial stop-start use accelerates DMF fatigue, causing vibration and rattling at idle · more· less
The dual mass flywheel absorbs torsional vibration from the diesel engine. In passenger cars the DMF typically lasts 150,000-200,000 km, but Transit Connects used for frequent stop-start delivery work can see failure as early as 80,000-120,000 km. Symptoms include a metallic rattling at idle, vibration through the pedals, and difficulty engaging gears smoothly. When replacing the DMF, the clutch disc, pressure plate, and concentric slave cylinder should be replaced simultaneously since the gearbox must be removed anyway. Parts (DMF + clutch kit + CSC) cost €350-600. Labour adds €400-700. Total at an independent garage is €800-1,200, at a Ford dealer €1,400-1,600. Vans with frequent urban stop-start use are significantly higher risk.
Thermostat housing coolant leak
€300 - 6006 of 7
Plastic thermostat housing deforms from heat cycling, causing coolant seepage and eventual overheating risk · more· less
The thermostat housing is made of plastic and can deform over time from heat cycling, developing coolant leaks at the gasket surface. If the leak goes unnoticed, coolant loss can lead to overheating, which is particularly dangerous on the 1.5 TDCi because the aluminium head is sensitive to temperature spikes. The thermostat housing and seal replacement costs €300-600, depending on whether the water pump is also replaced at the same time, which is recommended if the van has more than 100,000 km. This issue typically appears between 80,000-150,000 km. Regular coolant level checks between services are essential on this engine.
Sliding door mechanism wear
€200 - 5007 of 7
Constant daily use wears door rollers, catches, and latch mechanisms on the cargo sliding door · more· less
This is a van-specific issue: Transit Connects used commercially have their sliding door opened and closed dozens of times per day, far exceeding what the mechanism is designed for. The upper and lower roller guides, the door catch, and the latch assembly all wear with use. Symptoms include the door becoming difficult to open or close, not latching securely, or making grinding noises when sliding. Individual roller or catch replacement costs €100-200 for parts plus an hour of labour. A full mechanism overhaul (rollers, catch, latch, and cable adjustment) costs €300-500. Inspect the sliding door action carefully during any pre-purchase check: it should glide smoothly on its tracks without catching, excessive play, or requiring force.
Reliable workhorse, but urban-only use accelerates the main failure modes
The Ford 1.5 TDCi Duratorq DLD-415 is a fundamentally sound diesel engine that can exceed 200,000 km with proper maintenance. The main ownership risks are all amplified by urban-only commercial use: DPF clogging from short trips, EGR fouling from low RPM running, and accelerated DMF wear from constant stop-start driving. Vans with mixed or predominantly highway use are significantly more reliable. Head gasket failure is the most expensive potential issue and is often preceded by thermostat or cooling system neglect. Verify the DPF recall status and full service history before purchase.
Service history
Complete Ford dealer or specialist records essential. Commercial vans often have incomplete records, so verify oil change intervals (every 12 months or 20,000 km) and timing belt status.
Tires
Check tread depth, age (date codes on sidewall), and uneven wear indicating alignment or suspension issues. Commercial vans often run on budget tires that wear unevenly.
Cold start
Start the engine completely cold. Listen for unusual rattling (DMF), knocking, or excessive turbo whine in the first 30 seconds.
Test drive
Minimum 20 minutes including varied speeds. Check for hesitation, limp mode activation, turbo boost response, and gearbox behaviour under load.
Specific for this vehicle
Check oil level for DPF diesel dilution
Oil significantly above the max mark indicates failed DPF regeneration cycles. This causes oil dilution and accelerated engine wear. Refuse the van if the oil level is well over the max mark.
Inspect coolant for head gasket symptoms
Check under the oil filler cap for creamy sludge. Look for small bubbles in the coolant expansion tank with the engine idling. Low coolant without visible leaks is a warning sign.
Test sliding door mechanism thoroughly
Open and close the sliding door several times. It should glide smoothly without catching, grinding, or requiring force. Check the latch engages securely.
+ 4 more checksShow less
Verify DPF recall status with Ford using VIN
The 2024 DPF cracking recall covers many 1.5 TDCi models. That is campaign coverage within the campaign's own scope, not a fresh separate warranty on the replacement filter.
Check for EGR and boost-related fault codes
Connect a diagnostic scanner and check for stored or pending EGR position faults and turbo boost pressure codes. These indicate carbon buildup or actuator problems.
Inspect thermostat housing for coolant seepage
Look for dried coolant residue or wet spots around the plastic thermostat housing. A failing housing leads to coolant loss and potential overheating.
Verify the 1.5 TDCi engine, not the later EcoBlue
Vans covered by this report (2015 to the mid-2018 facelift) carry engine code XUGA, XVGA/XVGB/XVGC, or XWGA/XWGB on the build plate. Facelift vans have the all-new 1.5 EcoBlue, a different engine that is outside this report's scope.
Camshaft sprocket failure (Ford campaign 16B42, early 2015 production)Verify if applicable
Contact a Ford dealer with the VIN to verify all applicable campaigns have been completed. The 2024 DPF recall is the most important for this engine and applies across the 1.5 TDCi production run. The 16B42 camshaft sprocket campaign affects only early 2015 production engines. Ford's recall database covers both the Transit Connect panel van and the Tourneo Connect passenger variant.
Warranty Status
Factory warranty (2 years, EU; 3 years / 100,000 miles, UK)Expired on all used Transit Connect Mk2 models
Rust perforation warranty (12 years)May still apply to 2015+ vans until 2027-2030
2024 DPF recallApplies to vans with completed DPF recall
Ford's standard EU factory warranty is 2 years; in the United Kingdom, commercial vehicles received 3 years / 100,000 miles. Either way, all Transit Connect Mk2 1.5 TDCi vans are now outside their original factory warranty. The 2024 DPF recall covers affected vehicles within the campaign's own scope; this is campaign coverage, not a fresh separate warranty on the replacement filter. The 12-year rust perforation warranty may still apply to later production vans. Commercial-use extended warranties are available from Ford and third-party providers but typically exclude wear items and DPF issues.
