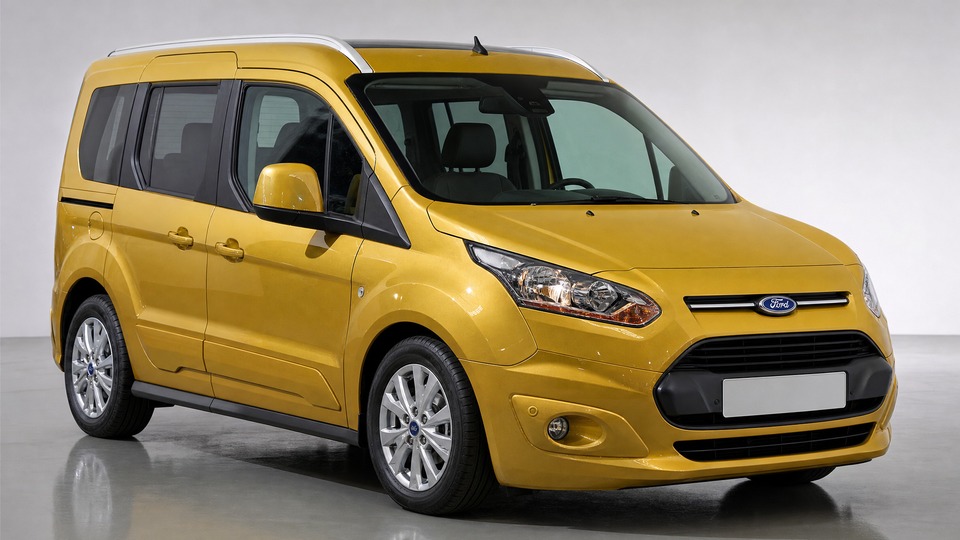

The passenger version of Ford's compact van, based on the Global C platform shared with the Focus Mk3 and C-MAX. The Tourneo Connect Mk2 launched in late 2013 with the 1.6 TDCi Duratorq diesel in three power outputs, offering a practical high-roof body with sliding rear doors. Popular as an affordable family MPV and wheelchair-accessible vehicle across Europe.· more· less

Versatile interior with sliding doors Cheap parts, wide dealer network

Turbo sensitive to oil maintenance DPF clogs with short-trip use

Buy if: You want a practical, spacious MPV for mixed driving and can verify regular oil changes and a complete service history.

Avoid if: You mostly make short urban trips, the oil change history is unclear, or the car has been used hard commercially without documentation.

Maintenance costs

€800 – €1,500/year

at 15,000 km/year

Fixed costsservice, tyres, brakes €500 – €850 /yr

Risk bufferunplanned repairs €300 – €650 /yr

Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.

Maintenance costs

€800 – €1,500 per year

€500 – €850

service, tyres, brakes

€300 – €650

repair buffer

Buying a used Ford Tourneo Connect? Check its history.

carVertical scans 1,000+ databases for damage, mileage rollbacks, theft records and ownership changes. Save 20% with code CARCHECKER.

Affiliate link. Discount code CARCHECKER applied automatically.

Buying a used Ford Tourneo Connect? Check its history.

carVertical scans 1,000+ databases for damage, mileage rollbacks, theft records and ownership changes. Save 20% with code CARCHECKER.

Affiliate link. Discount code CARCHECKER applied automatically.

Common Problems

Turbocharger failure from oil feed pipe sludging

€800 - 2,2001 of 7

Oil sludge blocks the feed pipe to the turbo, starving it of lubrication and causing bearing failure · more· less

The most significant engine-specific concern on the 1.6 TDCi DLD-416. The narrow oil feed pipe to the Garrett variable-geometry turbocharger gradually accumulates sludge, particularly when oil change intervals are stretched or lower-grade oil is used. Once oil flow is restricted, the turbo bearings overheat and fail. Symptoms include increasing turbo whine, blue-grey exhaust smoke, loss of power, and eventually the check engine light. If caught early, cleaning or replacing the oil feed and return pipes (€200-400 parts and labour) can save the turbo. If the turbo has already failed, a remanufactured unit fitted at an independent specialist costs €800-1,200, rising to €1,800-2,200 at a Ford dealer with a new OEM unit. Prevention is straightforward: use 5W-30 full synthetic oil, change it every 15,000 km or annually (whichever is sooner), and replace the oil feed pipe proactively at 100,000-120,000 km. Many owners who follow this schedule reach 200,000+ km on the original turbo.

DPF clogging from short-trip driving

€100 - 1,5002 of 7

Diesel particulate filter blocks when regeneration cycles cannot complete on short journeys · more· less

The Tourneo Connect is widely used as a family school-run vehicle and for short urban errands, exactly the driving pattern that prevents the DPF from reaching the temperatures needed for passive regeneration. Each incomplete active regeneration attempt dumps unburned diesel into the engine oil, raising the oil level and diluting lubrication. Symptoms include the DPF warning light, loss of power, and limp mode. Problems typically first appear between 40,000-80,000 km on predominantly urban cars. A forced regeneration at a garage costs €100-150. Professional DPF cleaning costs €300-500. A new aftermarket DPF fitted costs €800-1,500. Check the oil level before purchase: if it is significantly above the maximum mark, this indicates diesel contamination from repeated failed regeneration cycles. Regular motorway driving of at least 20 minutes once or twice a week largely prevents this problem.

EGR valve carbon buildup

€200 - 7003 of 7

Carbon deposits clog the EGR valve, causing rough running and engine management light · more· less

The electronically controlled EGR valve accumulates carbon deposits from recirculated exhaust gases. Urban driving and short trips accelerate the problem. Symptoms include rough idle, hesitation on acceleration, increased smoke, and fault codes related to EGR position or intake airflow. Cleaning the EGR valve costs €150-250 at a garage. A new valve with programming costs €400-700 at an independent specialist. Some owners find cleaning is needed every 40,000-60,000 km in urban-heavy use. The DLD-416 engine shares its EGR design with the PSA 1.6 HDi, so parts are widely available and relatively affordable.

Dual mass flywheel and clutch wear

€900 - 1,8004 of 7

DMF fatigues from diesel torque pulses, causing vibration and rattling at idle · more· less

The dual mass flywheel absorbs torsional vibration from the diesel engine. Typical failure occurs between 130,000-180,000 km depending on driving style. Symptoms include metallic rattling at idle that disappears when the clutch is depressed, vibration through the pedals, and difficulty engaging gears smoothly. When replacing the DMF, the clutch disc, pressure plate, and release bearing should be replaced simultaneously since the gearbox must be removed. Parts (DMF + clutch kit) cost €400-700. Labour adds €500-800. Total at an independent garage is €900-1,400, at a Ford dealer €1,500-1,800. Urban stop-start driving and frequent towing accelerate DMF wear. Some owners convert to a solid flywheel (€200-300 less) to reduce future costs, though this increases drivetrain vibration.

Fuel injector seal leaks

€150 - 6005 of 7

Copper injector washers and rubber leak-off seals degrade, causing diesel smell and rough running · more· less

The common-rail injectors are sealed by copper crush washers and the leak-off pipes use small rubber seals that harden over time. A failed seal produces a characteristic chuffing sound from the injector area and sometimes a diesel smell in the cabin. If left unrepaired, leaked fuel can wash carbon from the cylinder head and overheat the catalytic converter. Replacing all four copper washers and leak-off seals is a routine job costing €150-250. If an injector itself has failed or is worn, a single replacement injector costs €200-400, though Ford does not sell the leak-off assembly separately from the pipe, requiring the complete pipe to be replaced. The repair is straightforward and most independent diesel specialists handle it regularly.

Sliding door mechanism wear

€150 - 5006 of 7

Rollers, latches, and micro-switches in the sliding doors wear with regular use · more· less

The sliding rear doors are a key feature of the Tourneo Connect but their mechanisms wear over time. Common symptoms include the door sticking or catching during opening, failing to latch fully closed (requiring multiple attempts), or the child-safety lock engaging unexpectedly. The roller track can accumulate debris, and the latch mechanism contains plastic linkage tabs that can break. A micro-switch in the door latch is reportedly quite sensitive and can cause intermittent locking failures. Lubrication and adjustment of the track and rollers is a simple maintenance item. Replacing the latch mechanism costs €150-300 including labour. A complete door roller assembly replacement runs €300-500. Check both sliding doors during a test drive, paying attention to smooth operation in both directions.

Coolant expansion tank cracking

€150 - 4007 of 7

Plastic expansion tank develops hairline cracks from thermal cycling, causing slow coolant loss · more· less

The plastic coolant expansion tank can develop hairline cracks from repeated heating and cooling cycles. The leak is often slow enough that the coolant level drops gradually without triggering an immediate warning. If coolant loss goes unnoticed, the 1.6 TDCi aluminium cylinder head can warp from overheating. Check the tank visually for whitish residue or damp patches, and verify the coolant level is between the min and max marks. A replacement tank costs €50-80, and the job takes under an hour. Total repair including fresh coolant is €150-250 at an independent garage, up to €400 at a dealer. This is a straightforward preventive check that can avoid much more expensive head gasket damage.

Reliable diesel if oil changes are maintained, but turbo needs watching

The 1.6 TDCi DLD-416 is a well-proven diesel co-developed by Ford and PSA, used across millions of vehicles including the Focus, C-MAX, Fiesta, and various Peugeot and Citroën models. The main engine-specific concern is turbo failure from oil feed pipe sludging, which is directly linked to oil quality and change frequency. With correct oil (5W-30 full synthetic), timely changes, and regular longer journeys for DPF health, many examples exceed 200,000 km without major engine problems. The 1.6 was replaced in the Tourneo Connect by the 1.5 TDCi DLD-415 from mid-2015, which is generally considered a more refined unit.

Pre-Purchase Inspection Checklist

Viewing checklist for the Ford Tourneo Connect 1.6 TDCi Mk2

A printable one-page A4 checklist for this model.

General checks

Service history
Complete Ford dealer or specialist records essential. The 1.6 TDCi is sensitive to oil quality, so verify oil changes have been performed with 5W-30 full synthetic at regular intervals.
Tires
Check tread depth, age (date codes on sidewall), and uneven wear indicating alignment or suspension issues.
Cold start
Start engine completely cold. Listen for turbo whine, unusual rattling (DMF), or excessive diesel clatter in the first 30 seconds.
Test drive
Minimum 20 minutes including varied speeds. Check for hesitation, loss of power, warning lights, and smooth gearbox operation.

Specific for this vehicle

Listen for turbo whine or whistling
A high-pitched whine that increases with engine speed indicates turbo bearing wear from oil starvation. This is the most important check for the 1.6 TDCi.
Check oil level for DPF diesel dilution
Oil significantly above the max mark indicates failed DPF regeneration cycles. This dilutes lubrication and accelerates turbo and engine wear.
Inspect for exhaust smoke under load
Blue-grey smoke under acceleration suggests turbo oil seal failure. Black smoke indicates DPF or injector issues. Ask a helper to watch while you accelerate.

+ 3 more checksShow less

Test both sliding doors for smooth operation
Open and close both sliding rear doors. They should move smoothly without resistance, catching, or unusual noise from the roller mechanism.
Check coolant level and expansion tank
Verify coolant is between min and max marks. Inspect the plastic expansion tank for cracks, whitish residue, or damp patches indicating a slow leak.
Listen for injector chuffing at idle
A rhythmic chuffing or ticking sound from the injector area with a faint diesel smell indicates leaking injector seals. Straightforward repair but should be addressed promptly.

Recalls and Technical Service Bulletins

Panoramic roof glass adhesion (Oct 2013 - Jul 2014 production, Tourneo Connect / Transit Connect) Verify completed

Rear camera malfunction (Jun 2014+ production, multi-model campaign) Verify if applicable

DPF regeneration recalibration, plus inspection and replacement if damaged (Ford 24E06 / KBA 14555R, Tourneo Connect model years 2014-2023) Verify if applicable

Contact a Ford dealer with the VIN to verify all applicable recalls have been completed. The panoramic roof recall is critical for early-build models with the glass roof option. Not all Tourneo Connects have a rear camera, so the camera recall applies only to equipped vehicles. The KBA-supervised DPF campaign lists Tourneo Connect model years 2014-2023 with no stated variant restriction, but eligibility remains VIN-dependent.

Warranty Status

Factory warranty (2-3 years by market) Expired on all used models

Rust perforation warranty (12 years from first registration) May still apply to 2014-2015 builds

Extended warranty Available through Ford dealers and third parties

Ford's new-vehicle warranty terms were country-specific: Ford Germany covers 2 years with no km limit, while the 2014 UK brochure specified 3 years or 100,000 miles. All 2013-2015 Tourneo Connect 1.6 TDCi models are outside their original warranty. The 12-year rust perforation warranty runs from first registration and may still be active on the last cars built until 2027. Third-party extended warranties are available but check exclusions carefully, particularly for turbocharger and DPF coverage.

↔ Also consider

Ford Tourneo Connect 1.5 TDCi Mk2 2015-2018

Direct successor engine in the same body. The 1.5 TDCi DLD-415 is generally more refined with less turbo oil feed concern, but adds optional PowerShift automatic risk. Ford's DPF campaign lists Tourneo Connect model years 2014-2023, so DPF campaign exposure is not specific to the 1.5.

Volkswagen Caddy 1.6 TDI 2K 2010-2015

Main competitor in the compact van-MPV segment. Known for piezo injector failures and turbo actuator issues. Broadly similar overall reliability.

Citroën Berlingo 1.5 BlueHDi Mk3 2018-present

Newer generation competitor. Its DV5 engine has a documented camshaft chain weakness covered by Stellantis extended warranty. Different engine family from the Tourneo's DLD-416.

Ford C-MAX 1.6 TDCi Mk1 2003-2010

Same 1.6 TDCi engine in Ford's earlier compact MPV. Similar turbo and DPF issues on an older platform. DMF failures are more frequent on the C-MAX due to age.

Renault Kangoo 1.5 dCi Mk2 2008-2021

Budget alternative with the proven Renault K9K diesel. Generally robust, though injector and turbo issues appear at higher mileages. Longer production run means wider parts availability.
