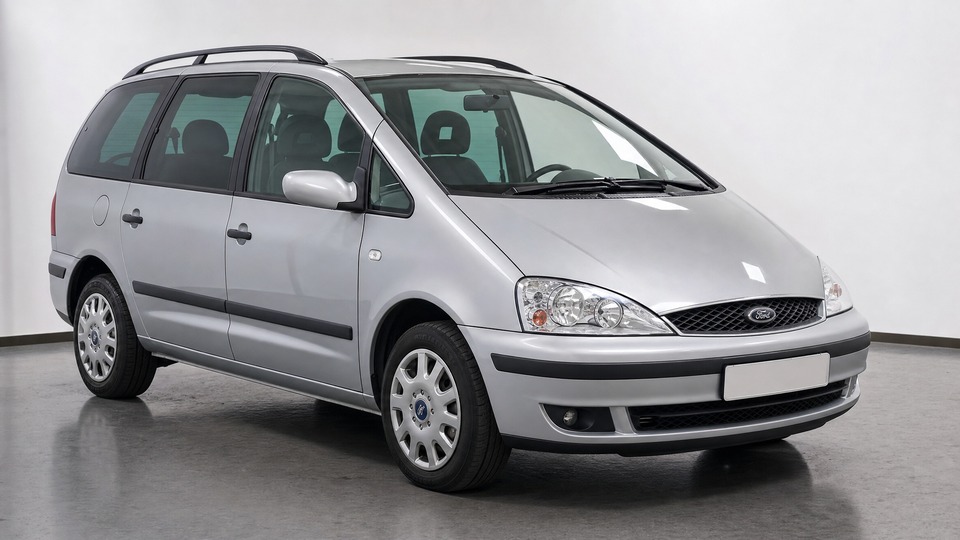

The first-generation Galaxy was Ford's entry into the full-size MPV class, built at the AutoEuropa plant in Palmela, Portugal, alongside its near-identical twins, the Volkswagen Sharan and SEAT Alhambra. Almost everything under the skin is Volkswagen Group, including the 1.9 TDI, which ran from 90 hp to 150 hp and switched from a Bosch distributor injection pump to Pumpe-Duese unit injectors around the April 2000 facelift. That changeover was not a single clean date across Europe: Ford offered the 90 hp unit-injector version in certain European markets from September 1999, so the engine code, not the build date, tells you which version a car actually has. It remains one of the cheapest routes into a seven-seat diesel, and no version was ever fitted with a diesel particulate filter.· more· less
Proven VW 1.9 TDI, no DPF fittedCheap parts shared with VW and SEAT
Body and subframe corrode with ageAgeing wiring and ABS electronics
Buy if: You want a cheap seven-seat diesel with a manual gearbox and can find a documented example with a genuinely solid underbody.
Avoid if: You cannot get the car on a ramp to inspect the sills, subframe and brake pipes, or you need a car that will not ask for age-related repairs every year.
Maintenance costs
€800 – €1,550/year
at 15,000 km/year
Fixed costsservice, tyres, brakes€450 – €800 /yr
Risk bufferunplanned repairs€350 – €750 /yr
Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Maintenance costs
Maintenance assumes 15,000 km a year. Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Structural corrosion: sills, arches, subframe and brake pipes
€400 - 2,5001 of 13
Rot at the arch lips, sills, front subframe and under the brake pipe sheathing is the main reason these cars are scrapped · more· less
This platform is now 20 to 30 years old, and corrosion decides whether a Galaxy is worth keeping. The usual order is the rear wheel arch lips and the dog-leg behind the sliding door, then the sills, which rot from the inside outwards, then the front subframe around the wishbone mounting points, then the rear axle mounts. Repair panels for the arches and full sills are manufactured specifically for the Galaxy, Sharan and Alhambra, which tells you how routine this work has become. A single arch or sill section cut out, welded and painted at an independent bodyshop is typically 400 to 800 euros, and a car needing all four corners plus a subframe is 1,500 to 2,500. A refurbished, blasted and powder-coated exchange front subframe is around 240 euros in parts plus four to six hours to swap, and the wishbone bolts are stretch bolts that must be renewed. The item most buyers miss is the brake pipes: they corrode underneath their protective plastic sheathing, so they look sound until the covering is peeled back. A German workshop was quoted around 750 euros and two and a half days of shop time for a complete front-to-rear brake pipe renewal. Cars from Scandinavia, the Alps and salted northern German roads are the worst affected.
Front suspension and steering wear
€300 - 8002 of 13
A 1,700 kg to 1,850 kg MPV works through drop links, wishbone bushes and strut top mounts · more· less
Kerb weight is roughly 1,700 to 1,850 kg depending on trim and engine, and the front suspension carries most of it. Anti-roll bar drop links knock first and are cheap, about 20 to 40 euros each plus half an hour of labour. Lower wishbone bushes and ball joints follow, and the strut top mounts often seize because the mount cup collects water and rusts solid, which makes any later strut work harder and dearer. A complete front refresh with two wishbones, two drop links and two top mounts is typically 250 to 450 euros in parts plus three to five hours at an independent. Front wheel bearings usually want renewing somewhere past 150,000 km at 100 to 150 euros a corner fitted. A knock over expansion joints and uneven front tyre wear are the giveaways on a test drive. None of this is difficult individually, but on a neglected car it all arrives at once and it will fail a TUV or MOT inspection.
Tailgate and door wiring loom breakage, central locking faults
€150 - 5003 of 13
Copper conductors fracture inside the flexible gaiters at the tailgate and door hinges while the insulation still looks perfect · more· less
The wiring that crosses from the body into the tailgate and into each door flexes every time that door is opened. After roughly a decade the strands fracture inside the insulation, and because the outer sheath looks undamaged the fault is easy to misdiagnose. Typical symptoms are a rear wiper that stops, flickering instrument lighting, a spurious bulb or door-open warning, a heated rear screen that no longer works, a tailgate that will not release from the remote, or central locking that operates some doors and not others. Central locking on the Galaxy Mk1 is electric, with a lock motor and its own wiring inside each door, so a tired lock motor or a corroded connector at the door produces a very similar symptom of doors that lock slowly or only sometimes. Purpose-made silicone-insulated repair looms for the tailgate of the Galaxy, Sharan and Alhambra cost around 30 to 60 euros, and an auto electrician will normally splice one in for 150 to 300 euros. Finding which of several possible causes it is usually takes longer than the repair, so expect a diagnostic charge on top.
Dual-mass flywheel and clutch wear
€1,000 - 1,8004 of 13
Rattle at idle that disappears when the clutch is pressed, most often past 180,000 km · more· less
The manual cars use a dual-mass flywheel, and in this application it takes a lot of torque in a heavy vehicle that is regularly loaded with seven people or used for towing. The classic symptom is a metallic rattle from the bellhousing at idle that stops the moment you press the clutch, followed by judder on pull-away and vibration through the gear lever. A complete kit with flywheel, clutch plate, cover and release bearing is roughly 400 to 700 euros in parts from LuK or Sachs, and the gearbox has to come out, which is six to eight hours of labour. Bills of 1,000 to 1,800 euros at an independent are normal. Most cars need this somewhere between 180,000 and 250,000 km, and sooner on school-run or shuttle duty. A solid-mass conversion is cheaper and more durable but noticeably noisier and harsher at idle, which not every owner accepts in a family car.
Turbocharger variable-vane sticking and turbo failure
€400 - 1,5005 of 13
Soot jams the variable vanes and drops the car into limp mode above about 2,500 rpm on 110 hp and stronger versions · more· less
The 110 hp AFN and AVG and every PD version from 115 hp upward use a variable-geometry Garrett turbo. Soot and oil mist build up on the vane mechanism, particularly on cars used for short journeys and long idling, until the vanes stop moving freely. The result is overboost or underboost followed by limp mode, usually experienced as the car going flat above roughly 2,500 to 3,000 rpm, with codes in the P1555 or P0299 family. A specialist strip and clean of the vane mechanism is 250 to 500 euros. A remanufactured turbo is roughly 300 to 500 euros in parts plus four to six hours to fit, so 800 to 1,500 euros complete. German motoring press reporting on this generation notes that turbocharger defects were common on diesels built up to 2005, with the bearing specification improved late in the production run. A coked or restricted oil feed pipe is a frequent secondary cause, so the feed line should always be renewed with the turbo. The 90 hp 1Z and AHU use a simpler wastegate turbo and are far less affected.
ABS and ESP control module and brake pressure sensor failure
€250 - 8006 of 13
Permanent ABS and brake warning lights from solder fatigue inside the hydraulic control unit · more· less
Early cars use an ATE MK20 ABS unit and later cars a more capable ATE or Bosch unit with ESP. Both develop internal solder joint fatigue and pump motor faults with age, and the brake pressure sensor fails separately. The symptom is ABS, ESP and brake warning lights that stay lit after the ignition self-check, sometimes with loss of ABS assistance under hard braking. This is one of the most widely reported faults across all three badges on this platform. Specialist remanufacture of an MK20 unit is advertised at roughly 150 to 190 euros in the UK and 250 to 450 euros at German electronics specialists, plus removal, refitting and a brake bleed. A replacement pressure sensor is 100 to 200 euros fitted. A car with the ABS lamp lit will fail a periodic technical inspection anywhere in the EU, so this is not a fault a seller can talk you past, and it is worth watching the dashboard through the full self-check before the test drive.
Air conditioning and heater blower failure
€250 - 1,0007 of 13
Weak cooling from a tired compressor, corroded condenser or leaking drier, plus blower resistor failures · more· less
Poor air conditioning performance was a documented weakness on this car when it was new, and by now most systems want attention. The condenser sits low at the front where it corrodes and collects stone chips, the receiver-drier commonly leaks around the cap area, and compressors wear out. Cars specified with the rear climate pack have a second evaporator and a long run of extra pipework, which adds leak points and makes leak-tracing slower. A regas with a new drier is 150 to 300 euros, a condenser is 250 to 450 euros fitted, and a compressor with a system flush, new drier and refill is 600 to 1,000 euros. Separately, the heater blower motor and its resistor pack fail, which usually shows up as a fan that only works on the highest setting. A resistor is 30 to 80 euros and a blower motor 100 to 200 euros, with access behind the passenger side of the dashboard. Diagnose before replacing the compressor: a pressure switch or a flap actuator produces similar symptoms for a fraction of the cost.
EGR valve and inlet carbon build-up
€200 - 6008 of 13
Soot and oil mist clog the EGR valve and inlet tract, giving a lumpy idle, smoke and power loss · more· less
Every 1.9 TDI in this car recirculates exhaust gas into the inlet, and the mix of soot and crankcase oil mist progressively coats the EGR valve and the inlet manifold. Symptoms are a lumpy idle, hesitation, black smoke under load and an engine management light. On the distributor-pump cars the EGR valve is vacuum operated and often simply sticks, so a clean and a new vacuum hose can restore it. The Pumpe-Duese cars use a vacuum-operated valve as well, commanded by the engine ECU through an electro-pneumatic converter, so a fault can sit in the valve, in the vacuum lines or in that solenoid, and it is worth establishing which before anything is replaced. The valve is 100 to 300 euros depending on type, and access in this transverse installation is poor, so labour is most of the bill, giving a typical total of 200 to 600 euros. Regular longer runs at higher load keep deposits down. Removing or blanking the EGR is not legal for road use in Germany, Austria or the Netherlands and will fail an emissions inspection.
The loom under the rocker cover sits permanently in hot oil until the insulation breaks down and the engine misfires · more· less
This affects only the Pumpe-Duese cars, meaning the 90 hp ANU, 115 hp AUY, 130 hp ASZ and 150 hp BTB. Most of those arrived with the April 2000 facelift, but the 90 hp ANU was already sold in certain European markets from September 1999, so go by the engine code rather than the year. The wiring that feeds the unit injectors runs inside the cylinder head under the rocker cover, immersed in hot engine oil for its whole life. The insulation hardens and cracks and the connector pins corrode, producing a rough idle, misfires and injector fault codes that follow the loom rather than the injector when parts are swapped between cylinders. A replacement loom is roughly 80 to 150 euros in parts plus two to three hours, so 200 to 400 euros fitted, and it is sensible preventive work whenever the rocker cover is off for another job. If an injector itself has failed, budget 250 to 400 euros per unit fitted including the setting procedure, which pushes a multi-injector job toward 1,200 euros. On the distributor-pump cars, the 1Z, AHU, AFN and AVG, this loom does not exist.
Camshaft and cam follower wear (Pumpe-Duese engines)
€800 - 1,80010 of 13
PD camshafts drive the injectors as well as the valves and wear quickly on the wrong oil · more· less
On Pumpe-Duese engines the camshaft operates the unit injectors as well as the valves, and the contact pressures on the injector lobes are far higher than on a conventional diesel. VW 505.01 specification oil carries the anti-wear additive package these engines need. Run on ordinary diesel oil, even a good full synthetic, the injector lobes and their followers wear rapidly. The first sign is a rhythmic tapping from the top of the engine, then progressively harder starting, a rougher idle and lost power as one injector stops being driven properly. Camshaft, followers and bearing shells are around 300 to 600 euros in parts with four to eight hours of labour, so 800 to 1,800 euros in total. A billet camshaft costs more than a cast replacement and lasts better. This is mainly a concern beyond 150,000 km, but a car with unknown or non-505.01 oil history can show it much earlier, which is why dated oil invoices matter more than service book stamps on these engines.
Automatic gearbox faults (automatic cars only)
€800 - 2,80011 of 13
The 4-speed AG4 and 5-speed AG5 both develop shift faults, and the 130 hp and 150 hp cars were manual only · more· less
Two automatics were offered and neither is a strong point. Pre-facelift cars with the 90 hp AHU or the 110 hp AFN and AVG could have Ford's four-speed AG4, which Volkswagen documents as the 099. Facelift cars with the 115 hp AUY could have the five-speed AG5, Volkswagen's 09B, which is the Jatco JF506E also used by Land Rover, Mazda and Jaguar. The 90 hp ANU, the 130 hp ASZ and the 150 hp BTB were sold with the six-speed manual only, Ford's MT350 and Volkswagen's 02N, so on those outputs the question does not arise. Reported faults are a refusal to upshift when cold, sticking in a single gear, harsh or absent engagement of reverse, and implausible-signal codes from the shift range sensor and the tiptronic contacts. Some of it is electrical, in which case a solenoid or a wiring repair is 300 to 700 euros. A valve body is 800 to 1,500 euros fitted. A rebuild or a good used unit with fitting runs 1,500 to 2,800 euros, which is more than many of these cars are worth. Fluid and filter changes roughly every 60,000 km help, because the fluid is not a lifetime fill in practice. The manual cars are the safer buy.
Injection pump leaks and wear (distributor-pump cars)
€300 - 1,20012 of 13
The Bosch VP37 distributor pump seeps diesel and its quantity adjuster drifts on the 1Z, AHU, AFN and AVG · more· less
The 1Z, AHU, AFN and AVG use a Bosch VP37 rotary distributor injection pump instead of unit injectors. Its known weak points are the top cover seal, the quantity adjuster seal and the main shaft seal, all of which harden with age and let diesel seep out, plus the electronics in the pump head that position the control collar. Symptoms are a diesel smell and a wet, dust-caked pump body, long cranking when hot, an erratic or hunting idle, and power that comes and goes. Resealing at a diesel specialist is roughly 300 to 600 euros; a remanufactured exchange pump is 600 to 900 euros plus fitting and timing, so 900 to 1,200 euros complete. A leaking pump also drips diesel onto the timing belt, which destroys the belt and turns a cheap seal into an engine rebuild if it is left. Because pump work always disturbs the timing belt, it is worth combining the two jobs.
Timing belt tensioner failure on early cars
€1,500 - 3,00013 of 13
German motoring press recorded engine damage from snapped belts, with a revised tensioner from 2001 production · more· less
The 1.9 TDI is an interference engine. If the belt jumps a tooth or snaps, the pistons meet the valves, and the cylinder head, usually the pistons too, are destroyed. ADAC recorded engine damage from broken timing belts on this generation, and a modified belt tensioner was introduced in production from 2001, so cars built before then carry the higher exposure. This is why the belt, tensioner, idler rollers and water pump should always be renewed as a complete kit rather than a belt on its own, and why the job belongs in your fixed budget. The interval depends on the engine rather than on the car: early ANU cars carry a documented 60,000 km or 60 month schedule, while the other versions run to roughly 90,000 to 120,000 km or five years, whichever comes first, so look up the interval for the engine code in front of you instead of assuming the longer one. The figure quoted here is the cost of getting it wrong: a rebuilt or good used engine fitted is typically 1,500 to 3,000 euros, which on a car worth 2,000 to 4,000 euros normally ends its life. If a seller cannot produce a dated invoice for a full kit, price the work in and have it done before you drive the car properly.
Durable engine, but the body and the electrics set the budget
The 1.9 TDI is one of the most durable diesels Volkswagen Group ever built, and 300,000 km is unremarkable with disciplined servicing and the correct oil. On a Galaxy Mk1 today the money goes elsewhere: sills, arch lips, the front subframe and the brake pipes corrode, the door and tailgate looms break their conductors, the ABS unit and the front suspension wear out, and PD cars need documented 505.01 oil to keep their camshafts. Parts are cheap and shared across three badges, and almost any independent workshop in Europe can work on this platform, which keeps real bills down on a sound car. A rusty one, by contrast, is generally not worth repairing.
Service history
Look for dated invoices rather than stamps. On Pumpe-Duese cars, the ANU, AUY, ASZ and BTB, you want proof of VW 505.01 specification oil; on every car you want an invoice for a full timing belt kit.
Cold start
Insist on a genuinely cold start. Listen for prolonged cranking and white smoke, a rhythmic tap from the cylinder head, and a rattle from the bellhousing at idle that stops when the clutch is pressed.
Test drive
At least 30 minutes including motorway speeds. Watch for limp mode above 2,500 rpm, ABS or brake warning lights appearing, and clutch judder on pull-away.
Tyres
Check tread depth, DOT date codes and wear evenness across all four. Uneven front wear on this heavy MPV points to worn wishbones or geometry, not just alignment.
Specific for this vehicle
Get the car on a ramp before you commit
Sills, rear arch lips, the front subframe around the wishbone mounts and the rear axle mounts all have to be seen from underneath. Surface scale is normal at this age; flaking layers and soft spots are not.
Peel back the brake pipe sheathing
The pipes corrode under their plastic covering and look sound from a distance. A full front-to-rear renewal has been quoted at around €750 and two and a half days of workshop time.
Confirm which engine you are actually looking at
1Z, AHU, AFN and AVG are distributor-pump engines; ANU, AUY, ASZ and BTB are Pumpe-Duese. The changeover is not one clean date across Europe, because the 90 hp ANU was already sold in some markets from September 1999 while most cars changed at the April 2000 facelift, so do not read the version off the year. They have completely different weak points and oil requirements. The code is on the service book sticker and stamped on the block.
+ 8 more checksShow less
Ask for the timing belt invoice
Belt, tensioner, idlers and water pump as a kit, dated and with the mileage recorded. Early ANU cars are on a 60,000 km or 60 month interval, the other versions on roughly 90,000 to 120,000 km or five years. Cars built before 2001 used the earlier tensioner design. No invoice means assume it is due and negotiate.
Listen for camshaft tapping on PD cars
Warm engine, idling, bonnet up. A rhythmic tap from the top of the engine points to worn injector lobes. Cross-check against oil invoices showing 505.01 specification.
Check for diesel seepage at the injection pump on distributor-pump cars
Look for a wet, dust-caked film on and below the VP37 pump body and on the timing belt cover. Diesel on the belt will destroy it.
Watch the ABS, ESP and brake lamps through the self-check
All of them must go out. Any that stay lit means module or pressure sensor work and an automatic periodic inspection failure.
Operate every door, window, tailgate and the central locking twice
Lock and unlock from the key, the remote and each door. Run the rear wiper and the heated rear screen. Intermittent behaviour means a fractured conductor in a hinge or tailgate gaiter.
If it is an automatic, drive it from stone cold
The AG4 and the AG5 both show their faults cold. It must take every gear cleanly, engage reverse without a thump and not hold a single gear. Ask when the fluid and filter were last changed.
Test both climate zones and every blower speed
Run the air conditioning on maximum cold for five minutes and check the rear outlets if the rear pack is fitted. A fan that works only on the top setting means a failed resistor.
Lift the boot floor and the carpets
Water enters past door and tailgate seals and pools in the spare wheel well and footwells, rusting the floor and soaking connectors under the seats.
Recalls and Technical Service Bulletins
Brake servo can drag and leave the brakes partly applied; Galaxy built 29 April to 19 July 1996, confirmed by VIN (UK reference R/1996/095, reported at the time as covering Galaxys sold across Europe)Critical - verify completed
Curtain airbags incorrectly wired, so they may not deploy as intended; right-hand-drive Galaxy fitted with curtain airbags and built 30 October 2002 to 14 August 2003, a UK campaign confirmed by VIN and equipment (UK reference R/2003/155)Critical - verify completed
Both entries above are narrow and are settled by the VIN and the equipment on the individual car rather than by model year, so ask a Ford dealer to run the VIN through Ford's field service action lookup, which still shows open actions regardless of the car's age, and check the service book for stamped campaign work. The public EU Safety Gate database only holds vehicle recalls from the mid-2000s onward, so it cannot confirm anything from the first decade of this car's life and the dealer lookup is the more complete source. Campaigns published under a Galaxy heading are often specific to one generation, one body or one steering side, so have any you find checked against the VIN before assuming it reaches your car.
Warranty Status
Factory warranty (Ford Germany, 2 years)Expired on every Galaxy Mk1
Body perforation warrantyExpired on every Galaxy Mk1
Third-party used-car warrantyRarely offered on cars of this age
The last Galaxy Mk1 left the Palmela line in May 2006, so every car is far outside its original Ford Germany two-year factory warranty and any original body perforation cover. Warranty terms of that era differed by market, so a UK, Austrian or Dutch car started from different conditions than a German one. Third-party mechanical warranties are seldom written for a car this old, and those that are almost always exclude corrosion and wear items, which is exactly where the spending on this model goes. Budget for repairs instead of cover.
Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.
This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
