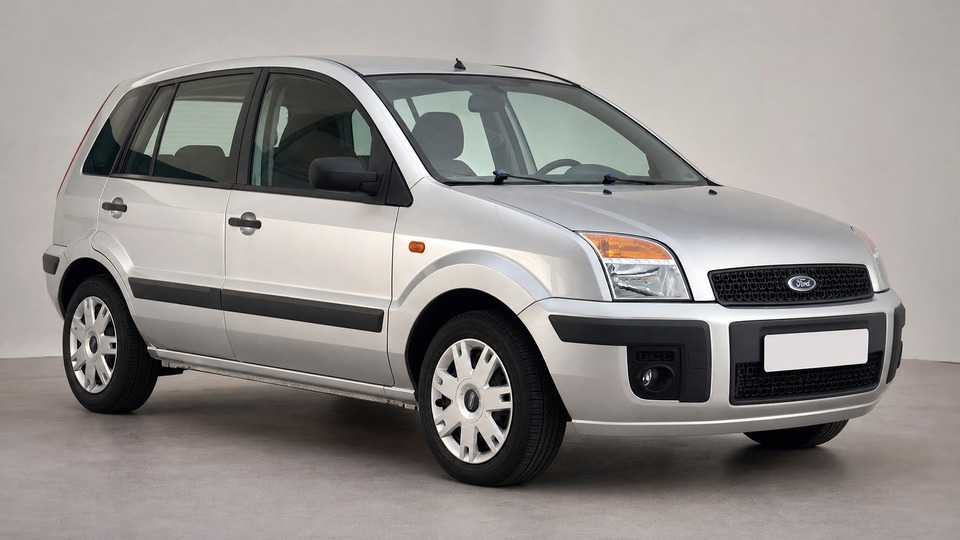

Practical Fiesta-based mini-MPV built in Cologne, sold with the 1.4 TDCi from 2002 until roughly October 2010 while the Fusion range itself continued to 2012, valued for its elevated seating, easy entry, and tall roofline. The 1.4 TDCi uses the PSA-developed DV4 common-rail diesel, a widely used engine also found in the Peugeot 206/207, Citroën C3, and Mazda 2. Parts are cheap and plentiful across Europe, and independent garages know the engine well.· more· less
Very cheap parts and running costsDV4 engine proven across millions of vehicles
Injector seals leak on older enginesBody corrosion on 15+ year old cars
Buy if: You want a practical, economical diesel runabout with a manual gearbox and can find one with verifiable service history.
Avoid if: The car has a Durashift EST automated manual gearbox, or shows significant body corrosion on the sills and wheel arches.
Maintenance costs
€550 – €1,150/year
at 15,000 km/year
Fixed costsservice, tyres, brakes€350 – €650 /yr
Risk bufferunplanned repairs€200 – €500 /yr
Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Maintenance costs
Maintenance assumes 15,000 km a year. Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Durashift EST clutch actuator failure (if equipped)
€300 - 8001 of 7
Automated manual gearbox locks up in gear, preventing engine restart · more· less
The optional Durashift EST is a robotized 5-speed manual with an electro-hydraulic clutch actuator. The actuator commonly fails, locking the gearbox in gear so the engine will not restart because the system cannot select neutral. Symptoms include jerky gear changes, delayed shifts, gearbox warning lights, and juddering when moving off. Problems typically appear between 70,000 and 110,000 km and worsen with frequent stop-start city driving. Specialist actuator repair costs around €150-250, but if the clutch disc is also worn or the electronic control unit is damaged, a full overhaul can reach €500-800. Most Fusions were sold with a conventional 5-speed manual, which is far more reliable and should be strongly preferred.
Injector seal leak and carbon buildup
€150 - 6002 of 7
Copper sealing washers deteriorate, leaking diesel and combustion gases around the injector seats · more· less
The DV4 uses copper sealing washers under each injector that degrade over time. When they fail, diesel and combustion gases leak around the injector seats, producing a strong diesel smell in the engine bay and visible black soot around the cylinder head. If left too long, carbon deposits build up around the injectors and they can seize into the head, making removal extremely difficult. Early replacement of the seals is a straightforward job costing €100-200 at an independent garage. If injectors have seized and need extraction or replacement, the cost rises to €300-600. This issue is very common on DV4 engines over 100,000 km. Using quality diesel and keeping to oil change intervals slows the process.
Body corrosion on sills and wheel arches
€200 - 8003 of 7
Fiesta/Fusion platform has thinner body protection than contemporaries, causing structural rust · more· less
The Ford Fusion shares its body structure with the Fiesta Mk5/Mk6, which has notably thinner corrosion protection than many competitors. Sills, rear wheel arches, door bottoms, and the area around the rear suspension mounts are the most common rust points. On cars over 15 years old that have been exposed to road salt, structural corrosion can become serious enough to fail roadworthiness inspection (MOT/TÜV/APK). Surface rust on outer panels is cosmetic, but corrosion on inner sills and around suspension mounting points is structural and expensive to repair properly. Budget €200-400 for cosmetic repairs, up to €800 if structural welding is needed. Always inspect from underneath.
Coolant pipe cracking at rear of engine
€100 - 4004 of 7
Rigid coolant pipes at the rear of the DV4 become brittle with age and crack at joints · more· less
The DV4 engine has rigid coolant pipes running along the rear of the block that become brittle after 12-15 years. Cracking typically occurs at the joints and can cause a slow coolant leak that is difficult to spot until the level drops significantly. If the leak goes unnoticed and the engine overheats, head gasket damage can follow, turning a €100-200 pipe replacement into a €1,000+ cylinder head repair. On any Fusion this old, preventive replacement of these pipes during a timing belt service is sensible. The pipes themselves cost €20-40, but access requires partial engine component removal, bringing total labor to €100-300.
Turbocharger failure from oil starvation
€600 - 1,2005 of 7
KP35 turbo fails when the oil feed banjo bolt mesh clogs with carbon deposits · more· less
The DV4 uses a small KP35 turbocharger that is sensitive to oil quality and change intervals. The oil feed pipe to the turbo has a fine mesh filter in the banjo bolt that can clog with carbon particles, starving the turbo bearings of lubrication. Symptoms include blue/grey smoke under acceleration, a whining noise from the turbo, and progressive power loss. Properly maintained units typically last 200,000-300,000 km, but neglected oil changes can cause failure from 120,000 km onwards. A replacement turbo costs €300-500 for a reconditioned unit or €500-800 new, plus €200-400 labor. Always replace the oil feed pipe and banjo bolt mesh at the same time.
EGR valve clogging
€150 - 4006 of 7
Exhaust gas recirculation valve clogs with soot, causing rough idle and power loss · more· less
Short-trip city driving accelerates carbon buildup in the EGR valve, which can become critically blocked by 100,000-130,000 km on cars used predominantly for urban driving. Symptoms include rough idle, hesitation under load, black smoke, and the check engine light. Mechanical cleaning of the valve restores performance in most cases and costs €80-150 at an independent garage. Replacement with a new valve costs €200-400 including labor. Regular highway driving helps keep the EGR cleaner, and some owners choose to have the EGR cleaned at each major service interval as preventive maintenance.
Fuel return line deterioration
€50 - 2007 of 7
Rubber fuel return lines weaken with age, allowing air into the diesel system · more· less
The rubber fuel return lines on the DV4 become porous and develop micro-cracks after 10-15 years. This allows air to enter the fuel system, which causes difficult cold starting, extended cranking, and occasional stalling after standing overnight. The symptoms often mimic more expensive injector or fuel pump faults, leading to unnecessary diagnostic costs. The return lines themselves are inexpensive (€10-30 for the hose kit), but the diagnosis can take time if the mechanic is not familiar with this common DV4 trait. Replacement of all rubber fuel lines as a preventive measure during a major service is worthwhile on any Fusion of this age.
Cheap to fix but age brings predictable weak points
The DV4 engine is fundamentally robust and many examples exceed 200,000 km with proper oil changes and fuel filter maintenance. The main ownership risks are age-related: coolant pipes crack, fuel lines perish, injector seals leak, and body corrosion progresses. None of these are expensive individually, but on a 15-25 year old car several may need attention at once. The Durashift EST automated manual gearbox is the single most expensive potential failure; manual gearbox versions are significantly cheaper to maintain and should be strongly preferred.
Service history
Complete Ford dealer or independent garage records. Verify oil changes at least annually and timing belt replacement at the recommended interval.
Tires
Check tread depth, age (sidewall date codes), and uneven wear that could indicate suspension or alignment problems.
Cold start
Start the engine completely cold. Listen for excessive diesel clatter, rattling, or blue/grey smoke that persists beyond the first 30 seconds.
Test drive
Minimum 20 minutes including urban and faster roads. Monitor all dashboard warning lights and listen for turbo whine or unusual exhaust smoke under load.
Specific for this vehicle
Check for diesel smell around injectors
Open the bonnet and smell around the top of the engine near the injectors. A strong diesel odour or visible black soot indicates leaking injector seals.
Confirm gearbox type (manual vs Durashift)
Check whether the car has a conventional 5-speed manual or the Durashift EST automated manual. Manual is strongly preferred. If Durashift, test extensively for jerky shifts, juddering, and warning lights.
Inspect body for structural corrosion
Check the sills, rear wheel arches, door bottoms, and area around rear suspension mounts for rust. Poke suspect areas with a screwdriver. Structural corrosion is a roadworthiness failure.
+ 3 more checksShow less
Inspect coolant level and pipes at rear of engine
Check coolant level is correct and look for white residue or staining on the pipes at the rear of the engine block. Low coolant with no visible front leak suggests a rear pipe crack.
Watch for smoke under acceleration
During the test drive, accelerate firmly from low revs and check the mirrors for blue, grey, or excessive black smoke. Blue/grey indicates turbo seal or oil issues. Persistent black smoke suggests injector or EGR problems.
Verify timing belt replacement history
The DV4 is an interference engine. Ford's own interval table for this engine is 240,000 km or 10 years on earlier builds and 200,000 km or 10 years on later ones, so age is usually the trigger rather than distance. Ford advises confirming the exact schedule against the VIN. If the belt is undocumented or outside its interval, budget for immediate replacement.
Recalls and Technical Service Bulletins
Rear axle weld seam defect (built August 2002)Verify if applicable
Steering control loss risk, possible steering column fault (built August-September 2006)Verify if applicable
Contact a Ford dealer with the VIN to verify these recalls have been completed. Each affects a narrow production window of only a few weeks, so applicability depends on the exact build date rather than the model year. Two further Fusion campaigns do not belong to this engine: the October to November 2007 power steering belt campaign covered the 1.25, 1.4 and 1.6 Duratec petrol engines, and the September 2011 rear suspension bolt campaign postdates the end of 1.4 TDCi production.
Warranty Status
Factory warranty2 years in Germany, 3 years in the UK. Expired on all Ford Fusion models
Rust perforation warranty (12 years)Expired on all models
All European Ford Fusions are well outside their original factory warranty, which was two years in Germany and three in the UK, and their 12-year rust perforation warranty. Third-party extended warranties are available but rarely cost-effective given the car's low value and cheap parts.
Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.
This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
