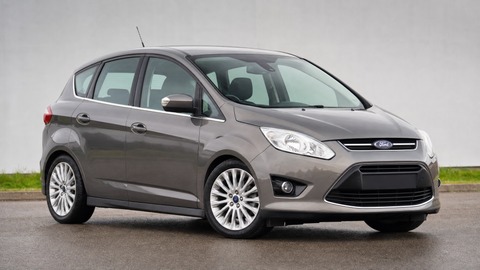

Ford C-MAX 1.5 TDCi Mk2

The C-MAX Mk2 uses the same electric power-assisted steering rack as the Focus Mk3, with an integrated motor and control module. Water ingress through the column-side boot corrodes internal electronics, triggering fault codes U3000-49 or U3000-53. Symptoms include complete loss of power assistance without warning, intermittent assistance on startup, or a 'Power Steering Assist Fault' message. The EPAS unit and rack are factory-matched and cannot be separated, so the entire rack assembly must be replaced. A remanufactured unit costs €600-1,200, with 3-5 hours of labour since the subframe must be partially lowered. Total repair at an independent garage runs €1,200-1,800, rising to €2,500 at a Ford dealer with a new OEM rack. Models built 2011-2015 have the highest failure rate; 2016+ models with improved sealing are less affected.

In late 2024, Ford issued a large-scale recall affecting diesel vehicles including the C-MAX 1.5 TDCi. The DPF filter material develops hairline cracks from repeated regeneration cycles, allowing particulate matter to bypass the filter. This results in failed emissions tests and elevated exhaust particle output. Ford's fix involves a software calibration update and, if necessary, DPF replacement free of charge. Owners who previously paid for DPF replacement can claim reimbursement with proof of payment. Newly installed filters under this recall carry a 10-year or 160,000 km warranty. Verify with your VIN whether this recall has been completed. If you are purchasing a car that has not had the recall done and the DPF is already damaged, replacement costs €800-1,500 outside the recall programme.

Independent of the recall above, the DPF requires sustained driving at motorway speeds for 15-20 minutes to reach the temperatures needed for passive regeneration. The C-MAX, often used as a family car for short school runs and urban errands, is particularly susceptible to this problem. Each incomplete active regeneration attempt dumps unburned diesel into the engine oil, raising the oil level and diluting lubrication. Symptoms include the DPF warning light, loss of power, and limp mode. A forced regeneration at a garage costs €100-150. Professional DPF cleaning costs €300-500. A new aftermarket DPF costs €500-800 fitted. In severe cases where oil has been heavily diluted, an oil flush and change are also necessary. Check the oil level before purchase: if it is significantly above the maximum mark, it indicates diesel contamination from failed regeneration cycles.

The electronically controlled EGR valve accumulates carbon deposits from recirculated exhaust gases. Urban driving and short trips accelerate the problem. Symptoms include rough idle, hesitation on acceleration, increased smoke, and fault codes related to EGR position or intake airflow. Cleaning the EGR valve costs €150-250 at a garage. A new valve with programming costs €400-700 at an independent specialist. Regular motorway driving at higher RPMs helps keep the valve clearer. Some owners find cleaning is needed every 40,000-60,000 km in urban-heavy use. Ford released a software update that cycles the valve periodically to reduce buildup, so verify whether this update has been applied.

The 1.5 TDCi uses a variable-geometry turbocharger. The wastegate actuator can stick from carbon deposits, particularly on gently driven cars, causing boost pressure faults and limp mode. Small cracks can also develop in the vacuum tubing, preventing proper actuator operation. Check all vacuum lines before replacing the turbo. If only the actuator is faulty, repair at a specialist costs €500-600. Full turbo bearing failure is relatively rare and usually caused by oil starvation from neglected maintenance. A replacement turbo fitted at an independent specialist costs €1,200-1,800, rising to €2,200 at a Ford dealer.

The dual mass flywheel absorbs torsional vibration from the diesel engine. Typical failure occurs between 130,000-180,000 km depending on driving style. Symptoms include metallic rattling at idle, vibration through the pedals, and difficulty engaging gears smoothly. When replacing the DMF, the clutch disc, pressure plate, and concentric slave cylinder should be replaced simultaneously since the gearbox must be removed anyway. Parts (DMF + clutch kit + CSC) cost €400-700. Labour adds €500-800. Total at an independent garage is €900-1,400, at a Ford dealer €1,500-1,800. Urban stop-start driving accelerates DMF wear.

If your C-MAX has the PowerShift automatic, it uses the DPS6 dry-clutch dual-clutch transmission. This gearbox has been subject to class-action lawsuits in several countries due to premature clutch wear, input shaft seal leaks contaminating the dry clutches, jerky shifts, and stalling at junctions. Symptoms typically appear between 40,000-80,000 km. Ford has offered some goodwill repairs, but many cars are now outside any warranty or goodwill period. Clutch pack replacement costs €1,200-1,800. If the mechatronic unit is also damaged, costs rise to €2,000-2,500. Manual gearbox C-MAX models are significantly more reliable. Before buying any PowerShift-equipped car, test-drive for at least 20 minutes in urban traffic to reveal jerking or hesitation.

The thermostat housing is made of plastic and can deform over time from heat cycling, developing coolant leaks. If the leak goes unnoticed, coolant loss can lead to overheating. The 1.5 TDCi aluminium head is sensitive to overheating, so even brief temperature spikes can cause damage. The thermostat housing and seal replacement costs €300-600 depending on whether the water pump is also replaced at the same time (recommended if the car is over 100,000 km). Regular coolant level checks are essential.

Water enters behind the exterior mirror cover through an improperly sealed door wiring harness, causing short circuits in the driver or passenger door module (DDM/PDM). This can disable power windows, central locking, child locks, and door speakers. The fix involves removing the door trim to dry out or replace affected components, then resealing the door mirror. Parts and labour typically cost €200-500 depending on the extent of damage. Ford has issued a technical service bulletin addressing this issue. When inspecting a C-MAX, check that all windows, locks, and speakers work on both sides.
