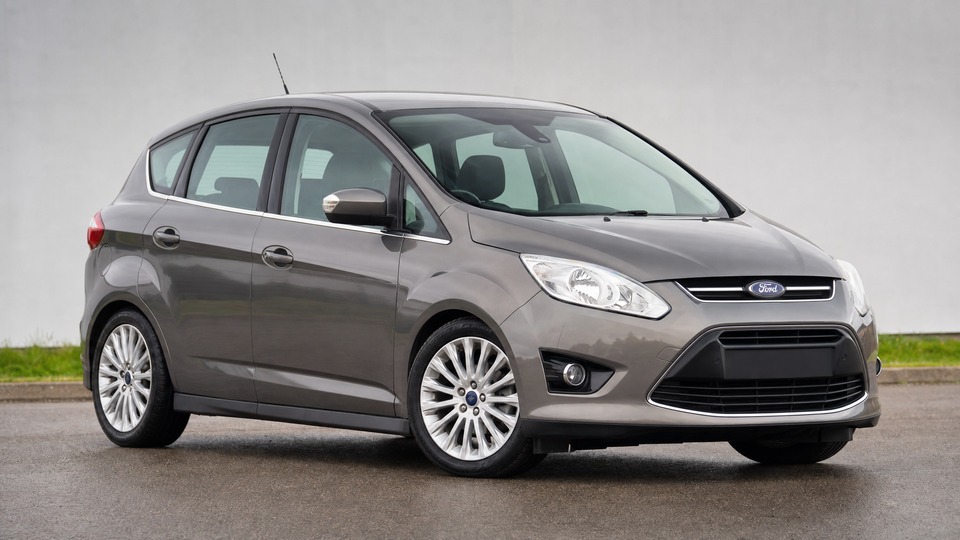

Ford C-MAX 1.0 EcoBoost Mk2

The 1.0 EcoBoost in the C-MAX Mk2 (pre-2018 production) uses a wet timing belt running submerged in engine oil rather than a conventional chain or external belt. Over time, heat cycling and fuel dilution from short trips cause the rubber to swell, crack, and delaminate. Shed fragments accumulate on the oil pump pickup screen, restricting oil flow to the crankshaft and turbo bearings. This can lead to complete engine seizure at highway speed with no prior warning beyond a brief oil pressure flicker. Ford's original replacement interval was 10 years / 240,000 km, later quietly revised downward to 160,000 km, but UK and European specialists widely recommend replacing the belt at 80,000-120,000 km or 6-8 years. In the heavier C-MAX body the engine runs at higher loads, which may accelerate belt wear compared to the lighter Fiesta or Focus. Preventive belt replacement costs €900-1,500 including parts, seals, and 8-12 hours of labour. If the belt has already caused oil pump blockage and engine damage, a replacement engine runs €3,000-5,000 fitted. Using the correct oil specification (Ford WSS-M2C948-B 5W-20) and changing it every 10,000-15,000 km is critical for belt longevity. BBC Watchdog highlighted this issue in 2020 and Ford offered goodwill support for some affected owners.

The 1.0 EcoBoost runs extremely hot by design, and its aluminium cylinder head has very low tolerance for overheating. Several components in the cooling circuit are prone to failure. The nylon degas hose (connecting turbo to expansion tank) on cars built between October 2011 and October 2013 becomes brittle and can crack, dumping coolant rapidly. Ford issued a field service action for this and funded 100% of repair costs on affected vehicles. On later cars (2014+), the hose was redesigned using a rubber-and-metal assembly, but the thermostat housing, water pump O-ring seal, and expansion tank remain weak points. Any coolant loss that goes unnoticed can warp the aluminium head within minutes. A replacement degas hose or expansion tank costs €150-300 fitted. Water pump and thermostat housing replacement runs €350-600. If the head has warped, a head gasket job costs €1,500-2,500. Check the coolant level and condition at every service and watch the temperature gauge closely during test drives.

One of the most common and widely reported 1.0 EcoBoost issues. The one-way check valve on the vacuum pump sits directly above the turbocharger, where it endures extreme heat cycling. The rubber valve gradually deteriorates and crumbles. When it fails, the turbo wastegate cannot be actuated and the car drops to roughly 30-40 hp with no dashboard warning. The C-MAX feels particularly sluggish in this state due to its weight. This is frequently misdiagnosed as a turbo or vacuum pump failure, with some garages quoting €500 or more for unnecessary parts. The actual fix is a €20-40 replacement valve that takes minutes to fit with a single Torx screw. Before authorising any expensive turbo work, always ask the mechanic to check this valve first. Regular spirited driving and avoiding exclusively short trips helps extend valve life.

Turbo failure on the 1.0 EcoBoost is typically a secondary issue caused by oil supply problems rather than a defect in the turbo itself. Wet belt debris in the oil, a clogged pickup screen, or infrequent oil changes can damage the Continental turbocharger bearings (spinning at up to 248,000 rpm). Symptoms include a rising siren-like whine under boost, blue smoke on overrun, and eventually complete boost loss. The wastegate actuator bushing can also wear over time, causing a characteristic rattle at idle. A replacement turbo fitted by an independent specialist costs €800-1,200, or up to €1,500 at a Ford dealer. Fitting a new turbo without addressing the root cause (contaminated oil, blocked pickup) leads to repeat failure within weeks. The C-MAX's heavier body means the turbo spends more time under load than in lighter models, potentially accelerating wear. Regular oil changes with the correct Ford specification are the best preventive measure.

The 1.0 EcoBoost in the C-MAX is paired with a 6-speed manual gearbox and dual mass flywheel. The C-MAX weighs roughly 1,350-1,450 kg, which is 100-150 kg more than a Focus with the same engine. This extra mass means the clutch and DMF work harder during stop-start driving and hill starts. DMF failure typically manifests as a rattle or judder at idle, particularly noticeable in neutral with the clutch pedal released. It can also cause difficulty engaging gears. Most DMF failures occur between 80,000-130,000 km depending on driving conditions, with frequent urban stop-start driving accelerating wear. A combined clutch and DMF replacement costs €700-1,400 depending on parts choice and labour rates. Ford recalled certain 2012-2016 C-MAX models over a clutch pressure plate fracture risk, so verifying this recall completion is important.

The C-MAX shares its front suspension design with the Focus Mk3 but carries more weight, which accelerates bush wear. The lower arm rear bushes are the most common failure point, typically becoming audible as a creaking or knocking noise over speed bumps and during low-speed manoeuvres from around 60,000-90,000 km. The rubber dries out and cracks, allowing metal-on-metal contact. Worn bushes also cause vague steering feel and uneven tire wear. A pair of lower arm bushes replaced at an independent garage costs €200-350 including alignment. A full lower arm replacement (both sides) runs €350-500. This is a common MOT/TUV advisory item on higher-mileage C-MAX models. The front anti-roll bar drop links are another common wear item but are cheap to replace at around €80-120.
