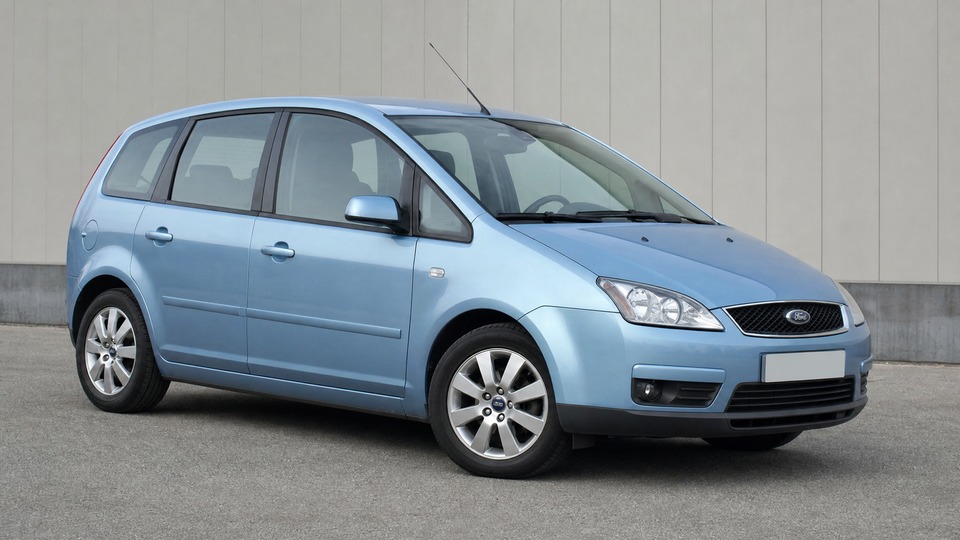

Ford C-MAX 1.6 TDCi Mk1

The 1.6 TDCi uses a Garrett GT15 variable geometry turbocharger fed by a small banjo bolt and oil feed pipe. Over time, carbon sludge accumulates in this pipe, restricting oil flow to the turbo bearings. Without adequate lubrication, the turbo overheats and fails. The problem is most common on 2007-2009 models and on cars where oil changes were extended beyond 15,000 km. Ford's official repair involves two oil flushes, sump and strainer replacement, new oil filter housing, new turbo, and modified oil feed pipes with inline filters. At a Ford dealer this runs around €2,000-2,500. Independent specialists can do it for €1,500-1,800. Preventive maintenance is key: use quality 5W-30 oil, change it every 12,000 km maximum, and have the oil feed pipe inspected or replaced at 80,000-100,000 km.

Models from 2005 onwards are fitted with a DPF that requires periodic high-temperature regeneration to burn off accumulated soot. Cars used predominantly for short urban trips (school runs, supermarket trips) rarely reach the exhaust temperatures needed for regeneration, leading to progressive blockage. Symptoms include the engine warning light, reduced power, and increased fuel consumption. A professional DPF clean costs €200-400. If the filter is beyond cleaning, a replacement DPF costs €600-1,000 fitted at an independent shop, or up to €1,400 at a Ford dealer. Some cars also use an additive system (Eolys fluid) that assists regeneration; if the additive tank runs dry, clogging accelerates. Pre-2005 models generally lack a DPF and avoid this issue entirely.

The 1.6 TDCi uses a dual mass flywheel to dampen engine vibrations through the drivetrain. Over time the internal springs weaken, causing a characteristic rattle at idle and judder during clutch engagement. The C-MAX's higher kerb weight compared to the Focus means slightly more clutch and DMF wear. Ford dealers have noted high volumes of cracked pressure plates on these engines. Replacement of the DMF and clutch together costs approximately €800-1,000 at an independent garage, or €1,200-1,400 at a Ford dealer. Typically occurs between 100,000-150,000 km, earlier if the car is driven in heavy traffic.

The EGR valve on the 1.6 TDCi is prone to carbon buildup, particularly on cars used for short trips where the engine rarely reaches full operating temperature. Symptoms include loss of power, black smoke, rough idle, and the engine management light illuminating. Cleaning the EGR valve is a temporary fix costing around €100-150, but the carbon returns within months. A replacement EGR valve costs €200-350 including fitting at an independent shop. Ford dealers charge €350-500 for the complete job. Some owners opt to blank off the EGR, which solves the problem but is not road-legal for emissions testing purposes.

The copper washer seals between the injectors and the cylinder head degrade over time, allowing high-pressure combustion gases to escape. This creates a distinctive build-up of black carbon crust around the injectors, commonly referred to as 'black death'. If caught early, replacing the copper seals is a straightforward job costing €80-150. However, if the blow-by has been occurring for extended periods, the injector seat in the cylinder head can erode, requiring machining with a flat cutter tool and potentially new injectors at €250-350 each. A complete set of four injectors with seals and coding runs €1,000-1,200. This issue tends to start around 60,000-80,000 km.

Broken front springs are a commonly reported issue on the C-MAX Mk1, particularly on cars driven on rough or potholed roads. The break usually occurs at the bottom coil and may initially go unnoticed until it causes uneven handling or fails a roadworthiness inspection. Springs should always be replaced in pairs to maintain balanced handling. A pair of front springs with fitting costs €200-400 depending on parts quality. This issue becomes more likely after 80,000-100,000 km or 8-10 years of use, as corrosion weakens the spring material.

A small number of C-MAX 1.6 TDCi models were sold with the Durashift EST (Electronic Shift Technology) automated manual gearbox. This is essentially a manual gearbox with a computer-controlled clutch and gear selection, and it is widely regarded as unreliable. Common failures include the clutch actuator, gear position sensors, and the control module. Symptoms include jerky gear changes, failure to engage gear, and dashboard warning messages. Repairs range from €800 for actuator replacement to €2,000-2,500 for a complete overhaul. Manual gearbox versions avoid this issue entirely and are significantly more reliable. If buying a C-MAX, a manual gearbox is strongly recommended.
