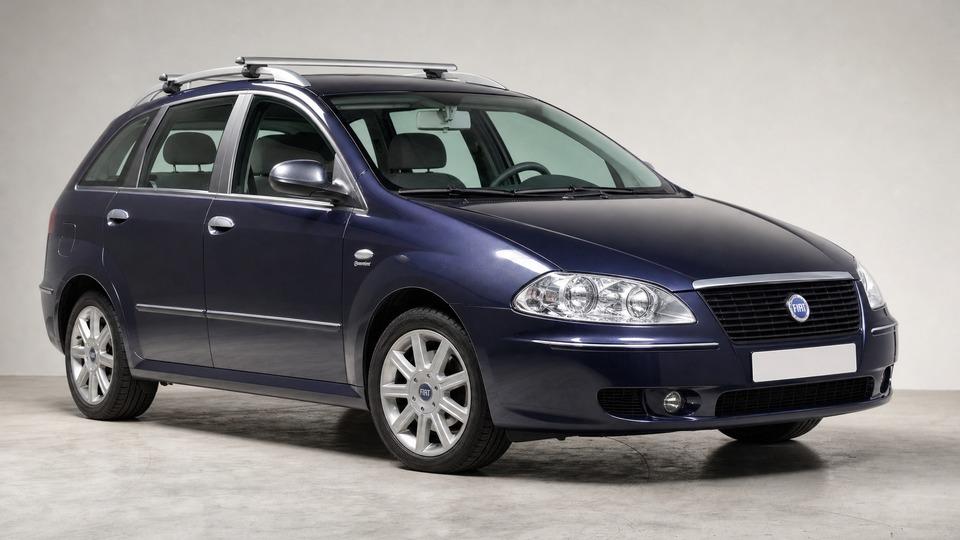

The second-generation Fiat Croma (type 194) is a large five-door estate built on the GM Epsilon platform, the same architecture that underpins the Opel Vectra C, Saab 9-3, and Opel Signum. Not to be confused with the original 1985-1996 Croma saloon, this generation was produced from 2005 to 2010 with a facelift in late 2007 and was never a strong seller outside Italy. The shared GM platform means engine and drivetrain parts are widely available through the Opel/Vauxhall aftermarket, though Fiat-specific body panels, trim, and electrical modules are increasingly scarce for this discontinued low-volume model.· more· less
GM platform parts widely availableSpacious and comfortable cruiser
Body and trim parts hard to sourceElectrical reliability is poor
Buy if: You want a spacious diesel estate at a very low purchase price and can find one with complete service history and minimal rust.
Avoid if: You need readily available body parts, reliable electrics, or plan to keep the car without access to a specialist familiar with the GM Epsilon platform.
Price & maintenance
Used price
€2,000
median asking price, typically 230,000 km
Typical range€1,500 – €2,700
Kilometres drivenAll
Maintenance cost
€700 – €1,250/year
at 15,000 km/year
Fixed costsservice, tyres, brakes€450 – €700 /yr
Risk bufferunplanned repairs€250 – €550 /yr
Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Ownership costs
Maintenance assumes 15,000 km a year. Price estimates are based on German asking prices. Prices and costs vary by vehicle condition and location.
Swirl flaps seize from carbon buildup and can break into the engine · more· less
The 16-valve 939A2.000 engine has swirl flaps in the intake manifold that accumulate carbon deposits from the EGR system mixed with oil vapour. Over time these flaps seize, triggering a P1109 fault code, rough idle, and reduced power. The more serious risk is the actuator rod or flap shaft snapping, which can send metal debris into the cylinders and cause catastrophic engine damage. Typical onset is between 80,000 and 140,000 km. Replacement of the complete intake manifold costs €600-900 in parts plus labour. Many specialists remove the flaps entirely and remap the ECU to compensate, at a cost of €400-600. This issue does not affect the 8-valve 939A1.000, which has no swirl flaps.
M32 gearbox bearing wear (manual cars)
€500 - 1,2002 of 8
Sixth-gear bearing wears and causes whining at highway speeds · more· less
The 6-speed manual gearbox on the Croma is the M32, shared across the GM Epsilon platform. Its sixth-gear bearing is a known weak point that wears over time, producing a characteristic whining noise at highway speeds above 100 km/h that disappears when the clutch is depressed. Typically manifests between 80,000 and 130,000 km. If ignored, the bearing can fail completely and damage the gear cluster. A bearing set replacement costs €500-700 at a specialist. If the gear teeth are also damaged, a full rebuild runs €800-1,200. This issue does not apply to cars with the 6-speed Aisin AF40-6 automatic, which was available on the 16v only.
EGR valve carbon buildup
€300 - 6003 of 8
Carbon deposits restrict the valve, causing rough running and warning lights · more· less
Both the 939A1.000 and the 939A2.000 accumulate carbon in the EGR valve, restricting exhaust gas recirculation and causing rough idle, poor throttle response, and engine management warnings. Short-trip driving accelerates this problem significantly. Cleaning the EGR valve costs €150-250 and is effective if done early. A replacement valve costs €300-400 in parts plus labour. On the 16v 939A2.000, a clogged EGR also contributes to faster swirl flap fouling, making regular EGR maintenance particularly important on that variant.
Turbo failure or VNT vane sticking
€800 - 2,0004 of 8
Variable-geometry vanes can seize, and both the 120 hp and 150 hp engines are affected · more· less
Fiat fitted a variable-geometry Garrett VGT 17 turbocharger to both the 120 hp 8v 939A1.000 and the 150 hp 16v 939A2.000, so this risk applies equally to either engine. The vanes can seize from carbon and soot accumulation, especially on cars used primarily for short trips. Symptoms include loss of power, excessive smoke, and limp mode. A reconditioned turbo with fitting costs €800-1,200, while a new OEM turbo with installation runs €1,500-2,000. Regular motorway driving and quality oil help prevent vane sticking on both versions.
DPF clogging and regeneration failure
€400 - 1,5005 of 8
Short-trip driving prevents regeneration, so confirm whether the individual car has a DPF · more· less
Fiat's UK launch specification fitted a diesel particulate filter to both 1.9 MultiJet engines from launch, so the 8v cannot be assumed to be DPF-free. Fitment varies by market and emissions standard, so check the individual car rather than the engine code. Short-trip urban driving prevents the automatic regeneration cycle, causing the filter to clog. A forced regeneration at a workshop costs €100-200. If the DPF is severely blocked, professional cleaning services run €300-500, and full replacement costs €800-1,500 depending on whether OEM or aftermarket parts are used. DPF-equipped cars need regular sustained motorway driving of at least 20-30 minutes to trigger passive regeneration.
Alternator premature failure
€250 - 5006 of 8
Multiple owners report alternator replacements between 60,000 and 100,000 km · more· less
The alternator on the Croma is a commonly reported failure point, with some owners replacing it two or three times over the car's life. Symptoms include flickering dashboard lights, a battery warning light, and difficulty starting. A replacement alternator including fitting costs €250-400 for a remanufactured unit or €350-500 for new OEM. Given that all remaining Cromas are now over fifteen years old, checking the alternator output with a multimeter during any pre-purchase inspection is advisable.
Structural rust on sills, wheel arches, and subframe
€400 - 1,5007 of 8
Age-related corrosion concentrated on sills, wheel arches, and subframe mounting points · more· less
All surviving Cromas are now over fifteen years old, and structural rust is an increasing concern. Common areas include the front and rear wheel arches, lower door sills, and subframe mounting points. The shared Epsilon platform means subframe corrosion follows the same pattern as the Opel Vectra C, where compromised mounts can be a TUV/MOT failure point. Cosmetic repairs cost €200-400 per panel, while structural welding on sills or subframe mounts runs €400-1,000 depending on severity. A thorough underbody inspection on a lift is essential before purchase.
Door handles, boot lock, and electrical component failures
€200 - 8008 of 8
Interior and exterior door handles, boot lock, and various electrical items commonly fail · more· less
A recurring ownership complaint on Fiat Croma forums is the failure of small body components: interior door handles break (€50-100 each to replace), the boot lock solenoid fails and prevents boot opening (€100-200), rear wiper motors seize (€80-150), and parking sensors stop working (€50-100 per sensor). Individually these are minor, but they accumulate over time. Sourcing these Fiat-specific parts is increasingly difficult as the Croma has been out of production for over fifteen years and was never a high-volume model. Used parts from breakers and generic aftermarket suppliers are often the only practical options.
Proven engine on an aging platform with limited parts supply
The 1.9 MultiJet engine in both 939A1.000 (120 hp) and 939A2.000 (150 hp) form is a well-documented unit shared with millions of Opel and Saab cars, where it carries the Z19DT and Z19DTH codes, and many examples have exceeded 250,000 km. The main challenges are not the engine itself but the surrounding systems: the M32 gearbox bearing on manual cars, ageing body electrics, and structural rust on cars that are all now over fifteen years old. Parts for the mechanical drivetrain remain available through the GM/Opel aftermarket, but Fiat-specific body panels, trim, and electrical modules are scarce and may require patience to source.
Service history
Complete records from a Fiat dealer or independent specialist are essential. Verify timing belt and water pump replacement dates and mileage.
Tires
Check tread depth, age (date codes on sidewall), and uneven wear patterns. The Croma is a heavy car and wears tires faster than average.
Cold start
Start the engine completely cold. Listen for unusual knocking, rattling, or excessive smoke on startup.
Test drive
Drive for at least 30 minutes including sustained highway driving to check for gearbox whine and allow DPF regeneration conditions.
Specific for this vehicle
Listen for gearbox whine at highway speeds (manual only)
At 100+ km/h in 6th gear, listen for a whining noise that disappears when you press the clutch. This indicates M32 sixth-gear bearing wear.
Inspect sills, wheel arches, and subframe from underneath
Use a lift or inspection pit. Check for bubbling paint, rust perforation on sills, and compromised subframe mounting points. This is the most important structural check on a car this age.
Test all door handles, boot lock, and rear wiper
Open and close every door from inside and outside. Try the boot release and manual release. Test the rear wiper. These components commonly fail and replacements are hard to source.
+ 3 more checksShow less
Check for swirl flap symptoms (16v 939A2.000 only)
Scan for P1109 fault code. Rough idle, hesitation under load, and reduced power can indicate stuck or failing swirl flaps in the intake manifold.
Verify timing belt and water pump replacement
The 1.9 MultiJet has a 140,000 km interval, with a five-year maximum in normal use and four years only under demanding use. On a car this age, the belt should have been replaced multiple times. Ask for receipts.
Check alternator output with a multimeter
With the engine running, battery voltage should read 13.8-14.4V. Flickering dashboard lights or a history of repeated battery replacements suggest alternator problems.
Recalls and Technical Service Bulletins
Fiat safety recall 5240 (4 September 2007): potentially non-compliant axle shafts could come out of position, covering 313 Croma 1.9 MultiJet 120/150 in chassis range 2076300-2078363Critical - verify completed
Contact a Fiat dealer with the VIN to verify all recall campaigns have been completed. Given the age of these vehicles, some earlier campaigns may have been addressed years ago but documentation can be missing. Recall 5240 covers only a narrow chassis range, so ask the dealer to confirm whether the specific car falls inside it and, if so, that the work was carried out.
Warranty Status
Factory warranty (Italy 3 years, UK 2 years plus 1 dealer year)Expired on all Fiat Croma models
Rust perforation warranty (8 years)Expired on all examples
Fiat advertised a three-year warranty for the Croma in Italy, while UK cars had a two-year manufacturer warranty plus a one-year dealer warranty. Every Fiat Croma 194 is now well outside whichever term applied to it, and outside the 8-year rust perforation warranty. Third-party extended warranty cover is unlikely to be available or cost-effective for a car of this age and value.
Sources: Research draws on model-specific owner forums and owner communities, recall information from official authorities, German automotive press, and multiple workshop cost references cross-checked against each other.
This report is for informational purposes only and does not constitute professional advice. Estimates may be inaccurate. Always have a qualified specialist inspect the vehicle before purchase. We accept no liability for decisions made based on this information.
