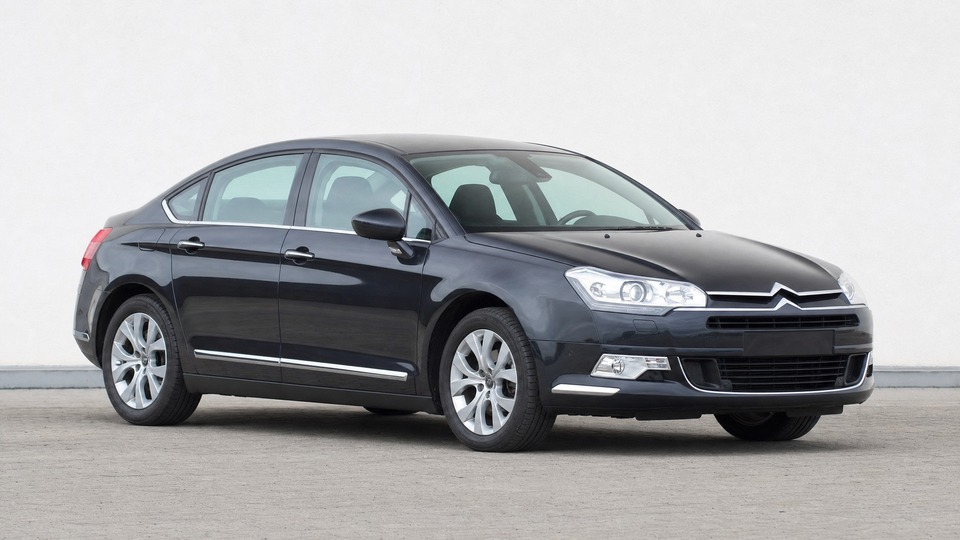

The second-generation Citroën C5 was the last production car to feature the brand's legendary Hydractive hydraulic suspension, delivering ride comfort that few rivals could match. The 1.6 HDi is the entry-level diesel, offering good fuel economy of around 5-6 L/100 km. Available as a sedan or Tourer estate, it competed with the Peugeot 508, Ford Mondeo, and Opel Insignia but never achieved their sales volumes in Western Europe.· more· less
Water ingress corrodes the input shaft seal, causing hydraulic fluid leaks that cannot be repaired without full rack replacement · more· less
This is a well-documented design flaw on the C5 X7. Water enters around the steering column shaft input seal, corrodes the union, and destroys the seals. Citroën does not sell replacement seals separately, so the entire rack must be replaced. In a poll of over 600 C5 X7 owners, steering rack failure was the most commonly reported fault at 11% of all votes. The issue predominantly affects 2008-2013 models. Citroën released a revised rack design but even some replacement units have eventually developed the same leak. An aftermarket or remanufactured rack with labor costs around €800-1,200, while a genuine Citroën replacement with all associated pipes and fluid runs €1,800-2,500. Despite its prevalence, Citroën never issued a recall for this issue.
Hydractive suspension sphere degradation
up to €1,2002 of 8
Gas-filled spheres lose pressure over time, causing the car to sag when parked and producing a harsh ride · more· less
The Hydractive 3 system on the 1.6 HDi uses 4 spheres (2 front, 2 rear), while the Hydractive 3+ version has 6-7 spheres. These nitrogen-filled spheres gradually lose pressure through the diaphragm, typically after 60,000-100,000 km. Symptoms include the car sitting low after being parked overnight, a noticeably harsher ride, and the suspension pump running excessively at startup. Original Citroën spheres cost approximately €170 each (€1,200 for a full set of 7 including accumulators), while aftermarket alternatives from Poland or Eastern Europe can be found for €400-600 for a complete set. Original Citroën spheres are recommended for best longevity.
BHI suspension pump failure
up to €1,6003 of 8
Carbon brushes in the hydraulic pump wear out, causing suspension to stop raising the car · more· less
The Built-In Hydraulic Unit (BHI) is a self-contained electro-hydraulic pump in the front wing that supplies fluid to the suspension struts and steering rack. Common failures include worn carbon brushes (the most frequent cause), blown 40-50A maxi-fuses, relay failure, and internal pump seizure from LDS fluid contamination. A brush replacement kit costs €25-40, but requires pump removal. A remanufactured BHI unit costs around €500-800 installed, while a new OEM unit from Citroën is approximately €1,600 and increasingly difficult to source since PSA discontinued hydropneumatic production in 2017. Only LDS fluid must be used; LHM green mineral fluid from earlier Citroëns will destroy the seals.
DPF clogging and EOLYS additive depletion
up to €1,2004 of 8
Short trips prevent DPF regeneration, leading to soot buildup and depollution system warnings · more· less
The 1.6 HDi uses a cerine-based additive system (EOLYS) to lower the DPF regeneration temperature from approximately 550 to 450 degrees Celsius. The additive tank holds enough for roughly 80,000-120,000 km of driving, after which it needs refilling (approximately €80-150 for fluid plus diagnostics). If regeneration cycles are repeatedly interrupted by short trips, soot accumulates above 70-80%, at which point passive regeneration can no longer clear it. A forced regeneration via diagnostic tool costs €100-200. If the DPF is blocked beyond recovery, replacement costs €400-800 for an aftermarket unit or up to €1,200 for OEM. Cerine deposits from the additive cannot be burned off and eventually clog the filter permanently, typically after 150,000-200,000 km.
EGR valve clogging
up to €6005 of 8
Carbon and oil deposits block the EGR valve, causing rough idling and reduced power · more· less
The exhaust gas recirculation valve on the DV6 1.6 HDi engine accumulates soot and oil deposits, particularly when the car is used primarily for urban driving. Symptoms include rough idle, loss of power, increased fuel consumption, and the engine management light. The valve can often be removed and cleaned as a first step (cost: €100-200 at a workshop), which may resolve the issue for 10,000-20,000 km. A replacement EGR valve costs €150-300 for the part plus 1-2 hours labor. This is a common issue across all PSA 1.6 HDi applications, not specific to the C5.
BSI electrical faults and battery drain
up to €6006 of 8
The central body control module fails to enter sleep mode, draining the battery overnight · more· less
The BSI (Boitier de Servitude Intelligent) manages lights, locks, windows, alarm, and wipers. On C5 units over 8-10 years old, the BSI can start drawing parasitic current because it fails to enter sleep mode. This drains the battery within 2-3 days of parking. Common triggers include a battery change, a flat battery that dropped below 8V, water ingress into the BSI housing, or age-related PCB degradation. In many cases, a BSI reset via diagnostic tool (€50-100) resolves the issue. If the module itself needs repair or cloning, specialist services charge €200-400. A new OEM replacement is rarely needed but costs €400-600 plus coding.
Turbo wastegate actuator failure
up to €1,5007 of 8
Actuator diaphragm cracks or vacuum hoses leak, causing loss of boost and limp mode · more· less
The Garrett GT1544V turbocharger on the DV6 engine uses a vacuum-operated wastegate actuator. The diaphragm inside the actuator can crack over time, or the vacuum hoses can perish, leading to fault code P0299 (turbo boost pressure low). Symptoms include noticeable power loss above 2,500 rpm and potential limp mode. Specialist actuator repair services cost €150-300, while a complete remanufactured turbo runs €400-700 installed. If the turbo internals are also damaged (oil seal leak into exhaust), a full replacement can reach €1,200-1,500 including labor. The turbo parts are shared with Peugeot 307/308 and Ford TDCi models, so availability is good.
Electric window regulator failure
up to €3008 of 8
Window drops or sticks due to cable mechanism failure in the door · more· less
Window regulator failure was the third most commonly reported fault in a C5 X7 owner poll (48 votes, 8% of all responses). The cable-driven mechanism wears out, causing the window to drop into the door or only move a few centimeters. Some owners report failures as early as 5-6 years. Aftermarket regulators are available for €30-50, and swapping in a new mechanism while keeping the original motor is a common DIY fix. A dealer repair with genuine parts runs €200-300 per window. Multiple failures over the car's lifetime are common.
Complex suspension demands specialist care, but rewarding if maintained
The Citroën C5 X7 1.6 HDi can provide reliable service when maintained by someone who understands the Hydractive system. The DV6 engine itself is robust and widely used across the PSA range. However, the hydraulic suspension, well-documented steering rack weakness, and French electrical quirks mean this car demands more attention than a conventionally-suspended competitor. Budget for specialist servicing and carry a spare battery charger.
Service history
Complete Citroën dealer or specialist records essential. LDS fluid changes and sphere replacements should be documented.
Tires
Check tread depth, age (date codes), and uneven wear patterns that could indicate suspension misalignment.
Cold start
Start the engine completely cold. Listen for unusual rattles, turbo whine, or excessive smoke.
Test drive
Minimum 30 minutes including varied road surfaces. Pay attention to ride quality and any suspension warning messages.
Specific for this vehicle
Check suspension ride height and symmetry
The car should sit level and at normal height. If one corner sits low or the car sinks when parked, spheres or the BHI pump need attention. Listen for the suspension pump running excessively at startup.
Inspect underneath for steering rack fluid leaks
Look for hydraulic fluid (LDS is green) around the steering rack area. Even minor weeping indicates the rack seal is failing and full replacement will be needed.
Test all four electric windows through full travel
Open and close each window fully multiple times. Hesitation, grinding, or a window that drops are signs of regulator failure.
+ 3 more checksShow less
Check for depollution system warnings
Drive for 15+ minutes and watch for any depollution fault messages on the dashboard. Ask the seller about EOLYS additive refill history.
Verify BSI electrical function
Test all lights, wipers, indicators, central locking, and parking sensors. Erratic behavior suggests BSI issues. Ask if the battery has been replaced recently.
Check LDS fluid level and color
LDS fluid should be green and at the correct level. Brown or dark fluid indicates contamination and the system needs flushing. Confirm LHM (green mineral fluid) was never used.
Windscreen side trim detachment risk (2008-2009 production)Verify completed
Contact a Citroën dealer with the VIN to verify all recalls have been completed. The Takata airbag recall and brake vacuum pump recall are safety-critical items that must be resolved before purchase.
Warranty Status
Factory warranty (2 years)Expired on all C5 X7 models
Rust perforation warranty (12 years)Expired on 2008-2013 models, may apply to later cars
All C5 X7 models are outside their original 2-year Citroën factory warranty. Third-party warranties are available but many exclude the Hydractive suspension system. Verify suspension and steering rack coverage specifically before purchasing any extended warranty.
