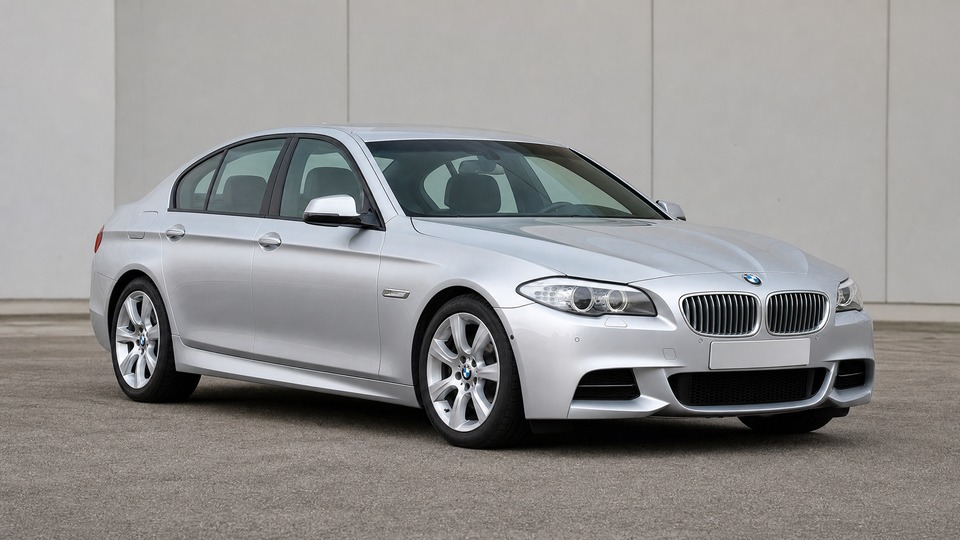

The M550d xDrive was BMW's first M Performance diesel, launched in 2012 with the most powerful production six-cylinder diesel engine of its time. Its N57S tri-turbo inline-six delivered 381 hp and 740 Nm through an 8-speed automatic and standard all-wheel drive, offering near-M5 acceleration with diesel fuel consumption around 7 L/100 km. The F10 saloon was built from March 2012 to October 2016, and the model retains a dedicated following among enthusiasts who value effortless motorway performance.· more· less
Near-M5 pace with diesel economyProven N57 base engine block
Tri-turbo system very complexSpecialist-only maintenance
Buy if: You want supercar-rivalling torque with 6-7 L/100 km consumption and can budget for specialist maintenance on three turbochargers.
Avoid if: You cannot absorb potential turbo system repairs exceeding €5,000, or you need a car that any local garage can service.
Actuators, seals, or bearings in the staged three-turbo system degrade with heat and mileage · more· less
The N57S uses three turbochargers in a staged configuration: two smaller high-pressure variable-geometry turbos and one larger low-pressure unit. They operate sequentially, with the first small turbo activating just off idle and the large turbo coming online around 1,500 rpm. Each turbo has its own actuator (a mix of vacuum and electric control), and these actuators are the most common failure point. Carbon deposits, heat cycling, and vacuum line degradation cause sticking or complete failure. A single turbo actuator repair at a specialist runs €800-1,500. If turbo bearings or seals fail, a single unit replacement costs €1,500-3,000 including labor. A full tri-turbo system overhaul, where multiple units need replacing, can reach €5,000-8,000 at a BMW dealer. Specialists are considerably cheaper, but this engine requires experienced hands. The staged boost system also relies on bypass valves and charge-air routing that add further failure points absent on single-turbo engines.
Timing chain stretch (rear-mounted)
€2,500 - 5,0002 of 7
Chain at the gearbox end stretches over time, requiring transmission removal to replace · more· less
Like the N47 four-cylinder, the N57 has its timing chain at the rear of the engine (gearbox side). This means the 8-speed automatic transmission and xDrive transfer case must be removed to access the chain, guides, and tensioner. The N57 is less prone to premature chain failure than the N47, with most issues appearing between 130,000 and 200,000 km rather than the N47's notorious 60,000-100,000 km window. However, the higher output of the M550d's N57S (381 hp, 740 Nm) places more stress on the drivetrain. Symptoms include a rattle on cold start lasting several seconds while the tensioner re-pressurises. Specialists recommend preventive replacement before 160,000 km and inspecting big-end bearings at the same time, which adds €800-1,200 to the job. Parts alone cost €400-600; the rest is labor due to the rear-mounted access.
EGR cooler internal crack (fire risk)
€1,000 - 2,5003 of 7
Cooling fins inside the EGR cooler develop cracks, leaking coolant into the intake manifold · more· less
This is a known safety issue across the N57 engine family. Over time, the EGR cooler's internal fins can crack, allowing ethylene glycol coolant to seep into the intake manifold. When this coolant mixes with diesel soot at high temperatures, it can form a smouldering mass that melts the plastic intake manifold and, in extreme cases, causes an engine fire. BMW has conducted a major recall campaign affecting approximately 800,000 diesel vehicles worldwide (including N47, N57, and B47 engines), with more than 25 successive campaign codes issued since 2018. The initial replacement parts themselves proved inadequate, leading to repeat campaigns. An optimised cooler unit from a different supplier has been available since 2022. The recall repair is free, but verify with BMW using the VIN that all rounds of the recall have been completed and the latest replacement part has been fitted. If the car falls outside the recall scope or the replacement has failed, independent repair costs €1,000-2,500.
Boost pipe and charge air system degradation
€400 - 1,5004 of 7
Silicone hoses, clamps, and intercooler connections deteriorate from heat cycling and oil exposure · more· less
The tri-turbo system has considerably more charge-air pipework than a single-turbo engine: pipes run from each turbo to the intercooler and back to the intake, with multiple couplings, clamps, and bypass valves. Over time, the factory silicone hoses become oil-soaked from turbo blow-by, lose elasticity, and develop leaks at the clamp points. Symptoms include a hissing sound under load, loss of power, boost-related fault codes, and occasional limp mode. Leaks often appear between 80,000 and 130,000 km. Individual hose replacement is €100-300 per section. A full refresh of all charge-air pipework with upgraded silicone hoses and constant-tension clamps runs €800-1,500. This is one of the most common and preventable issues: replacing degraded hoses early prevents the turbo system from working harder to compensate, extending turbo life.
xDrive transfer case internal wear
€2,000 - 4,5005 of 7
Transfer case internals wear under the M550d's sustained high torque loads · more· less
The M550d's xDrive system must handle 740 Nm of torque continuously, which places more stress on the ATC35L transfer case than in standard 5 Series models. Internal clutch packs and bearings wear over time, particularly in cars driven hard or used for towing. Symptoms include juddering during low-speed manoeuvres, a whining noise from the drivetrain, vibration under acceleration, and occasional drivetrain warning lights. Problems typically emerge between 130,000 and 200,000 km. BMW's recommended transfer case fluid change interval is generous; most specialists recommend 60,000-80,000 km. If caught early, a fluid change (€200-400) can extend life significantly. A complete transfer case replacement at a BMW dealer runs €4,000-5,500. Reconditioned units from specialists cost €2,000-3,000 fitted.
Intake manifold swirl flap degradation
€500 - 5,0006 of 7
Plastic swirl flaps inside the intake manifold wear and can detach, risking engine ingestion · more· less
The N57 uses plastic swirl flaps in the intake manifold that regulate airflow to each cylinder. Engine vibration and carbon buildup cause the flap pivots to wear over time, eventually allowing the flaps to crack or detach. If a fragment enters a cylinder, it can score the bore and damage the piston, leading to catastrophic engine failure. Symptoms of early-stage wear include rough idle, reduced power, and swirl flap fault codes. Preventive removal (blanking) costs €300-600 at a specialist, with no noticeable loss of performance or fuel economy. If the flaps have already broken and caused engine damage, repair costs escalate rapidly to €3,000-5,000 or more for a short-block replacement. Many M550d specialists recommend blanking the swirl flaps as a precaution during any major service.
Piezo injector failure
€400 - 2,5007 of 7
High-precision piezo injectors can fail individually, causing rough running and increased emissions · more· less
The N57S uses six Bosch piezo-electric injectors operating at very high fuel pressures. These are precision components sensitive to fuel quality and carbon contamination. Individual injector failure causes rough running, misfires on the affected cylinder, increased smoke, and fault codes. A single injector replacement costs €300-500 for the part plus €100-200 labor. If multiple injectors fail, which is more common on higher-mileage cars, replacing a set of six runs €1,800-2,500 including coding. Injector failure is typically gradual and appears between 120,000 and 200,000 km. Using high-quality diesel fuel and maintaining the fuel filter service interval helps extend injector life.
Tri-turbo complexity demands specialist care and a serious budget
The N57 base engine block is fundamentally robust and can reach 250,000+ km with disciplined maintenance. However, the tri-turbo system, rear-mounted timing chain, and xDrive drivetrain create multiple expensive failure points that a standard garage cannot address. This is a car that rewards proactive maintenance and specialist knowledge. Boost pipes, turbo actuators, and swirl flaps should all be inspected or addressed preventively. The EGR cooler recall must be verified as completed. Owners who maintain the car rigorously report reliable high-mileage service; those who defer maintenance face compounding failures.
Service history
Complete BMW dealer or specialist records essential. Verify oil change intervals (10,000 km maximum for the N57S, not BMW's longer CBS recommendation).
Tires
Check tread depth, age (date codes), and uneven wear patterns. Staggered sizes wear unevenly with xDrive.
Cold start
Must start engine completely cold. Listen carefully for chain rattle in the first 10-30 seconds.
Test drive
Minimum 30 minutes including sustained highway driving. All three turbo stages must cycle through.
Specific for this vehicle
Listen for turbo whine, whistle, or rattle at all RPM ranges
Drive through the full rev range. Unusual noises at low RPM suggest small turbo issues; noises at mid-range suggest the large turbo or bypass valves.
Check for boost leaks under hard acceleration
Floor the accelerator from 2,000 rpm in third gear. Any hesitation, power drop, or hissing indicates charge-air leaks. Check for fault codes related to boost pressure.
Verify EGR cooler recall completed with BMW using VIN
Multiple recall rounds have been issued since 2018. Confirm the latest replacement part (post-2022 improved cooler) has been fitted, and ask at the same time whether the June 2018 emissions software recall applied to this VIN.
+ 5 more checksShow less
Check coolant level and condition
Low coolant without visible external leaks suggests an EGR cooler internal crack. Any milky or discoloured coolant is a serious warning sign.
Test xDrive at low speed on full steering lock
Juddering, clunking, or vibration during slow-speed turns indicates transfer case wear. Also check for drivetrain warning messages.
Run diagnostic scan for swirl flap and turbo fault codes
A BMW-compatible diagnostic tool (ISTA or equivalent) can reveal stored fault codes for swirl flap position, turbo actuator, and boost pressure faults that may not trigger a dashboard warning.
Inspect charge pipes and intercooler connections
Look for oil residue around boost hose clamps and intercooler fittings. Squeeze silicone hoses to check for softness or cracking.
Check gearbox fluid condition if possible
BMW calls the ZF 8HP fluid a lifetime fill, but at 740 Nm this is optimistic. Dark or burnt-smelling fluid suggests the transmission has never been serviced.
Recalls and Technical Service Bulletins
EGR cooler internal leak with fire risk (N57 diesel engines, multiple campaign rounds since 2018)Critical - verify completed
Emissions-related engine software update for VIN-selected M550d xDrive saloons and Tourings: incorrectly assigned software could prevent the NOx storage catalyst from regenerating as intended, increasing NOx emissions on longer journeys (recall began June 2018)Verify with VIN
Takata airbag inflator replacement (various F10 production years)Verify completed
Contact BMW with the VIN to verify all recalls have been completed. The EGR cooler recall is critical and has had more than 25 successive campaign rounds since 2018. Confirm that the latest improved cooler unit (from the revised supplier, available since 2022) has been fitted, not just an earlier interim replacement. BMW also began an emissions-related software recall in June 2018 for VIN-selected previous-generation M550d xDrive saloons and Tourings, so ask BMW whether this particular VIN was among the affected cars and whether the update was carried out.
Warranty Status
New-car warranty (2 years in Germany, 3 years in the UK)Expired on all M550d F10 models
BMW extended warrantyMarket-specific; BMW Insured Warranty in the UK sets no upper vehicle age limit
Rust perforation warranty (12 years)May still apply on 2014+ models
All M550d F10 models are outside their original new-car warranty, which BMW supplied as two years in Germany and three years in the United Kingdom. Extended cover is market-specific: BMW's German extension programmes are not offered for cars of this age, while BMW Insured Warranty in the UK applies no upper vehicle age limit, although the coverage level and mileage conditions still decide whether a particular car qualifies. Some 2014-2016 models may still be within BMW's 12-year rust perforation warranty. Active recall work (particularly the EGR cooler) remains free regardless of warranty status.
