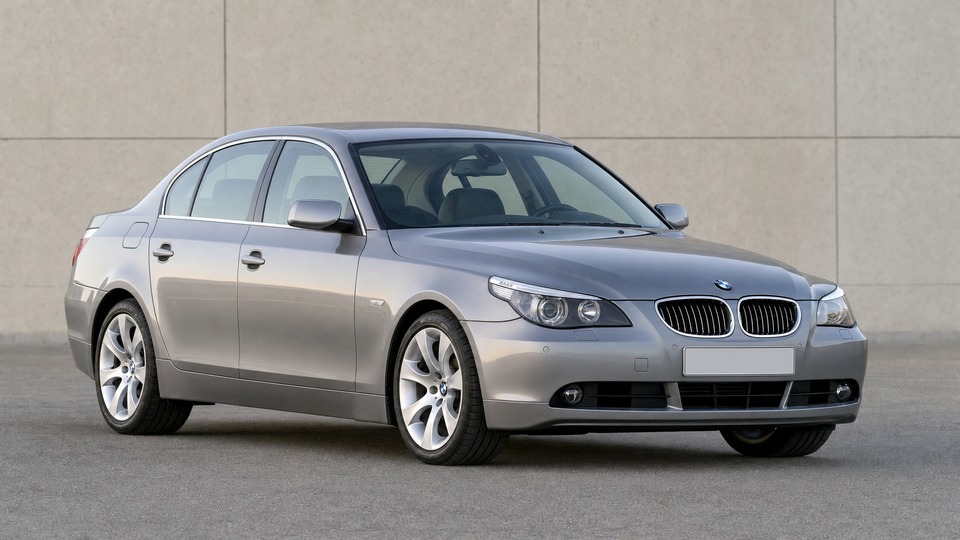

BMW 545i E60

The most notorious N62 V8 issue. The valve stem seals are made from a nitrile compound that hardens and cracks with heat exposure over time. As they fail, engine oil seeps past the seals into the combustion chambers. Symptoms include blue-white smoke on cold start and on overrun (lifting off the throttle at speed), along with steadily increasing oil consumption. Typically becomes noticeable between 80,000 and 120,000 km. BMW considers up to 1 litre per 1,500 km acceptable, but consumption beyond that strongly suggests seal failure. The repair is labor-intensive due to V8 packaging. Specialist shops using on-car valve stem seal tools can complete the job for €1,500-2,000, while BMW dealer quotes can reach €3,000-4,000. Aftermarket AGA tool kits allow experienced DIY owners to do the repair without removing the cylinder heads.

The N62 has a coolant transfer pipe that runs beneath the intake manifold, sealed with O-rings at both ends. These seals can fail as early as 60,000 km, though 80,000-130,000 km is more typical. When they fail, coolant leaks down onto the engine and can reach the starter motor or alternator. A weep hole at the front of the valley pan provides early warning. The factory repair requires near-complete disassembly of the top of the engine (intake manifold, fuel rail, wiring harness), which is why dealer costs reach €3,000-3,500. Aftermarket repair solutions, such as the BimmerFix stent kit, allow a simpler repair for around €1,000-1,500 by sealing the pipe internally without full disassembly. If the leak is ignored, overheating and potential head gasket damage can result.

One of the most common oil leaks on the N62 V8. The alternator is mounted to a bracket bolted directly to the engine block, sealed with a thin gasket that becomes rock-hard and brittle from heat cycles. The gasket itself costs under €10, but labor accounts for nearly all the repair cost because the alternator, associated belts, and surrounding components must be removed to access it. An experienced specialist can complete the job in 2-3 hours, while less experienced shops may quote 7-10 hours. Oil drips down the right side of the engine and can eventually reach the exhaust, causing burning smell and smoke.

The N62 V8 has two valve covers, and both gaskets will eventually fail as the rubber hardens with repeated heat cycles. Oil seeps past the gaskets and drips onto the exhaust manifolds, creating a noticeable burning smell and visible smoke from the engine bay. This typically starts between 80,000 and 120,000 km. The repair involves removing the valve covers, cleaning the mating surfaces, and installing new gaskets along with associated spark plug tube seals and Valvetronic motor gaskets. Parts cost around €75-100 for both sides, with labor running €400-700 depending on the shop. Often done together with the alternator bracket gasket to save on overlapping labor.

The 545i with automatic transmission uses the ZF 6HP26, which is generally robust but has a known weak point in the mechatronic unit. The plastic sealing sleeves that connect the valve body to the transmission case can crack with age, allowing fluid to leak and reducing hydraulic pressure. Solenoids within the valve body can also clog or overheat. Symptoms include harsh shifts, a noticeable bump when braking to a stop, delayed engagement, and eventual 'transmission malfunction' warnings. BMW declared the transmission fluid as lifetime fill, but regular fluid and filter changes every 60,000 km significantly reduce failure risk. A rebuilt valve body with new solenoids, sleeves, and fluid costs €1,000-1,500 at a transmission specialist, while a complete mechatronic replacement can reach €2,000-2,500.

The N62 uses four VANOS solenoids (one per camshaft) to control variable valve timing. Over time, these solenoids develop internal wear and contamination from metallic particles in the oil. Symptoms include rough idle, hesitation during acceleration, and misfires at low RPM. Diagnostic trouble codes typically indicate VANOS errors on one or both banks. A useful diagnostic step is swapping solenoids between banks to see if the fault follows the solenoid. Cleaning can temporarily restore function, but replacement is the long-term fix. Individual solenoids cost €60-100 each, with replacing all four running €300-600 including labor.

The secondary air injection system reduces cold-start emissions by pumping fresh air into the exhaust ports. Over time, carbon deposits build up in the air passages within the cylinder heads, restricting flow and triggering P0491/P0492 fault codes. The air pump itself rarely fails; the issue is almost always clogged passages, cracked plastic hoses under the intake manifold, or sticking diverter valves. Cleaning the passages is labor-intensive because it requires intake manifold removal. Some owners choose to delete the system entirely (where legal) rather than repeatedly cleaning it. Repair costs depend on whether just the valves and hoses need replacing (€400) or if the passages need full cleaning (€600-800).

The E60 was the first 5 Series with iDrive, using the CCC (Car Communication Computer) module for navigation, audio, and vehicle settings. These units commonly fail after 8-12 years as the main processor chip partially separates from the circuit board or internal capacitors degrade. Symptoms include the screen freezing on the BMW logo during startup, random reboots, or complete black screen. A new CCC module from BMW is expensive, but specialist repair services can refurbish the existing unit for €500-700 by resoldering the processor and replacing capacitors. Used units are available for €300-500 but many come from flood-damaged cars. Upgrading to a CIC unit from later E60 models is also possible with coding changes.
