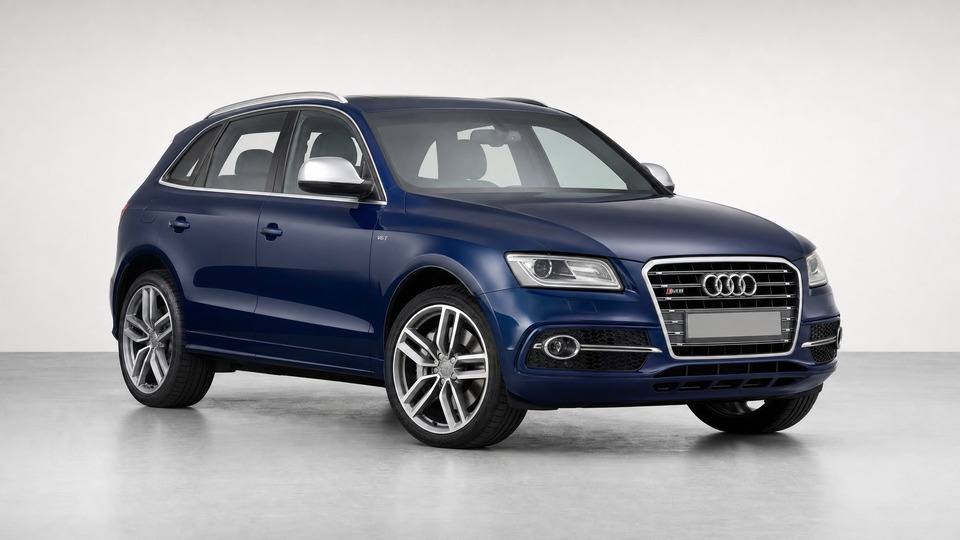

Audi SQ5 3.0 TDI 8R

The 3.0 V6 TDI has a coolant regulating valve buried in the V between the cylinder banks. The spindle seal degrades with heat cycling, allowing coolant to seep into the engine valley. This coolant then attacks the oil cooler gasket directly below, causing secondary oil leaks. Plastic fittings and rubber gaskets in this area become brittle with age. Symptoms include gradual coolant loss without obvious external leaks, oil residue visible in the engine valley, and in severe cases mixing of oil and coolant. Replacing the coolant valve alone costs approximately €200-400, but specialists strongly recommend replacing all associated gaskets, fittings, and the oil cooler gasket simultaneously since the area is already opened up. Total repair typically runs €800-1,800 depending on the extent of deterioration. This is widely reported across 3.0 V6 TDI applications and typically becomes noticeable between 80,000-150,000 km. Cars with regular motorway use that maintain stable operating temperatures tend to develop this issue later.

The 3.0 V6 TDI has two intake manifolds with swirl flaps controlled by actuators via plastic linkage rods. The ball joints connecting these rods wear over time, developing play that the ECU detects as a position deviation. This triggers fault codes P2015 or P2011, causes the check engine light to illuminate, and results in a failed emissions test. Aftermarket repair kits with upgraded metal linkage rods cost €20-40 per side and take 1-2 hours to fit, making this one of the more popular DIY repairs. However, if the swirl flap bearings inside the manifold are also worn, the entire manifold needs replacement at €400-750 per side plus labor. Replacing both manifolds at a specialist runs €1,000-1,500. This is one of the most frequently reported issues on the 3.0 V6 TDI and typically occurs between 80,000 and 140,000 km. Even after a linkage repair, underlying manifold bushing wear may bring the fault code back within 1-2 years.

The SQ5's biturbo system uses two turbochargers in a sequential arrangement: a smaller high-pressure turbo for low-rpm response and a larger unit for top-end power. The wastegate actuator on the smaller turbo operates in a high-temperature environment and can stick or fail, causing limp mode, boost control faults, or audible wastegate rattle. Vacuum hoses in the turbo control circuit can also degrade and cause intermittent boost problems. Replacing the actuator alone at a specialist costs approximately €800-1,200. If the turbo internals are damaged from prolonged operation with a stuck wastegate, a single turbo replacement runs €1,500-2,500. In rare cases where both turbos need attention, costs can reach €3,500-4,000. Regular oil changes with the correct specification (VW 507.00) and allowing the engine to idle briefly before switching off after hard driving help preserve turbo bearing life. Most actuator issues appear between 100,000 and 160,000 km.

The SQ5 uses an SCR system with AdBlue injection to meet emissions standards. The system includes two NOx sensors, an AdBlue injection pump, a heater module, and a level/temperature sensor in the tank. Any of these components can fail, and when they do, the car displays a countdown warning. If not repaired within approximately 2,400 km, the engine will refuse to restart. A single NOx sensor replacement costs €300-500 per sensor including calibration. The AdBlue pump is integrated into the tank assembly and cannot easily be replaced separately. If the pump fails, the entire tank module may need replacement at €1,500-2,500. Heater module or wiring harness corrosion in the tank area is also reported and costs €300-600 to repair. Keeping the AdBlue tank above 25% full and using quality AdBlue reduces crystallization risk. Problems typically emerge between 80,000 and 140,000 km.

The EGR system recirculates exhaust gases to reduce NOx emissions but accumulates carbon buildup over time. The valve is positioned at the rear of the engine near the firewall, making access difficult and labor-intensive. Cars driven primarily in urban traffic are most affected, as the EGR valve never reaches temperatures high enough to self-clean. Symptoms include rough idle, reduced power, check engine light, and gradual coolant loss if the cooler cracks internally. EGR valve cleaning costs €200-350 as a temporary measure. Full valve replacement runs €600-900. If the cooler also needs replacement, the total reaches €1,200-1,800. The SQ5 is somewhat less prone to this than standard Q5 models because owners tend to drive it harder, which helps keep the EGR cleaner. Regular motorway driving at operating temperature significantly reduces carbon buildup. Problems typically emerge after 80,000-130,000 km, primarily on short-trip cars.

Some Q5/SQ5 8R owners with the 3.0 TDI report steering problems that manifest specifically in cold weather, typically below 5 degrees Celsius. Symptoms include a jerky or soggy steering feel, occasional over- or understeer in corners, and a general lack of confidence in the steering response. The hydraulic power steering pump can develop internal wear that only becomes apparent when the fluid is cold and more viscous. In some cases, the steering rack itself develops internal leaks. A pump replacement costs approximately €800-1,200 including labor and fluid flush. A full steering rack replacement runs €2,000-3,500 at a specialist. Not all cars are affected, but those that are tend to develop symptoms between 100,000 and 160,000 km. A cold-weather test drive is essential when inspecting an SQ5.

The DPF needs sustained driving at motorway speeds for active regeneration to burn off accumulated soot. The SQ5 is less prone to this than standard diesel SUVs because owners typically use it for spirited driving and longer journeys. However, if a car has been used primarily for short urban commutes, the DPF can become blocked. Each incomplete regeneration cycle dumps unburnt fuel into the engine oil, raising the oil level and diluting it. A forced regeneration at a workshop costs €150-300. Professional DPF cleaning runs €300-600. Full DPF replacement costs €1,200-2,000 depending on whether aftermarket or OEM. Before buying, check the engine oil level: if it is significantly above the maximum mark, diesel contamination from failed regeneration cycles is likely. Drive the car at motorway speeds for 30+ minutes at least once a week to prevent this.

The 3.0 V6 TDI uses timing chains located at the rear of the engine on the gearbox side. The hydraulic tensioner can weaken over time, allowing the chain to develop slack during the first seconds after a cold start. This produces a metallic rattle that subsides once oil pressure builds. The SQ5 uses the later, improved version of the EA897 engine with updated tensioner designs, making this less common than on earlier Q7 4L models. However, any SQ5 with high mileage and extended oil change intervals is at risk. If the chain jumps teeth, catastrophic valve-to-piston contact occurs. Replacement requires gearbox removal for access to the rear of the engine. A specialist typically charges €1,500-2,500 for the upper chain and tensioner, or €2,500-4,000 for a comprehensive kit including all chains, guides, and tensioners. This issue typically appears beyond 150,000 km with regular oil changes, or earlier if long-life service intervals of 30,000 km were used instead of the recommended 15,000 km schedule.
