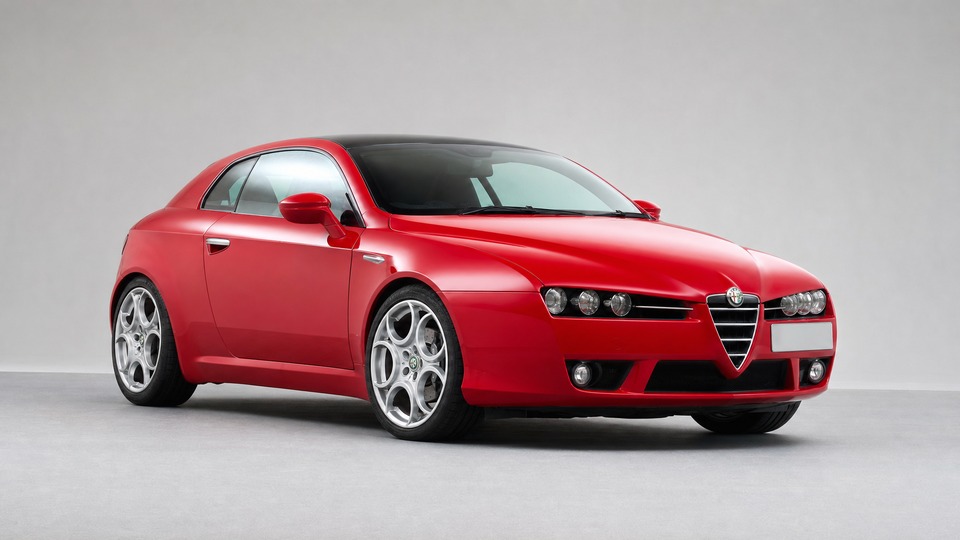

Giugiaro's award-winning coupe brought dramatic styling to the Alfa Romeo lineup. Built on the same 939 platform as the 159 saloon, the Brera is a 2+2 grand tourer that prioritises presence over practicality. The 2.2 JTS is the entry-level petrol, a GM-derived direct-injection four-cylinder producing 185 hp. Available with a 6-speed manual (M32) or Selespeed automated manual, and in rare cases with Q4 all-wheel drive paired to the 3.2 V6.· more· less
Striking Giugiaro coupe designAccessible parts via GM platform
Chain stretches prematurely due to oil sludge in fine galleries, especially with factory-length oil change intervals · more· less
The 2.2 JTS engine (939A5) has fine oil galleries that clog easily with sludge, particularly when oil changes are done at the factory-recommended 30,000 km interval. Once clogged, the oil-fed chain tensioner loses pressure overnight, allowing the chain to stretch. Symptoms start with a P0016 fault code (cam/crank correlation error), cold-start rattle, and difficulty starting. In severe cases the chain can skip teeth, causing valve-to-piston contact on this interference engine. Some owners report chain issues as early as 50,000 km on neglected cars, though 60,000-100,000 km is more typical. A full chain kit with variators costs approximately €300-400 in parts, bringing total repair to €800-1,400 at a specialist. If valve damage has occurred, expect €1,500-2,000. Prevention: change oil every 10,000 km with fully synthetic 5W-40 and have the chain inspected at every service.
Camshaft variator solenoid failure
€150 - 5002 of 9
Variable valve timing solenoids stick from oil sludge, causing rough idle, hesitation, and fault codes · more· less
The intake and exhaust camshaft variator solenoids are highly sensitive to oil quality. Sludge buildup causes the solenoids to stick, triggering P0011 (intake timing), P0014 (exhaust timing), and P0016 (correlation) fault codes. Symptoms include rough idle, poor starting, hesitation, and reduced power. Cleaning the solenoids with solvent may resolve the issue temporarily. Replacement solenoids cost €70-170 each from Alfa, or approximately €40 each using identical GM-sourced parts. Labour is minimal as the solenoids are accessible from the top of the engine. Solenoid failure is often an early warning sign of timing chain stretch, so always investigate further if these codes appear.
M32 gearbox bearing failure (manual)
€600 - 2,0003 of 9
Output shaft bearings wear prematurely, causing whining noise in 5th and 6th gear · more· less
The M32 six-speed manual gearbox is shared with Vauxhall/Opel and other Fiat group models. The 6th gear bearing is the first to fail, producing a whining noise that increases with road speed, most noticeable at motorway speeds. If ignored, the bearing can disintegrate and damage the casing. In-situ bearing replacement at a specialist costs €300-500. A full rebuild with upgraded bearings, seals, and updated end cap runs €600-900. If the casing is damaged, a replacement gearbox costs €1,500-2,000 fitted. The issue typically appears between 80,000-150,000 km. Using quality synthetic gearbox oil and changing it every 60,000 km significantly extends bearing life. The factory treats the M32 oil as lifetime fill, but specialist owners consider regular gearbox oil changes essential.
Front subframe corrosion
€200 - 1,5004 of 9
Factory anti-corrosion coating is inadequate, allowing severe rust especially in climates with road salt · more· less
The Brera front subframe, inherited from the GM platform, has poor factory corrosion protection. The plastic undertray traps moisture against the subframe, accelerating rust formation. Stone chips remove the coating and exposed steel corrodes quickly, particularly in countries using road salt. In severe cases the subframe develops holes and becomes structurally unsafe, leading to TUV/MOT failure. Preventive treatment with wire brushing and wax oil costs €150-200. If the subframe must be removed for professional treatment or powder coating, expect €500-1,500 including labour. Full replacement with a new subframe runs €1,000-1,500 fitted. Cars from southern European climates are typically much less affected. This is the first thing to inspect from underneath any 939-platform car.
Engine hesitation at 2,000 rpm
€0 - 6005 of 9
Factory ECU calibration causes a flat spot and juddering around 1,500-2,000 rpm during pull-away · more· less
This is a well-known and extensively documented characteristic of the 2.2 JTS engine. When pulling away from standstill, the engine hesitates and judders around 1,500-2,000 rpm before delivering power normally above that range. A 67-page thread on alfaowner.com documents the issue and Alfa Romeo's refusal to acknowledge it as a defect. The most effective fix is an ECU remap from a specialist, which typically also adds approximately 15 hp and 20 Nm. Cost is €300-600. Some owners have found that replacing the exhaust backboxes with straight-through pipes also reduces hesitation, and the combination of remap plus exhaust modification is widely reported as the best solution. Before remapping, ensure the inlet manifold is clean, spark plugs are fresh, and the oil separator membrane is intact.
Intake valve carbon deposits
€300 - 1,0006 of 9
Direct injection causes carbon buildup on intake valves, leading to rough running and power loss · more· less
Because the 2.2 JTS uses direct injection, fuel is sprayed directly into the combustion chamber rather than washing over the intake valves. This allows crankcase gases and oil vapour to deposit carbon on the back of the intake valves over time. Symptoms include rough idle, misfires, and gradually decreasing power, typically becoming noticeable after 80,000-100,000 km. Walnut blasting is the most effective cleaning method, costing approximately €300-500 at a specialist. Chemical intake cleaning treatments are less effective but cheaper at around €100-150. Replacing or servicing the oil separator/PCV valve helps slow carbon accumulation. This is a chronic condition of all direct-injection engines of this era, not unique to Alfa Romeo.
Ignition coil pack failure
€100 - 4007 of 9
Coil-on-plug units degrade from heat, especially near cylinder 3, causing misfires · more· less
The individual coil-on-plug units on the 2.2 JTS are not particularly durable. The area around cylinder 3 runs hot, causing coil insulation to break down faster. Symptoms include intermittent misfires, rough running, and a check engine light with P0300-P0304 fault codes. Some owners report replacing 3 of 4 coils before 140,000 km. Individual coils cost €25-50 each (aftermarket) or €80-100 (Bosch OEM). Replacing all four plus spark plugs costs €200-400 at a garage. Changing spark plugs at 40,000 km rather than the factory interval reduces electrical stress on the coils.
Front suspension wishbone and bush wear
€300 - 8008 of 9
Upper and lower wishbone bushes wear rapidly, causing inner front tyre wear and rattling · more· less
The Brera shares the 159's double-wishbone front suspension, which is sophisticated but wears faster than simpler designs. Rapid inner front tyre wear is widespread, sometimes destroying tyres in under 10,000 km. The cause is a combination of aggressive factory toe-out settings and worn wishbone bushes. The upper wishbone bush fails first, producing a rattle over bumps. The lower wishbone inner bush is hollow and flexes, contributing to toe change under braking. Replacement upper wishbones (bushes are not sold separately) cost €200-350 per pair. Lower bush replacement using Powerflex polyurethane bushes costs €200-400. Four-wheel alignment to corrected specifications (zero toe instead of factory toe-out) is essential and costs €80-120. Budget for this repair at least once during ownership.
Power steering rack and pump wear
€200 - 1,2009 of 9
Reservoir valve fault causes fluid frothing, accelerating pump and rack wear on pre-2009 models · more· less
Early Brera models (2005-2008) can suffer from power steering fluid frothing, starving the pump and creating groaning noises at low speed. Switching from the original GI/E fluid to the correct Tutela GI/R green fluid is essential for all 939-platform variants. Reservoir replacement (€50-120) is primarily relevant to diesel and 3.2 V6 variants, where FCA service guidance specifically prescribes it; the 2.2 JTS typically benefits from the fluid change alone. However, if frothing has been ongoing, the pump and rack may already be damaged. A reconditioned steering rack costs €350-500 plus €200-400 labour. A new OEM rack runs €900-1,200 fitted. Power steering pump replacement costs €300-500. Post-2009 cars with the updated reservoir and fluid are less prone to this issue.
Characterful but demanding ownership proposition
The 2.2 JTS engine has a specific and well-documented weakness: premature timing chain stretch caused by oil sludge in its fine galleries. This makes strict oil change discipline (every 10,000 km with fully synthetic 5W-40) essential rather than optional. The M32 gearbox bearings and front subframe corrosion are shared concerns with the 159 saloon. With proactive maintenance and careful pre-purchase inspection, the 2.2 JTS can deliver satisfying ownership. However, it demands more attention and more frequent servicing than its German competitors from the same era.
Pre-Purchase Inspection Checklist
General checks
Service history
Complete Alfa Romeo specialist or dealer records essential. Verify oil changes have been done every 10,000-15,000 km, not at the factory 30,000 km interval.
Tyres
Check tread depth and inner edge wear on the front tyres. Rapid inner wear is extremely common and indicates alignment or wishbone bush issues.
Cold start
Start the engine completely cold. Listen for timing chain rattle in the first 10-30 seconds and note how quickly it settles.
Test drive
Minimum 20 minutes including varied speeds. Check for hesitation at 2,000 rpm, gearbox whining in upper gears, and any warning lights.
Specific for this vehicle
Listen for timing chain rattle on cold start
Start engine completely cold and listen at the front for metallic rattling in the first 30 seconds. Persistent rattle indicates stretched chain. Check for P0016 fault code with OBD scanner.
Inspect front subframe from underneath
Get the car on a ramp, remove the undertray, and examine the subframe welds and box sections for bubbling paint, flaking coating, or rust-through. Severe corrosion is a walk-away issue.
Test M32 gearbox in 5th and 6th gear
Drive at motorway speed and listen for whining noise that increases with road speed. Any whine means bearing wear has begun. Ask when gearbox oil was last changed.
+ 5 more checksShow less
Check oil change history and interval
Ask specifically about oil change frequency. If the owner followed factory 30,000 km intervals, timing chain and solenoid issues are far more likely. Every 10,000 km is the recommended interval.
Assess hesitation during pull-away
Do several standing starts. Mild hesitation is normal on unremapped cars, but severe juddering or stalling suggests additional issues beyond the standard flat spot.
Check front tyre inner edge wear
Run your hand along the inner edge of the front tyres. Excessive feathering or wear indicates worn wishbone bushes and misaligned geometry.
Test power steering at full lock
Turn steering from lock to lock at standstill. Listen for groaning or whining from the pump. Check fluid level and colour: should be green (GI/R), not red (old specification).
Inspect rear tail light clusters for moisture
Look inside the rear light clusters for signs of condensation or water pooling. This is a widespread Brera-specific design weakness.
Contact Alfa Romeo or a Stellantis dealer with the VIN to verify all applicable recalls have been completed. The Brera was produced before comprehensive EU recall databases were established, so a VIN check directly with the manufacturer is the most reliable method.
Warranty Status
Factory warranty (2 years)Expired on all Brera models
Rust perforation warranty (8 years)Expired on all Brera models
Extended warrantyThird-party warranties available; exclusions common for older vehicles
All Alfa Romeo Brera models are well outside their original 2-year factory warranty and 8-year rust perforation warranty. Third-party extended warranties are available but typically exclude pre-existing conditions, timing chain, and gearbox components. Given the age of these cars, a thorough pre-purchase inspection by an Alfa Romeo specialist is more valuable than warranty coverage.
