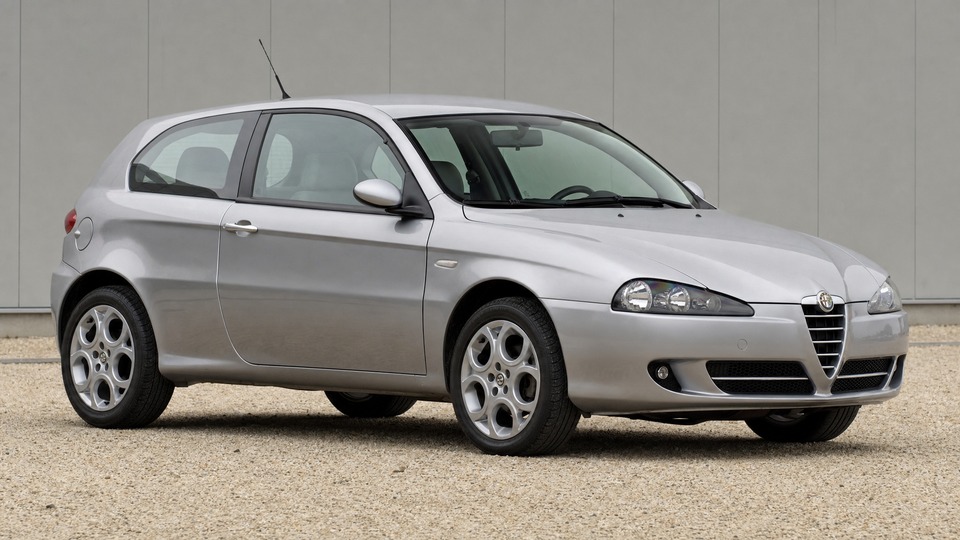

Alfa Romeo 147 1.9 JTD 937

This is the most serious risk on 16v versions of the 1.9 JTD. Two manifold types exist: early 16v cars (2005 to mid-2006) have an aluminium manifold with plastic flaps, where failure causes rough running but limited damage. Cars from mid-2006 onwards have a plastic manifold with stainless steel flaps that, when they break loose, get caught in intake valves causing valve-to-piston contact, cylinder head damage, and potential turbo destruction. Specialist data suggests a bell curve of failures starting around 30,000 km, with most unmodified 16v engines having dropped a flap by 130,000 km. A preventive swirl flap delete costs €300-400 and is widely recommended. If the flaps have already caused engine damage, repair costs range from €2,000 for head and turbo work to €5,000+ for a replacement engine. The 8v engines do not have swirl flaps and are not affected by this issue.

The turbocharger on the 1.9 JTD develops wear from approximately 100,000 km. The turbo actuator tends to stick when the car is driven gently or only on short trips, as carbon deposits build up. Symptoms include black smoke, loss of power, and in some cases limp mode. A common early issue is the boost pipe from the intercooler rubbing on a stud and developing holes (pipe replacement around €60-80). Turbo core rebuild costs €450-650, while full turbo replacement runs €800-1,500 depending on whether a new or reconditioned unit is fitted. Regular spirited driving and quality oil help extend turbo life.

The GM-designed M32 6-speed manual gearbox, fitted to 16v models, has a well-documented bearing problem. The bearings holding the output shafts are simply too small for the loads they handle. The most common symptom is a whining noise in 5th and 6th gear that comes and goes with throttle input. If left unaddressed, the bearing can collapse completely, causing severe internal damage and potentially ejecting metal through the end casing. A bearing rebuild with upgraded components costs €600-900 at a specialist, while more extensive repairs with additional gear/shaft replacement can reach €1,200-1,500. This issue affects all M32-equipped Fiat Group cars, not just the 147. Cars with the 5-speed manual (typically 8v models) are not affected.

The dual mass flywheel is a known wear item on all 1.9 JTD models. Symptoms include judder when pulling away, a rattle at idle (especially noticeable with the clutch pedal released), and vibration through the drivetrain. The DMF costs approximately €250-400 for the part, and the clutch kit adds another €140-250. Since replacing either component requires gearbox removal, it is standard practice to replace both together. Total cost including labour is typically €600-1,200 depending on whether you use an independent specialist or dealer. Some owners opt for a solid flywheel conversion (around €300 for parts), which eliminates the DMF issue but increases drivetrain vibration.

The EGR valve on the 1.9 JTD progressively clogs with carbon deposits and oily residue, particularly on cars used for short trips and city driving. When the valve sticks open, turbo boost pressure bleeds into the exhaust system, resulting in noticeable power loss and rough running. Cleaning the EGR valve costs around €100-200 at a specialist, while replacement runs €250-400. Many owners choose to blank the EGR (€50-100 for a blanking plate), which eliminates the problem but technically makes the car non-compliant with emissions regulations. The EGR deposits also contribute to swirl flap gumming on 16v models, making regular EGR maintenance doubly important on those engines.

Cars built from mid-2006 onwards were fitted with a diesel particulate filter. The DPF clogs when the car is predominantly used for short urban journeys, as the exhaust never reaches the temperature needed for automatic regeneration. The warning light appears when the filter cannot self-clean. Forced regeneration at a dealer costs €100-200, professional DPF cleaning costs €300-500, and replacement is €800-1,200. A faulty ambient air temperature sensor (often mounted in the door mirror) can prevent the regeneration process from initiating even under ideal driving conditions. Earlier 147s without DPF (pre-2006) are not affected.

The 147 left the factory with minimal cavity wax protection, making it susceptible to corrosion. Common rust areas include the front bumper support legs (their lower ends soak in salt water), outer sills, and floor panels under the rear seats. Northern European and salt-climate cars are worst affected. Surface rust progresses quickly and can become structural within a couple of winters if not treated. Repair costs vary enormously from €300 for localised treatment to €2,000+ for significant structural welding. When buying, a thorough underbody inspection on a lift is essential. Preventive cavity wax treatment (€200-400) is recommended for any 147 that has not already had it.

The wire-type window regulators use small plastic guide pieces that wear and break over time, causing the window to grind, move sluggishly, or jam completely. Front windows are most commonly affected. The telltale sign is a grinding noise when operating the window, with the motor still running but the glass not moving properly. A replacement regulator assembly including labour costs approximately €200-400. It is advisable to replace both sides simultaneously if one has failed, as the other is likely to follow soon.
